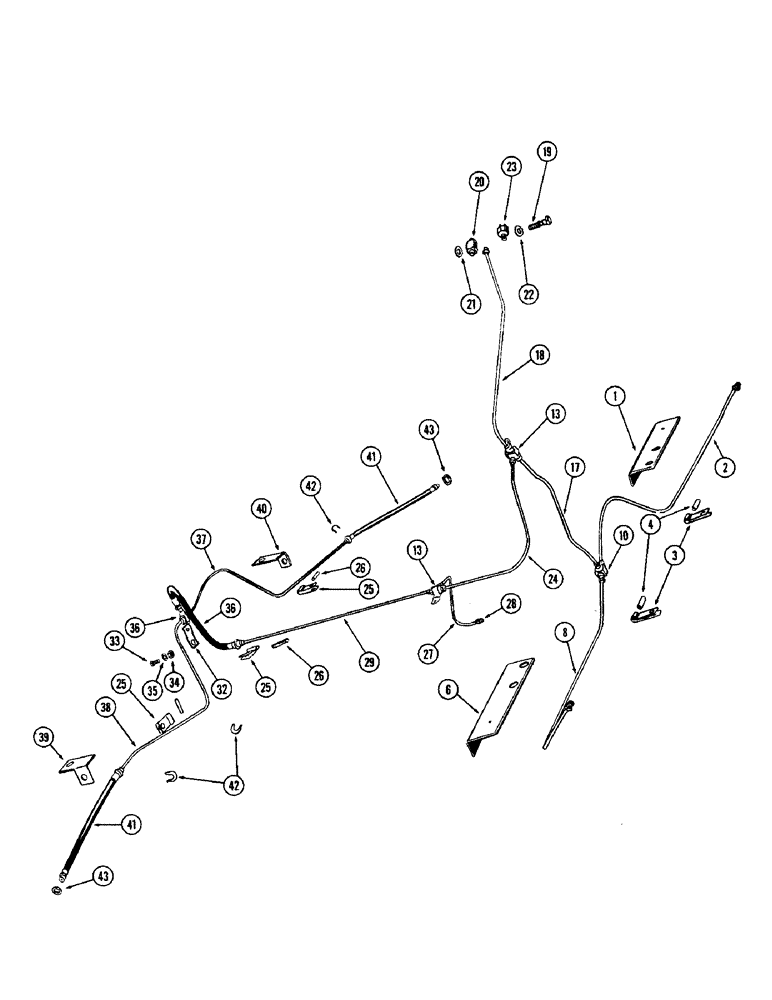

Запчасти Case W10 (118) - HYDRAULIC BRAKE LINES (07) - BRAKES
№
Артикул
Название
Примечание
Количество
1
A12521
GUARD - L.H. front brake line
1шт.
2
A14493
TUBE - L.H. front, Serial Range: cyl.-tee
1шт.
3
A12454
CLIP
- tube to front axle
2шт.
4
A12458
SLEEVE
LOOM - tube clip
2шт.
6
A12520
GUARD - R.H. front brake line
1шт.
8
A14492
TUBE - R.H. front, Serial Range: cyl.-tee
1шт.
10
A12452
FITTING
TEE - front axle brake tubes
1шт.
13
A12451
FITTING
TEE - center & rear
2шт.
17
A14501
TUBE - front axle to channel tee
1шт.
18
A12858
TUBE - channel tee to master cylinder (w/std. hydraulic brakes)
1шт.
18
A18556
TUBE - channel tee to hydrovac cyl. (w/hydrovac brakes)
1шт.
19
A12864
BOLT
-, Serial Range: fitting-cyl.
1шт.
20
A12863
SUN VISOR
BLOCK - fitting, tube to master cyl.
1шт.
21
L114099
WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk
- fitting, small (Copper)
1шт.
22
51200242
SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk
WASHER - fitting, large (Copper)
1шт.
23
A12491
SWITCH
ASSY - brake, stop light
1шт.
24
A14412
TUBE - intermediate, Serial Range: tee-tee
1шт.
25
A12453
CLIP -, Serial Range: tube-channel
2шт.
26
A12458
SLEEVE
LOOM -, Serial Range: tube-clip
2шт.
27
A12858
TUBE - clutch cut-off valve
1шт.
28
222-1012
HYD CONNECTOR,7/16"-24 Inv Fl x 1/8" NPT
CONNECTOR - tube to valve, 1/4 x 1/8"
1шт.
29
A12446
TUBE - rear, Serial Range: tee-hose
1шт.
32
A14495
STRAP - rear tee mounting
1шт.
33
14-828
BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5
- 1/2 x 1-1/2" N.F. hex.
1шт.
34
25-118
NUT,1/2"-20, G5
- 1/2" N.F. hex.
1шт.
35
92-8
LOCK WASHER,1/2"
1шт.
36
A13100
TEE
- rear brake tubes
1шт.
37
A14491
TUBE - L.H. rear brake
1шт.
38
A14490
TUBE - R.H. rear brake
1шт.
39
A55657
BRACKET - R.H. rear brake tube
1шт.
40
A12419
BRACKET - L.H. rear brake tube
1шт.
41
A56478
HYDRAULIC HOSE
HOSE - rear brake cylinder (Replaces A12457)
2шт.
42
A12628
WASHER
- rear hose ("C" type)
2шт.
43
A12643
WASHER
- copper, Serial Range: hose-cylinder
2шт.
Выбрано товаров: 34
