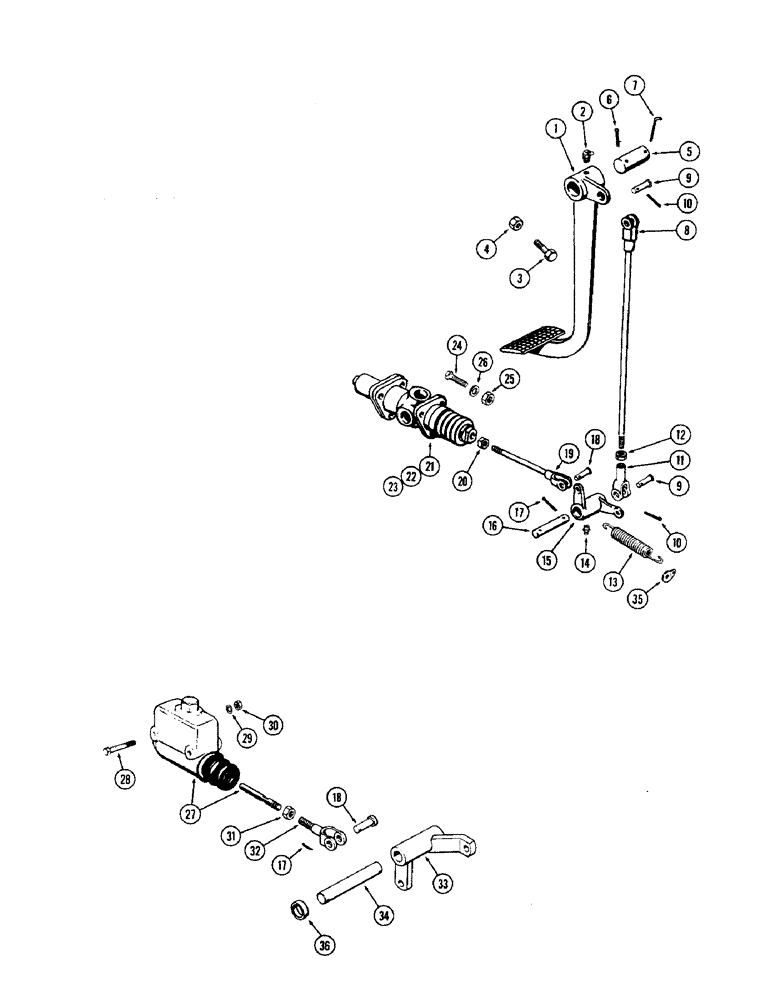

Запчасти Case W10 (112) - BRAKE PEDAL AND CYLINDER (07) - BRAKES

1

A14084

PEDAL - foot, brake

1шт.

2

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

3

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

- pedal adj., 3/8 x 1-1/2" N.F. hex.

1шт.

4

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, 3/8" N.F. hex.

1шт.

5

A12437

PIN - pivot, pedal

1шт.

6

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

1шт.

7

A27275

PIN - lock, pivot pin

1шт.

8

A14414

LINK -, Serial Range: pedal-bellcrank

1шт.

9

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - yoke

2шт.

10

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

11

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - link to bellcrank

1шт.

12

25-118

NUT,1/2"-20, G5

- hex., 1/2" N.F. hex.

1шт.

13

A27473

SPRING

- return, brake pedal

1шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

1шт.

15

A14086

BELLCRANK - (w/std. hydraulic brake)

1шт.

16

A14087

PIN - pivot (w/std. hydraulic brake)

1шт.

17

132-93

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

2шт.

18

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - yoke

1шт.

19

A14415

LINK - valve (w/std. hydraulic brake)

1шт.

20

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

1шт.

21

L10749

BRAKE CYLINDER

VALVE ASSY. - (Std. hydraulic brake loader SN 9803813) Repairs Figure 114

1шт.

22

A18341

VALVE ASSY. - (w/std. hydraulic brake prior to loader SN 9803813) Repairs Figure 114

1шт.

23

A14083

VALVE ASSY. - (w/std. hydraulic brakes 1st production. Order L10749) Repairs Figure 116

1шт.

24

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

- 5/16 x 1-1/4" N.F. hex.

3шт.

25

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

3шт.

26

92-5

LOCK WASHER,5/16"

3шт.

27

A18557

CYLINDER

ASSY. - (w/hydrovac brake) Repairs Figure 116

1шт.

28

13-756

BOLT,Hex, 7/16" - 14 x 3-1/2", Gr 5

2шт.

29

92-7

LOCK WASHER,7/16"

2шт.

30

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex.

2шт.

31

25-157

JAM NUT,Jam, 7/16"-20, G5

- jam, 7/16" N.F. hex.

1шт.

32

A18563

LINK - valve (w/hydrovac brake)

1шт.

33

A18564

BELLCRANK - (w/hydrovac brake)

1шт.

34

A18565

PIN - pivot (w/hydrovac brake)

1шт.

35

A26953

CLIP

- return spring

1шт.

36

A18812

SPACER - bellcrank (w/hydrovac brake)

1шт.
