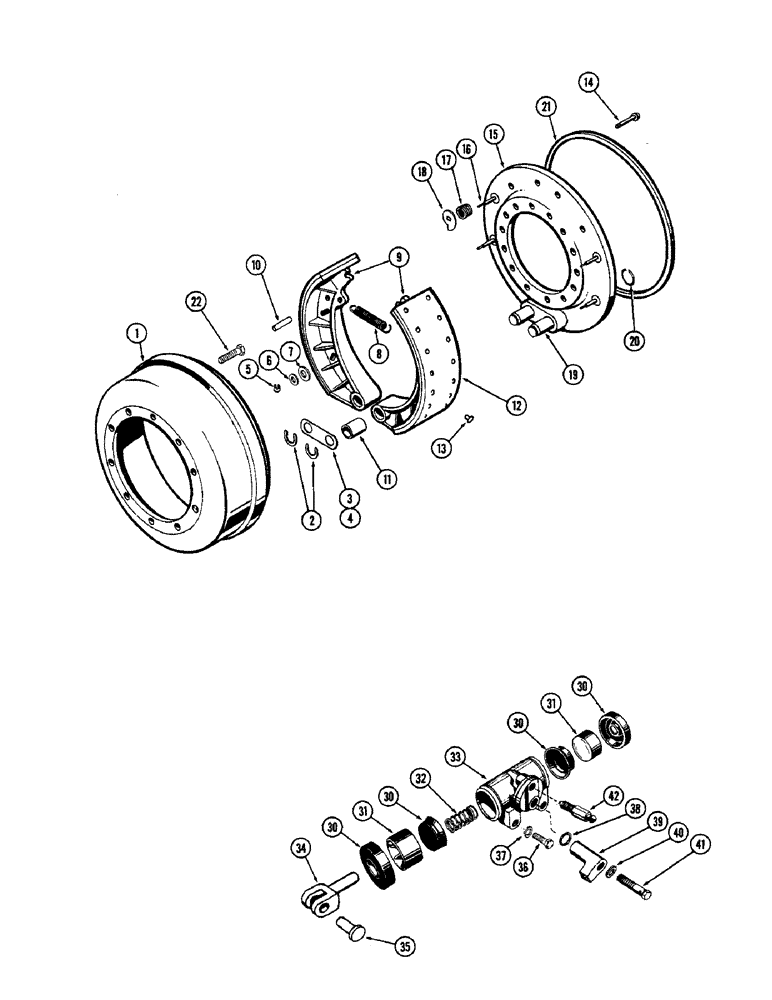

Запчасти Case W10 (110) - FRONT WHEEL BRAKE (07) - BRAKES

1

A14993

DRUM BRAKE ASSY

DRUM - brake, front axle

2шт.

2

A13126

RING, SNAP,22.23mm ID x 33.34mm OD x 2.278mm Thk

"C" WASHER - anchor pin

4шт.

3

A16724

LINK

- anchor pin (Use w/HX6 series axle)

2шт.

4

A15009

ROD

LINK - anchor pin (Use w/HX3 series axle)

2шт.

5

A15005

WASHER

"C" WASHER - guide pin

8шт.

6

A15008

X

WASHER - spring, guide pin

8шт.

7

A15006

WASHER

- guide pin

16шт.

8

A15014

FITTING

SPRING - brake shoe return

2шт.

9

A15017

SHOE

ASSY. - wheel brake, Includes: Ref. 10 - 13

4шт.

10

A15010

PIN

- stop, brake shoe

2шт.

11

A15004

BUSHING

- brake shoe

1шт.

12

A15052

SPARE PART

LINING KIT - brake shoe, Includes: Ref. 13

1шт.

13

A15060

RIVET

- brake lining

64шт.

14

A15968

PIN ASSY.

- brake shoe adjusting

4шт.

15

A15019

X

PLATE ASSY. - brake backing (Exh. stock: Order A16723)

2шт.

15

A16723

LARGE PLATE

PLATE ASSY. - brake backing (Incl. ref. 5, 6 & 7), Includes: Ref. 16 - 21

2шт.

16

A15011

PIN

- guide, brake shoe

2шт.

17

A15013

VALVE SPRING

SPRING - cam adjusting

2шт.

18

A15016

CAM

- brake shoe adjusting

2шт.

19

A15012

PIN

- anchor, brake shoe

2шт.

20

A14997

RING, SNAP

RING - snap, anchor pin

2шт.

21

A15003

SEAL

- brake locking plate

1шт.

22

A14962

BOLT,5/8" x 1 1/2", Gr 8

- mtg., Serial Range: drum-hub

20шт.

A15018

CYLINDER ASSY. - brake, front wheel, Includes: Ref. 30 - 33

2шт.

30

A14994

KIT

REPAIR KIT - brake cylinder (Incl. 2 cups & 2 boots), wheel

1шт.

31

A15000

PISTON ASSY.

PISTON - brake cylinder, wheel

2шт.

32

A14995

SPRING

- piston pressure, brake wheel cylinder

1шт.

33

NSS

NOT SOLD SEPARAT

BODY - brake cylinder (Order A15018), wheel

1шт.

34

A14996

LINK

YOKE ASSY. - cylinder actuator, brake wheel, Includes: Ref. 35

4шт.

35

A14999

PIN - actuator yoke, brake wheel cylinder

1шт.

36

113-220

PREV TORQUE BOLT,Locking, 3/8"-16 x 1 1/4", G5

BOLT - hex. hd., 3/8 x 1-1/8" N.C. (Grade 8), brake wheel cylinder

4шт.

37

92-6

LOCK WASHER,3/8"

brake wheel cylinder 3/8"

4шт.

38

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - connection, brake wheel cylinder

2шт.

39

A12925

FITTING

CONNECTION - cylinder inlet, brake wheel

2шт.

40

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- inlet fitting, brake wheel cylinder

2шт.

41

A12926

BOLT

- cylinder inlet, brake wheel

2шт.

42

A15001

BLEEDER,7/16" - 20 x 2 1/8"

- cylinder bleeder, brake wheel

2шт.
