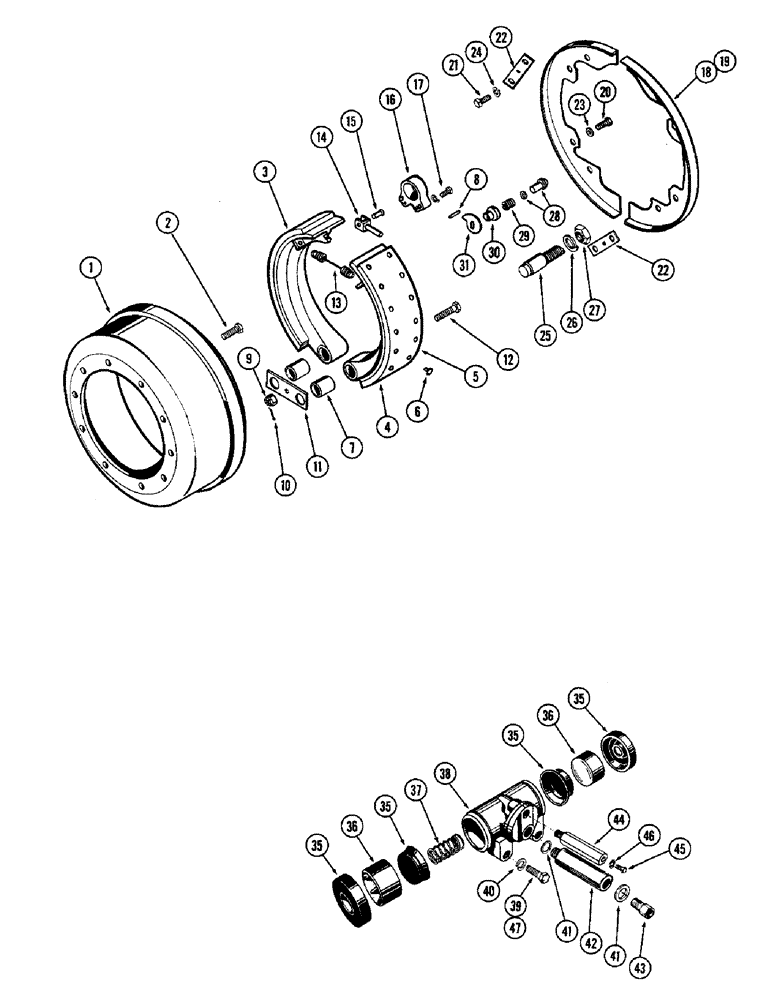

Запчасти Case W10 (108) - REAR WHEEL BRAKE (07) - BRAKES

1

A15045

DRUM

- brake, axle

2шт.

2

A14962

BOLT,5/8" x 1 1/2", Gr 8

- brake, Serial Range: drum-hub

20шт.

3

A15073

SHOE

ASSY. - brake, R.H.

2шт.

4

A15072

BRAKE SHOE

SHOE ASSY. - brake, L.H., Includes: Ref. 5 - 8

2шт.

5

A14998

KIT

- lining, brake shoe, Includes: Ref. 6

1шт.

6

A15060

RIVET

- brake lining

32шт.

7

A15062

BUSHING

- brake shoe

2шт.

8

A15065

PIN - brake cam

2шт.

9

129-225

X

NUT - slotted hex., 1/2" N.F., shear

2шт.

10

132-28

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

2шт.

11

A15064

LINK

- brake shoe

2шт.

12

A15059

BOLT

- brake shoe link

2шт.

13

A15071

SPRING

- brake shoe return

2шт.

14

A14996

LINK

YOKE ASSY. - cylinder actuator, Includes: Ref. 15

4шт.

15

A14999

PIN - yoke

1шт.

16

A15058

ADAPTER

- wheel cylinder

2шт.

17

113-408

X

BOLT - hex. hd., 1/2 x 2" N.C. (Grade 8)

4шт.

18

A15075

SHIELD - brake dust, L.H. front & R.H. rear

2шт.

19

A15074

SHIELD - brake dust, R.H. front & L.H. rear

2шт.

20

13-78

BOLT,Hex, 7/16" - 14 x 1/2", Gr 5, Full Thd

4шт.

21

13-69

BOLT,Hex, 3/8" - 16 x 9/16", Gr 5, Full Thd

12шт.

22

A15067

PLATE - dust shield mounting

4шт.

23

92-7

LOCK WASHER,7/16"

4шт.

24

92-6

LOCK WASHER,3/8"

12шт.

25

A15066

AXLE PIN

PIN - anchor, brake shoe

4шт.

26

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

4шт.

27

A15063

NUT

- brake anchor pin

4шт.

28

A16391

AXLE PIN

PIN ASSY. - brake shoe adjusting

4шт.

29

A15069

VALVE SPRING

SPRING - cam adjusting

4шт.

30

A15061

SPACER

RETAINER - cam spring

4шт.

31

A13201

SHOE

CAM - brke shoe adjusting

4шт.

A15057

CYLINDER

ASSY. - rear wheel brake, Includes: Ref. 35 - 38

2шт.

35

A14994

KIT

REPAIR KIT - wheel cyl. (Incl. 2 cups & 2 boots), brake

1шт.

36

A15000

PISTON ASSY.

PISTON - cylinder, brake wheel

2шт.

37

A15053

SPRING

ASSY. - piston, w/filler, brake wheel cylinder

1шт.

38

NSS

NOT SOLD SEPARAT

BODY - wheel cylinder (Order A15057), brake

1шт.

39

113-222

X

BOLT - hex. hd., 3/8 x 1-3/8" N.C., brake wheel cylinder

4шт.

40

92-6

LOCK WASHER,3/8"

brake wheel cylinder 3/8"

4шт.

41

NLS

NO LONGER SERVICED

- inlet fitting, brake wheel cylinder

4шт.

42

A15054

EXTENSION

- inlet fitting, brake wheel cylinder

2шт.

43

A12989

ADAPTER

FITTING - cylinder inlet, brake wheel

2шт.

44

A15056

SCREW,Bleed, 1/4" - 28 x 2 15/16"

EXTENSION - bleeder screw, brake wheel cylinder

2шт.

45

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

Brake wheel cylinder Hex, 1/4"-28 x 1/2", G5, Full Thd

2шт.

46

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Brake wheel cylinder 1/4"

2шт.

47

166-86

12 PT SCREW,Flg, 1/2" - 13 x 1 1/4", Gr 8

CAP SCREW - 12 pt. ferry, 1/2 x 1-1/4" N.C. (Used on center model cylinders), brake wheel

4шт.
