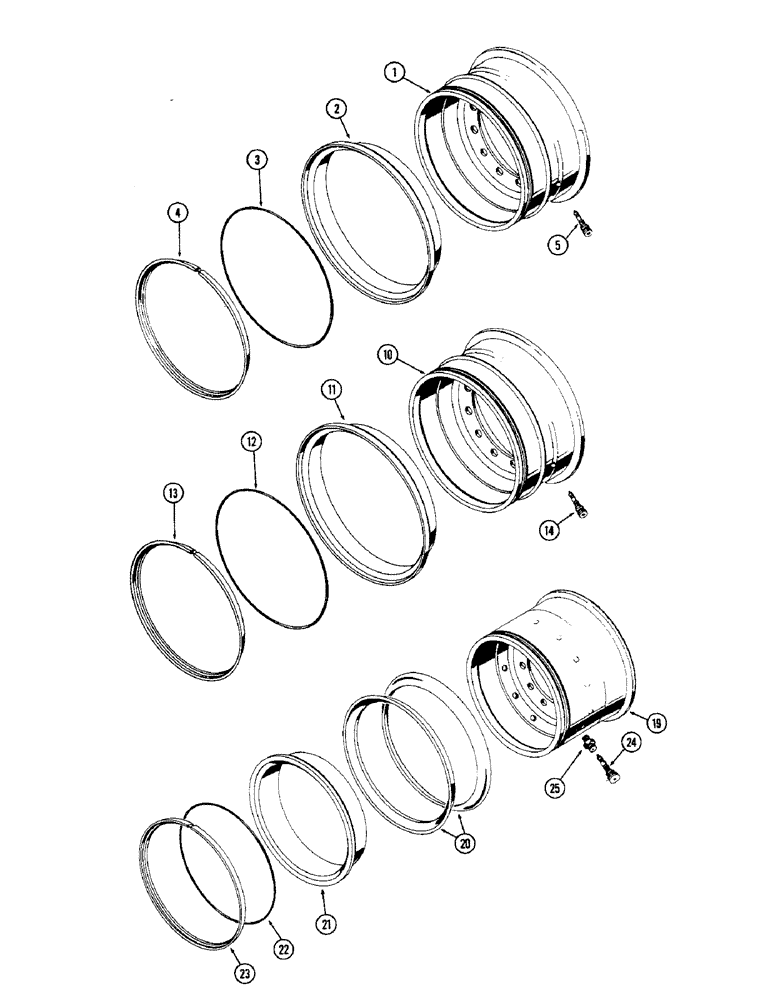

Запчасти Case W10 (111A) - DRIVE WHEELS, FOR 14.00 X 24 TIRE (06) - POWER TRAIN

1

A12524

WHEEL

- drive (For 14.00 x 24 tire)

4шт.

2

A13097

RING

- side

1шт.

3

A13099

O-RING,22 1" ID x 0.25"

"O" RING - lock ring

1шт.

4

A13098

RING

- lock

1шт.

5

A20058

VALVE STEM

- Tubeless tire

4шт.

10

A14202

WHEEL - drive (For 16.00 x 24 tire)

4шт.

11

A14203

RING

- side, drive wheels for 16.00 x 24 tire

1шт.

12

A13099

O-RING,22 1" ID x 0.25"

"O" RING - lock ring, drive wheels for 16.00 x 24 tire

1шт.

13

A14204

RING

- lock, drive wheels for 16.00 x 24 tire

1шт.

14

A20058

VALVE STEM

- Tubeless tire, drive wheels for 16.00 x 24 tire

4шт.

19

A16421

WHEEL - drive (for 20.5 x 25 tire)

4шт.

20

A16422

BACK-UP RING

RING - side, drive wheel - special for 20.5. x 25 tire

2шт.

21

A16423

RING

SEAT - side ring, drive wheel - special for 20.5. x 25 tire

1шт.

22

A16425

O-RING,10.29mm Thk x 573.02mm ID, 65 Duro

"O" RING - lock ring, drive wheel - special for 20.5. x 25 tire

1шт.

23

A16424

RING, LOCKING

RING - lock, drive wheel - special for 20.5. x 25 tire

1шт.

24

A16426

VALVE - tubeless tire, drive wheel - special for 20.5. x 25 tire

4шт.

25

L11406

ADAPTER

- tire valve, drive wheel - special for 20.5. x 25 tire

4шт.
