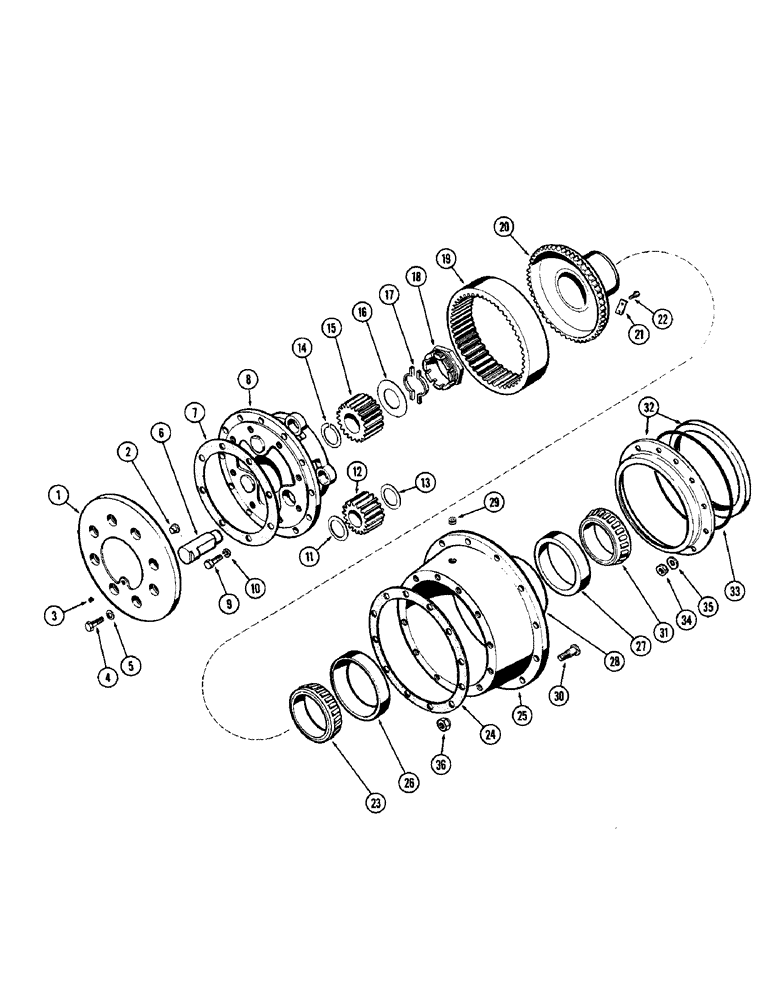

Запчасти Case W10 (106) - REAR AXLE PLANETARY (06) - POWER TRAIN

A14404

AXLE ASSY. - complete, rear steering, Includes: Ref. 1 - 35

1шт.

1

A14973

X

COVER ASSY. - planetary gear spider, Includes: Ref. 2

2шт.

2

A12980

BUTTON

- thrust, universal joint

1шт.

3

221-41

PLUG

- pipe, 1/8" headless slotted

2шт.

4

113-307

X

BOLT - hex. hd., 7/16 x 1-1/8" N.C.

16шт.

5

92-7

LOCK WASHER,7/16"

16шт.

6

A14974

SHAFT - planetary pinion

6шт.

7

A14971

GASKET

- spider cover

2шт.

8

A14979

U-JOINT SPIDER

SPIDER - planetary gear

2шт.

9

26-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 8

- hex. hd., 1/2 x 1-5/8" N.C.

32шт.

10

92-8

LOCK WASHER,1/2"

32шт.

11

A14967

WASHER

- thrust, pinion outer

6шт.

12

A14977

GEAR

PINION - planetary

6шт.

13

A14968

WASHER - thrust, pinion outer

6шт.

14

A14969

RING, SNAP

RING - snap, sun gear retaining

2шт.

15

A14976

GEAR

- sun, planetary

2шт.

16

A14966

WASHER

- sun gear

2шт.

17

A14970

LOCK ASSY

LOCK - hub bearing nut

4шт.

18

A14965

NUT

- retainer, hub bearing

2шт.

19

A14975

GEAR

- ring, planetary

2шт.

20

A14978

HUB

ASSY. - ring gear, w/sleeve

2шт.

21

A14964

LOCK ASSY

LOCK - planetary ring gear

8шт.

22

A30342

SPECIAL BOLT

SCREW - cap, planetary gearlock

16шт.

23

A14960

BEARING

CONE - bearing, hub outer

2шт.

24

A14972

GASKET

-, Serial Range: spider-hub

2шт.

25

A14963

HUB ASSY. - axle wheel, Includes: Ref. 26 and 27

2шт.

26

A14961

BEARING CUP

CUP - cone bearing, hub outer

1шт.

27

A14985

BEARING CUP

CUP - cone bearing, hub inner

1шт.

28

A14980

SLINGER

- oil, wheel hub

2шт.

29

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - pipe, 3/4" countersunk, magnetic

2шт.

30

A13112

STUD

STUD - wheel hub

24шт.

31

A15020

ROLLER BEARING,4" ID x 1.4219"

CONE - bearing, steel hub inner

2шт.

32

A15031

OIL SEAL

RETAINER ASSY. - hub bearing

2шт.

33

A15025

O-RING,8 3" ID x 9" OD x 1/8"

SEAL - steering knuckle to flange

2шт.

34

A15033

LOCK NUT

- steering knuckle flange stud

24шт.

35

A15036

WASHER

- steering knuckle flange stud

24шт.

36

A12522

WHEEL NUT

- wheel hub stud

24шт.
