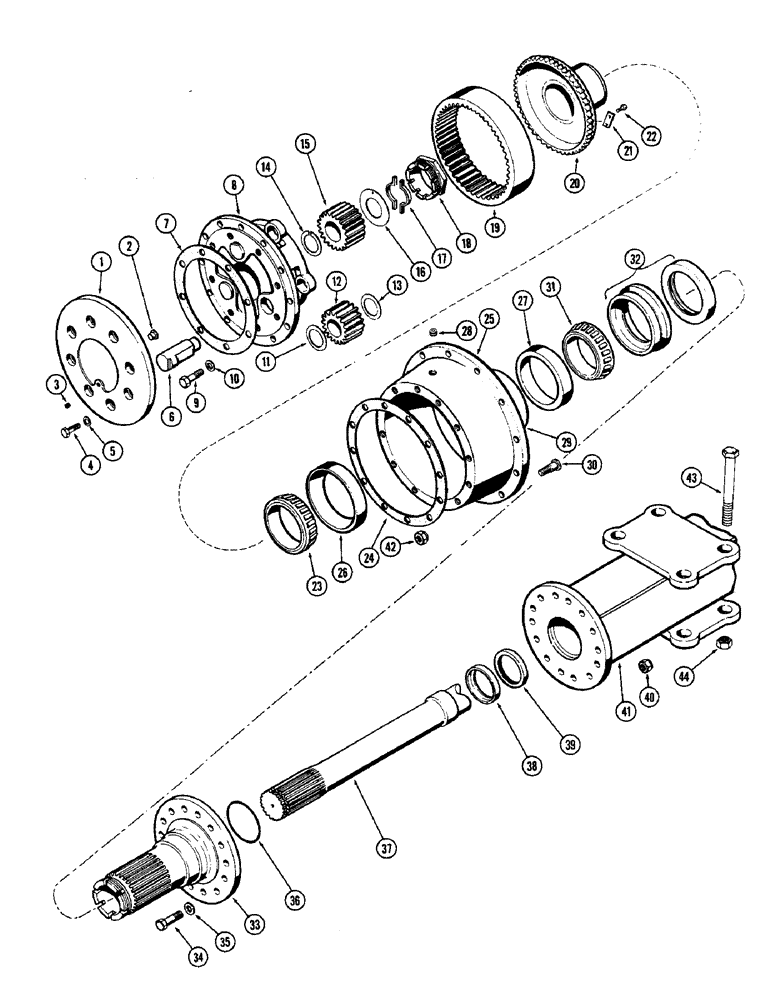

Запчасти Case W10 (102) - FRONT AXLE AND PLANETARY (06) - POWER TRAIN

A14403

AXLE ASSY. - complete, front rigid, Includes: Ref. 1 - 41

1шт.

1

A14973

X

COVER ASSY. - planetary spider, Includes: Ref. 2

2шт.

2

A12980

BUTTON

- thrust, spider cover

1шт.

3

221-41

PLUG

- pipe, 1/8" slotted headless

2шт.

4

113-307

X

BOLT - hex. hd. 7/16 x 1-1/8" N.C.

16шт.

5

92-7

LOCK WASHER,7/16"

16шт.

6

A14974

SHAFT - planetary pinion

6шт.

7

A14971

GASKET

- planetary spider cover

2шт.

8

A14979

U-JOINT SPIDER

SPIDER - planetary gear

2шт.

9

26-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 8

- hex. hd., 1/2 x 1-5/8" N.C. (Grade 8)

32шт.

10

92-8

LOCK WASHER,1/2"

32шт.

11

A14967

WASHER

- thrust, pinion outer

6шт.

12

A14977

GEAR

PINION - planetary (16T)

6шт.

13

A14968

WASHER - thrust, pinion inner

6шт.

14

A14969

RING, SNAP

RING - snap, sun gear retaining

2шт.

15

A14976

GEAR

- sun, planetary (20T)

2шт.

16

A14966

WASHER

- planetary sun gear

2шт.

17

A14970

LOCK ASSY

LOCK - hub bearing nut

4шт.

18

A14965

NUT

- hub bearing retainer

2шт.

19

A14975

GEAR

- ring, planetary (52T)

2шт.

20

A14978

HUB

ASSY. - planetary gear, w/sleeve

2шт.

21

A14964

LOCK ASSY

LOCK - planetary ring gear

8шт.

22

A30342

SPECIAL BOLT

SCREW - cap, planetary gear lock

16шт.

23

A14960

BEARING

CONE - bearing, wheel hub outer

1шт.

24

A14972

GASKET

- spider to wheel hub

2шт.

25

A14963

HUB ASSY. - axle wheel, Includes: Ref. 26 and 27

2шт.

26

A14961

BEARING CUP

CUP - cone bearing, wheel hub outer

1шт.

27

A14985

BEARING CUP

CUP - cone bearing, wheel hub inner

1шт.

28

221-31

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

PLUG - pipe, 1/4" sq. socket hd.

2шт.

29

A14980

SLINGER

SPLINGER - oil, wheel hub

2шт.

30

A13112

STUD

STUD - wheel hub

24шт.

31

A14984

ROLLER BEARING

CONE - bearing, wheel hub inner

1шт.

32

A14989

CAP

RETAINER ASSY. - oil seal, wheel hub w/seal

2шт.

33

A14983

SPINDLE

- wheel bearing

2шт.

34

114-607

BOLT

- hex. hd., 5/8 x 3-1/2 N.F.

28шт.

35

A14991

WASHER - spindle to housing bolt

28шт.

36

A14986

O-RING,5" ID x 1 /8"

SEAL - ring, spindle to housing

2шт.

37

A14992

SHAFT - front axle

2шт.

38

A16655

RETAINER - oil seal, axle shaft

2шт.

39

A14987

OIL SEAL

SEAL - oil, axle shat

2шт.

40

A14990

X

NUT - hex. lock, 5/8"-18 N.F. (Special)

28шт.

41

A15474

HOUSING ASSY. - front axle

1шт.

A15426

STUD - carrier to housing (Long) (Not illust.)

4шт.

A15425

STUD - carrier to housing (Short) (Not illust.)

10шт.

221-7

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

PLUG - pipe, 1-1/4" sq. hd. (Filler) (Not illust.)

1шт.

221-27

DRAIN PLUG,Sq Soc, 1 1/4"-11 1/2, NTPF

PLUG - pipe, 1-1/4" sq. socket hd. (Drain) (Not illust.)

1шт.

A12928

BREATHER

ASSY. - axle housing (Not illust.)

3шт.

42

A12522

WHEEL NUT

- wheel stud.

24шт.

43

116-703

BOLT,Hex, 3/4" - 16 x 9-1/2", Gr 8

Hex, 3/4"-16 x 9 1/2", G8

8шт.

44

131-186

LOCK NUT,3/4"-16, GB

NUT - hex., 3/4" N.F., ESNA

8шт.
