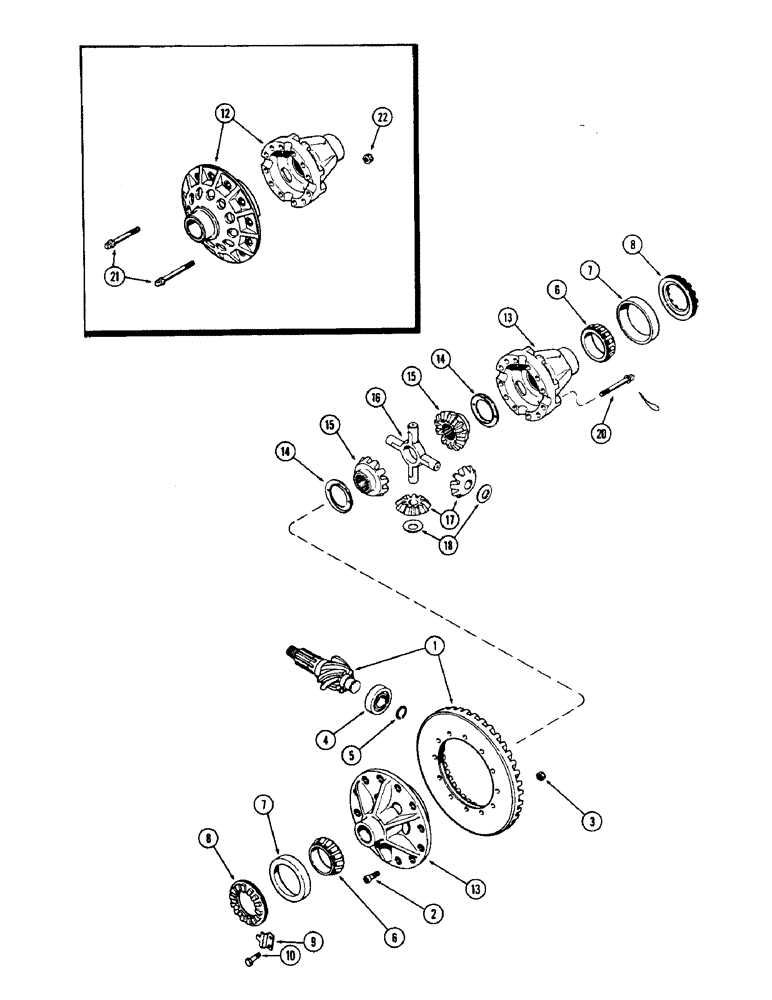

Запчасти Case W10 (098) - DIFFERENTIAL, FRONT AND REAR AXLE (06) - POWER TRAIN

1

L34008

GEAR SET

GEAR ASSY. - ring (Includes matched pinion), Includes: Ref. 2 and 3

2шт.

2

A16437

BOLT

- ring gear

12шт.

3

129-282

SLOTTED NUT

- slotted, 1/2" N.F. hex. (Gr. 8)

12шт.

4

A19892

ROLLER BEARING,1.378 mm ID x 2.8346 mm OD

BEARING - pinion (Late production Hyatt #U-1207TM-15)

2шт.

4

A12947

ROLLER BEARING

BEARING - pinion (Early production Hyatt #UC-1306-TAM)

2шт.

5

A15442

LOCK

RING - snap, bearing (Late production)

2шт.

5

A13140

RING - snap, bearing (Early production)

2шт.

6

A12944

ROLLER BEARING,2.8125" ID x 1.1875"

CONE - bearing, case assy.

4шт.

7

A12946

BEARING CUP

CUP - bearing, case assy.

4шт.

8

A12942

GASKET

RING - bearing adjusting

4шт.

9

A13196

LOCK - adjusting ring (Early production, see ref. 2, figure 100 for late production)

4шт.

10

A12939

BOLT - adj. ring lock (Early production)

4шт.

12

A12973

X

CASE ASSY. - differential (Order L30670 ref. 13), Includes: Ref. 14 - 18

2шт.

13

L30670

DIFFERENTIAL

CASE ASSY. - differential (Replaces A12973 when stock is exhausted), Includes: Ref. 14 - 18

2шт.

14

A12979

WASHER

- thrust, side gear

2шт.

15

A12978

GEAR

- side, differential

2шт.

16

A12974

U-JOINT SPIDER

SPIDER - pinion gears

1шт.

17

A12975

GEAR

PINION - differential

4шт.

18

A12976

WASHER

- thrust, pinion

4шт.

20

L30667

BOLT

- short, case halves (See ref. 21)

4шт.

20

L30668

SCREW

BOLT - long, case halves (See ref. 21)

8шт.

21

A13114

BOLT - short, case halves (For A12973 w/nut)

4шт.

21

A13125

BOLT (SPREADER)

BOLT - long, case halves (For A12973 w/nut)

8шт.

22

129-282

SLOTTED NUT

- slotted, 1/2" N.F. (Gr. 8) (For A12973)

12шт.
