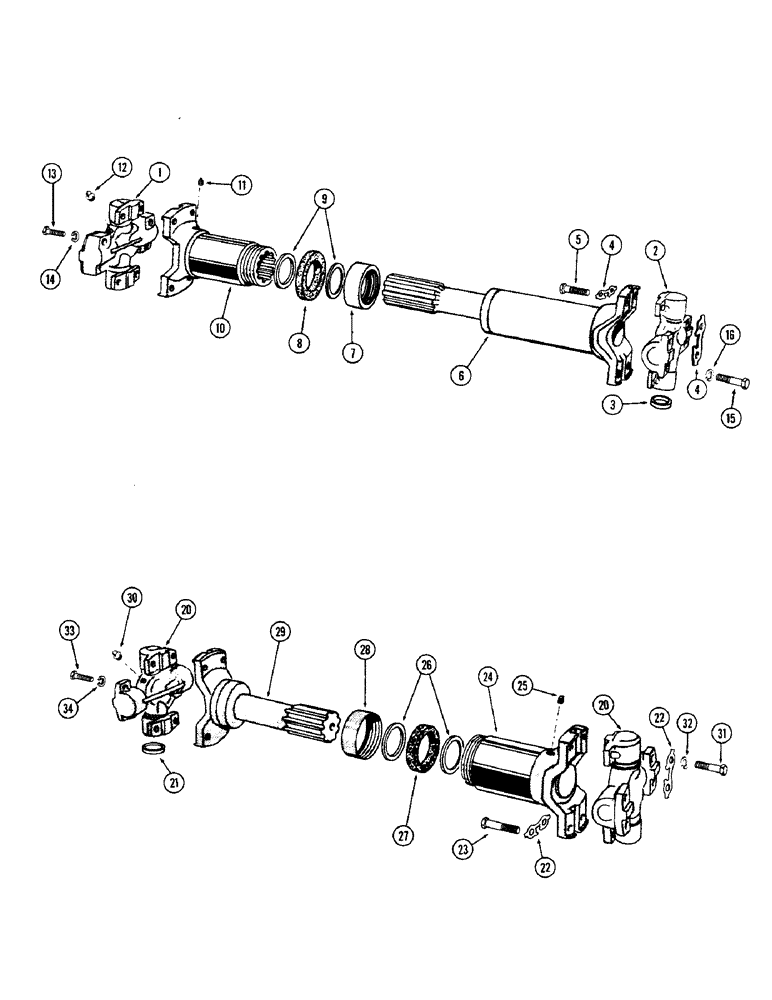

Запчасти Case W10 (096) - FRONT AXLE DRIVE SHAFT (06) - POWER TRAIN

A12002

SHAFT ASSY. - drive, front axle, Includes: Ref. 1 - 12

1шт.

1

A12878

KIT

- spider, transmission end

1шт.

2

A12877

KIT

- spider, axle end, Includes: Ref. 3 - 5

1шт.

3

A12871

WASHER - cork

3шт.

4

A12869

LARGE PLATE

PLATE - lock, cap screw

4шт.

5

A12870

BOLT,Hex, 7/16" - 20 x 1 1/16"

SCREW - cap, univ. joint

8шт.

6

A12872

TUBE ASSY. - drive shaft, axle end

1шт.

7

A12867

CAP

RETAINER - felt washer, slip yoke

1шт.

8

A12873

SEAL

WASHER - felt, slip yoke

1шт.

9

A12868

WASHER

- retainer, felt washer

2шт.

10

A12874

YOKE

- slip, transmission end

1шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

1шт.

12

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

2шт.

13

14-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

- trans. yoke, 1/2 x 2-1/2" N.F. hex.

4шт.

14

92-8

LOCK WASHER,1/2"

4шт.

15

14-720

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5, Full Thd

- axle yoke, 7/16 x 1-1/4" N.F. hex.

4шт.

16

92-7

LOCK WASHER,7/16"

4шт.

A12004

SHAFT ASSY. - drive, rear axle, Includes: Ref. 20 - 30

1шт.

20

A12877

KIT

- spider, rear axle drive shaft, Includes: Ref. 21 - 23

2шт.

21

A12871

WASHER - cork, bearing, rear axle drive shaft

8шт.

22

A12869

LARGE PLATE

PLATE - lock, cap screw, rear axle drive shaft

4шт.

23

A12870

BOLT,Hex, 7/16" - 20 x 1 1/16"

SCREW - cap, univ. joint, rear axle drive shaft

8шт.

24

A12875

YOKE - slip, trans. end, rear axle drive shaft

1шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str., rear axle drive shaft

1шт.

26

A12868

WASHER

- retainer, felt washer, rear axle drive shaft

2шт.

27

A12873

SEAL

WASHER - felt, slip yoke, rear axle drive shaft

1шт.

28

A12867

CAP

RETAINER - felt washer, slip yoke, rear axle drive shaft

1шт.

29

A12876

TUBE ASSY. - drive shaft, axle end, rear

1шт.

30

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, Rear axle drive shaft 1/4"-28 NPT x .54" lg

2шт.

31

14-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

- trans. end, 1/2 x 2-1/2" N.F. hex., rear axle drive shaft

4шт.

32

92-8

LOCK WASHER,1/2"

rear axle drive shaft 1/2"

4шт.

33

14-720

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5, Full Thd

- axle end, 7/16 x 1-1/4" N.F. hex., rear drive shaft

8шт.

34

92-7

LOCK WASHER,7/16"

rear axle drive shaft 7/16"

8шт.
