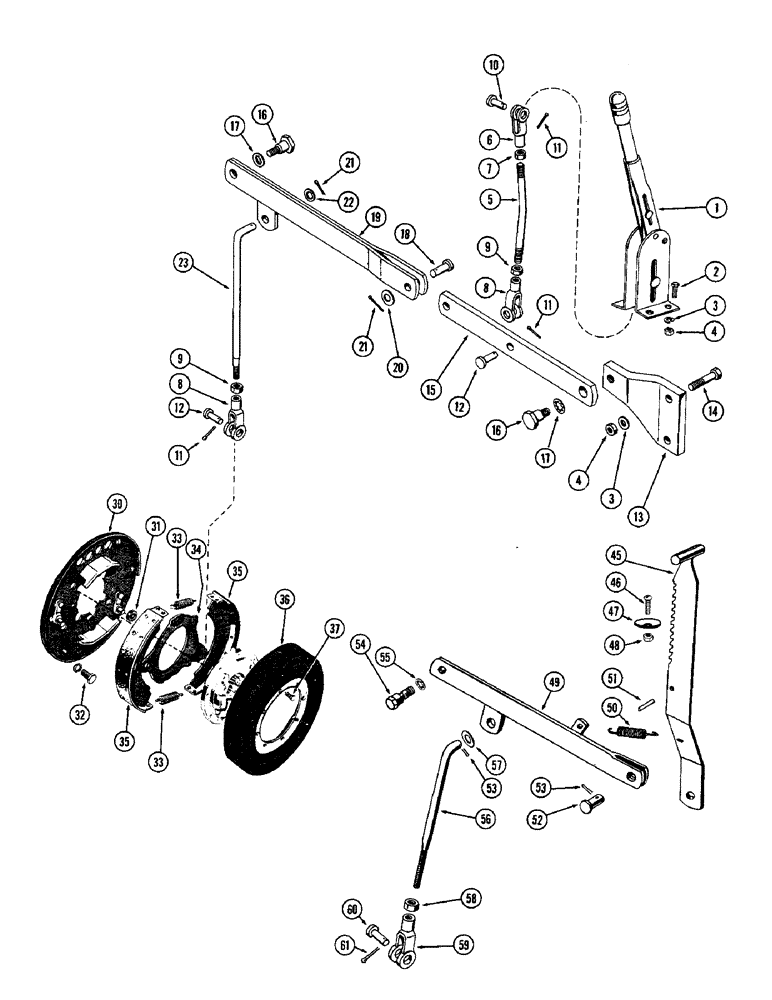

Запчасти Case W10 (092) - PARKING BRAKE OVER CENTER LEVEL (06) - POWER TRAIN

1

A16533

LEVER ASSY. - over-center, parking brake

1шт.

2

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

3

92-6

LOCK WASHER,3/8"

6шт.

4

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

6шт.

5

A16613

ROD - control, upper

1шт.

6

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - rod to over-center lever

1шт.

7

25-155

JAM NUT,Jam, 5/16"-24, G5

- jam, 5/16" N.F. hex.

1шт.

8

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - rod to front lever

2шт.

9

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, 3/8" N.F. hex.

2шт.

10

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , to lever 3/8" x 1.060"

1шт.

11

132-25

COTTER PIN,3/32" x 5/8"

PIN - cotter, 5/32 x 5/8"

3шт.

12

141-5

CLEVIS PIN,7/16" x 1.190"

PIN - yoke to front lever

1шт.

13

A16615

BRACKET - lever pivot

1шт.

14

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- bracket, 3/8 x 1-1/2" N.C. hex. hd.

2шт.

15

A16614

LEVER - front control

1шт.

16

A14265

STUD

- pivot, lever

2шт.

17

193-64

WASHER - lock, 1/2" int. Shakeproof

2шт.

18

141-5

CLEVIS PIN,7/16" x 1.190"

PIN - front to rear level

1шт.

19

A16611

LEVER - rear control

1шт.

20

195-29

WASHER,7/16"

- plain, SAE 7/16"

1шт.

21

132-46

COTTER PIN,1/8" x 3/4"

PIN - cotter, 3/32 x 5/8"

2шт.

22

195-33

WASHER,1/2"

- plain, SAE 1/2"

1шт.

23

A14266

ROD - lower control

1шт.

30

A15974

PLATE ASSY. - backing, parking brake

1шт.

31

A16642

WASHER

ROLLER - cam lever, parking brake

1шт.

32

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

Parking brake Hex, 5/8"-11 x 1 1/4", G5, Full Thd

3шт.

33

A12778

SPRING

- return, brake shoe, parking brake

2шт.

34

A12779

LEVER

- cam, parking brake

1шт.

35

A12780

BRAKE SHOE

SHOE ASSY. - (Set of 2), parking brake

1шт.

36

A12777

DRUM - brake, parking brake

1шт.

37

14-614

SCREW,Hex, 3/8" - 24 x 7/8", Gr 5

BOLT - 3/8 x 3/4" N.F. hex. hd., parking brake

8шт.

45

A14465

HANDLE - ratchet brake, parking brake

1шт.

46

76-612

SCREW - mach., 3/8 x 3/4" N.F. rd. hd., parking brake ratchet type lever

1шт.

47

A27698

GASKET

PAWL - handle, parking brake ratchet type lever

1шт.

48

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, 3/8" N.F. hex., parking brake ratchet type lever

1шт.

49

A14260

LEVER - brake control rod, parking brake ratchet type lever

1шт.

50

A27688

VALVE SPRING

SPRING - return, parking brake ratchet type lever

1шт.

51

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, , Parking brake ratchet type lever 1/4" x 1", Slotted

1шт.

52

A12470

PIN

- pivot, ratchet handle, parking brake ratchet type lever

1шт.

53

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), , Parking brake ratchet type lever 1/8" x 3/4"

2шт.

54

A14265

STUD

- pivot, control lever, parking brake ratchet type lever

1шт.

55

193-64

WASHER - lock, 1/2" int. Shakeproof, parking brake ratchet type lever

1шт.

56

A14467

ROD - lower, lever to brake, parking ratchet type lever

1шт.

57

195-33

WASHER,1/2"

- plain, SAE, parking brake ratchet type lever 1/2"

1шт.

58

25-116

NUT,Hex, 3/8"-24, G5

- jam, 3/8" N.F. hex. 1, parking brake ratchet type lever

1шт.

59

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - rod to brake, parking ratchet type lever

1шт.

60

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Parking brake ratchet type lever 3/8" x 1.060"

1шт.

61

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), , Parking brake ratchet type lever 3/32" x 5/8"

1шт.
