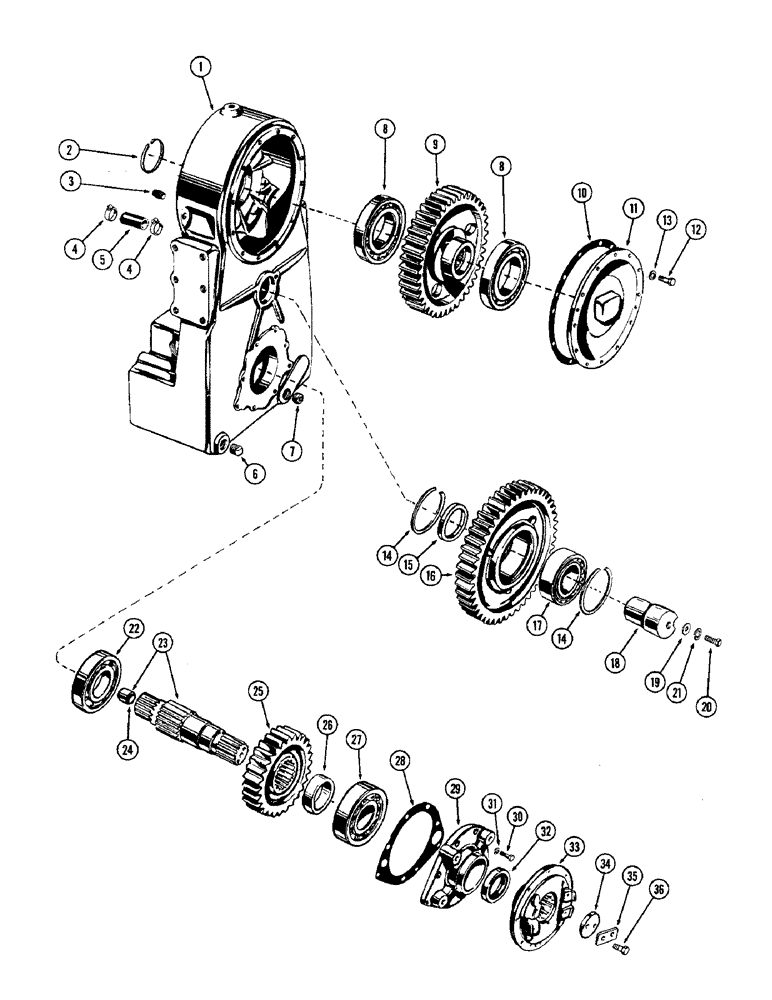

Запчасти Case W10 (088) - TRANSFER HOUSING AND GEARS, USED PRIOR TO TRANS. SER. NO. 23080 (06) - POWER TRAIN

1

A12812

X

HOUSING - transfer gear (No longer furnished. Order ref. 1, 28 and 29 from Figure 89A and ref. 20, 24, 29, 30, 32, 33, 34, and 35 from Figure 90)

1шт.

2

A12730

RING

- seal, hook type

1шт.

3

A16979

NIPPLE, LUBE

NIPPLE - oil drain

1шт.

4

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4"

2шт.

5

A12756

HOSE ASSY.

HOSE - drain tube

1шт.

6

221-5

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - pipe, 3/4" sq. hd.

1шт.

7

221-1026

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - pipe, 1" socket

1шт.

8

A12655

BEARING

- ball, drive gear (N.D. 3216XRIA)

2шт.

9

A12786

GEAR - drive, output

1шт.

10

A12723

GASKET

- drive gear cover

1шт.

11

A12722

COVER - drive gear

1шт.

12

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

12шт.

13

92-6

LOCK WASHER,3/8"

12шт.

14

A12668

RING, SNAP

RING - snap, idler gear

2шт.

15

A12813

SPACER - idler gear

1шт.

16

A12768

X

GEAR - idler, output

1шт.

17

A12839

BEARING - roller, idler gear (Hyart A25213-Z)

1шт.

18

A12814

SPINDLE - idler gear

1шт.

19

A12810

WASHER - spindle retainer

1шт.

20

13-714

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5

- hex. hd., 7/16" x 7/8" N.C.

1шт.

21

92-7

LOCK WASHER,7/16"

1шт.

22

40003

BEARING

- ball, output shaft (N.D. 3311XRIA)

1шт.

23

A12815

SHAFT ASSY. - front output, Includes: Ref. 24

1шт.

24

A12702

BUSHING - output shaft

1шт.

25

A12787

GEAR - driven, output

1шт.

26

A12825

SPACER - driven gear

1шт.

27

A12656

BALL BEARING,2.3622" ID x 5.1181" OD x 1.2205"

BEARING - ball, driven gear (N.D. 3312XRIA)

1шт.

28

A12734

GASKET - bearing retainer

1шт.

29

A12795

RETAINER - bearing

1шт.

30

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- hex. hd., 3/8 x 1-3/8" N.C.

8шт.

31

92-6

LOCK WASHER,3/8"

8шт.

32

A12675

GASKET

SEAL - oil, bearing retainer

1шт.

33

A12838

FLANGE - output shaft

1шт.

34

A12717

WASHER

- flange retainer

1шт.

35

A12736

LOCKING PLATE

- flange locking

1шт.

36

14-618

SCREW,Hex, 3/8" - 24 x 1 1/8", Gr 5

BOLT - hex. hd., 3/8 x 1-1/8" N.F.

1шт.
