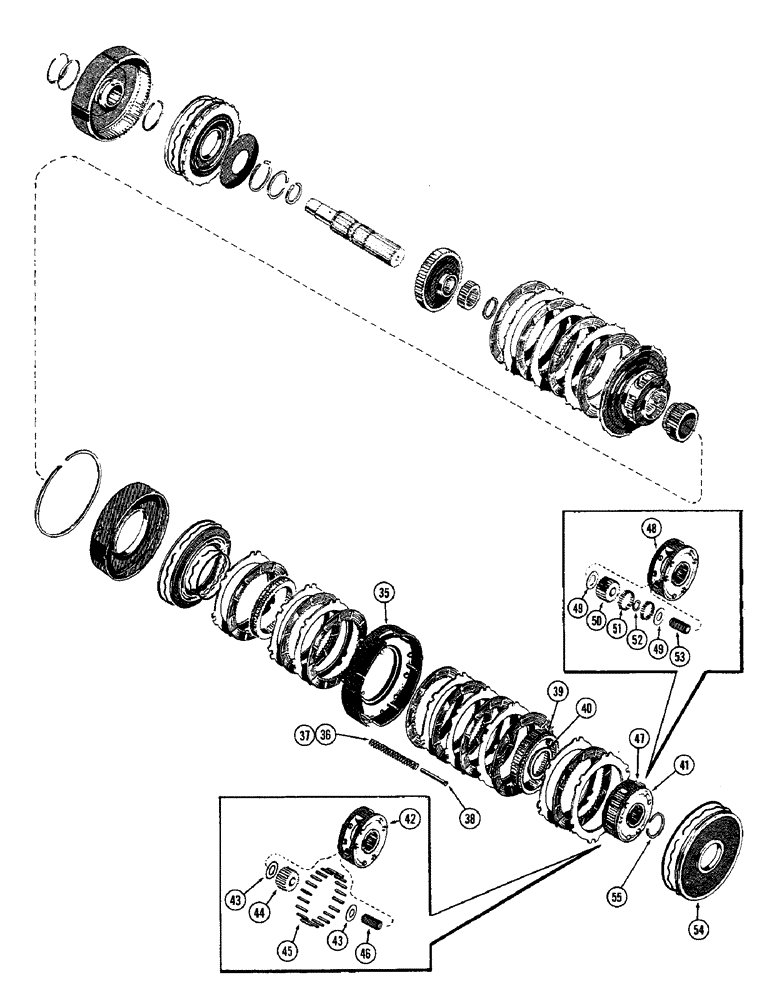

Запчасти Case W10 (085A) - INTER. - HI-LO PLANETARY CLUTCH (06) - POWER TRAIN

35

A13214

ANCHOR

- high and low range

1шт.

36

A55806

SPRING

- piston return (Trans. SN 39647 & after)

12шт.

37

A16532

X

SPRING - piston return (Prior trans. S.N. 39647) Order A55806

1шт.

38

A12837

PIN - spring guide

12шт.

39

A12834

GEAR

- ring, low range

1шт.

40

A12803

WASHER - thrust, low range planetary

1шт.

41

A40025

BEARING

CARRIER ASSY. - low range planetary (Trans. S.N. 37399 and after), Includes: Ref. 42 - 46

1шт.

42

NSS

NOT SOLD SEPARAT

CARRIER - planetary (Order A40025)

1шт.

43

A40027

WASHER

- thrust, planetary pinion

12шт.

44

A40028

PINION - planetary (Matched set of 6)

1шт.

45

A12659

NEEDLE

ROLLER - pinion, planetary

96шт.

46

A40026

PIN - pinion, planetary

6шт.

47

A40025

BEARING

CARRIER ASSY. - low range planetary (Prior transmission S.N. 37339), Includes: Ref. 48 - 53

1шт.

48

NSS

NOT SOLD SEPARAT

CARRIER - planetary (Order A40025)

1шт.

49

A12681

WASHER

- thrust, planetary pinion

12шт.

50

A16370

PINION - planetary (Matched set of 6)

1шт.

51

A12727

ROLLER - planetary pinion

240шт.

52

A12750

SPACER - pinion

1шт.

53

A12707

PIN - planetary pinion

6шт.

54

A12798

PISTON - low range clutch

1шт.

55

A12677

RING, SNAP

RING - snap, low range planetary

1шт.
