(W10) - CASE UNIT LOADER (PRIOR TO S/N 8229367) (1/59-12/63)
/
(06) - POWER TRAIN
/

(081A) - TRANSMISSION CONTROL VALVE, 1ST USED TRANS. SN 39647

Запчасти Case W10 (081A) - TRANSMISSION CONTROL VALVE, 1ST USED TRANS. SN 39647 (06) - POWER TRAIN

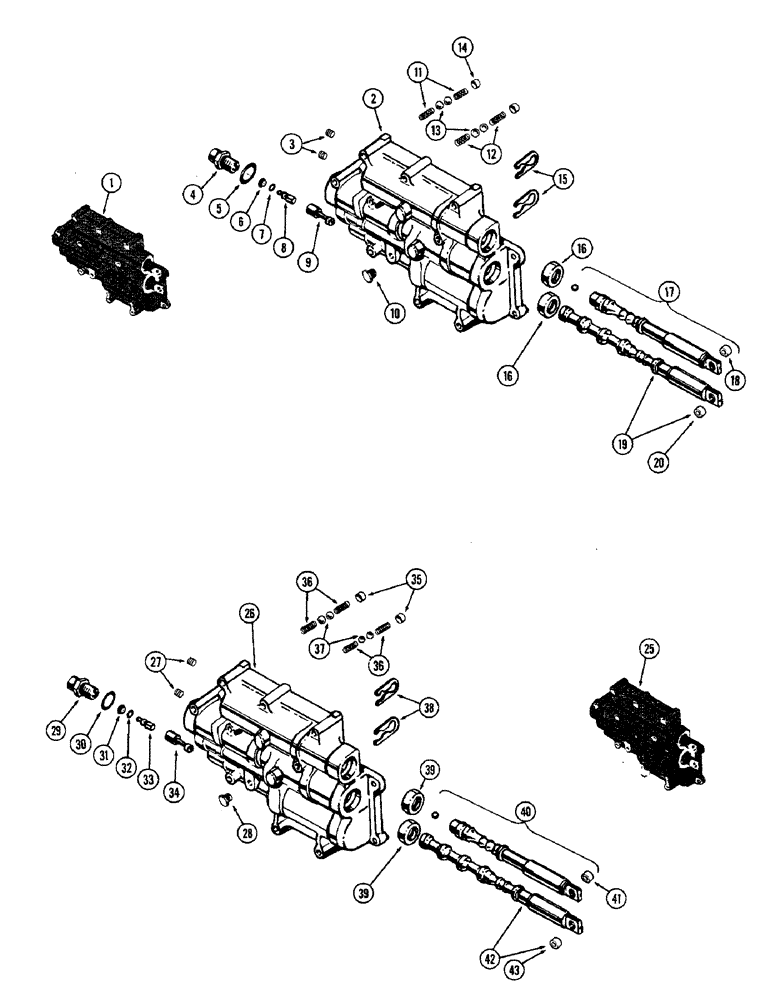

Схема запчастей Case W10 - (081A) - TRANSMISSION CONTROL VALVE, 1ST USED TRANS. SN 39647 (06) - POWER TRAIN

№

Артикул

Название

Примечание

Количество

1

L30311

VALVE ASSY. - control, transmission, Includes: Ref. 2 - 20

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - control valve (Order L30311)

1шт.

3

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

- pipe, 3/8" sq. sckt. hd.

2шт.

4

A12784

PLUG

- retainer, cut-off valve

1шт.

5

A12649

GASKET

- retainer plug

1шт.

6

A16568

CUP ASSY.

CUP - clutch cut-off

1шт.

7

A12666

O-RING,0.359" ID x 0.73"

"O" RING - cut-off plug

1шт.

8

A16569

PLUG

- cut-off valve

1шт.

9

A16995

LOCK VALVE

VALVE - clutch cut-off

1шт.

10

221-1661

PLUG

- pipe, 1/8" hex. hd.

1шт.

11

L30312

VALVE SPRING

SPRING - range selector detent

2шт.

12

L30313

VALVE SPRING

SPRING - forward & reverse detent (Yellow coded)

2шт.

13

211-15

BALL,5/8" Dia

- valve detent, . 5/8" Dia

4шт.

14

A16991

RETAINER

- detent spring

2шт.

15

A16992

STOP - valve

2шт.

16

A12660

SEAL

- oil, selector spool

2шт.

17

A16993

VALVE

SPOOL ASSY. - range selector, Includes: Ref. 18

1шт.

18

A13517

BUSHING - valve spool

1шт.

19

A16994

VALVE

SPOOL ASSY. - forward & reverse selector, Includes: Ref. 20

1шт.

20

A13517

BUSHING - valve spool

1шт.

25

A16988

VALVE ASSY. - control (Order L30311), used transmission, Includes: Ref. 26 - 43, Serial Range: 23080-39647

1шт.

26

NSS

NOT SOLD SEPARAT

BODY - control valve (Order A16988), used transmission, Serial Range: 23080-39647

1шт.

27

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

- pipe, 3/8" sq. socket hd., used transmission, Serial Range: 23080-39647

2шт.

28

221-1661

PLUG

- pipe, 1/8" hex. hd., used transmission, Serial Range: 23080-39647

1шт.

29

A12784

PLUG

- retainer, cut-off valve, used transmission, Serial Range: 23080-39647

1шт.

30

A12649

GASKET

- retainer plug, used transmission, Serial Range: 23080-39647

1шт.

31

A16568

CUP ASSY.

CUP - plug, cut-off valve, used transmission, Serial Range: 23080-39647

1шт.

32

A12666

O-RING,0.359" ID x 0.73"

"O" RING - cut-off plug, used transmission, Serial Range: 23080-39647

1шт.

33

A16569

PLUG

- cut-off valve, used transmission, Serial Range: 23080-39647

1шт.

34

A16995

LOCK VALVE

VALVE - cut-off, used transmission, Serial Range: 23080-39647

1шт.

35

A16991

RETAINER

- detent spring, used transmission, Serial Range: 23080-39647

2шт.

36

A16990

SPRING - inching control, used transmission, Serial Range: 23080-39647

4шт.

37

211-5

BALL,3/16" Dia

- detent spring, 5/8" dia., used transmission, Serial Range: 23080-39647

4шт.

38

A16992

STOP - valve spool, used transmission, Serial Range: 23080-39647

2шт.

39

A12660

SEAL

- oil, selector spool, used transmission, Serial Range: 23080-39647

2шт.

40

A16993

VALVE

SPOOL ASSY. - range selector, used transmission, Includes: Ref. 41, Serial Range: 23080-39647

1шт.

41

A13517

BUSHING - spool end, used transmission, Serial Range: 23080-39647

1шт.

42

A16994

VALVE

SPOOL ASSY. - forward & reverse selector, used transmission, Includes: Ref. 43, Serial Range: 23080-39647

1шт.

43

A13517

BUSHING - spool end, used transmission, Serial Range: 23080-39647

1шт.

Выбрано товаров: 39
