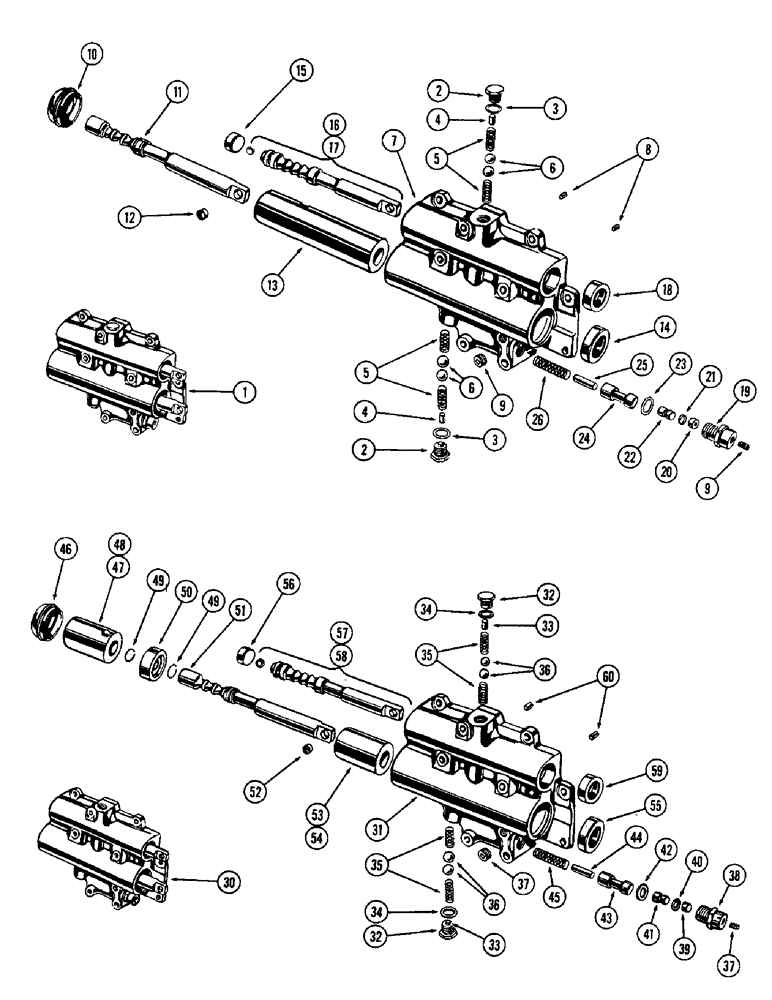

Запчасти Case W10 (080) - TRANSMISSION CONTROL VALVE, USED TRANS. SN 18213 THRU 23080, (06) - POWER TRAIN

1

A16664

LOCK VALVE

VALVE ASSY. - control, transmission, Includes: Ref. 2 - 26

1шт.

2

A16531

PLUG - selector valve

2шт.

3

A12650

GASKET - valve plug (Copper)

2шт.

4

A12669

WEIGHT

PIN - valve plug

2шт.

5

A12661

SPRING

- valve ball detent

4шт.

6

211-15

BALL,5/8" Dia

- detent spring, . 5/8" Dia

4шт.

7

NSS

NOT SOLD SEPARAT

BODY - control valve (Order A16664)

1шт.

8

138-220

LOCK PIN,3/8" x 3/4", Slotted

PIN, 3/8" x 3/4", Slotted

2шт.

9

221-1661

PLUG

- pipe, 1/8" hex. hd.

2шт.

10

L34013

PLUG

- cover, forward & reverse spool

1шт.

11

A16663

SPOOL ASSY. - forward & reverse selector, Includes: Ref. 12

1шт.

12

A13517

BUSHING - valve spool end

1шт.

13

A16662

SLEEVE

- spool, forward & reverse

1шт.

14

A12747

OIL RESERVOIR

SEAL - oil, forward & reverse spool

1шт.

15

A12699

PLUG - range selector spool

1шт.

16

A12746

SPOOL ASSY. - range selector

1шт.

17

A13517

BUSHING - range spool end

1шт.

18

A12660

SEAL

- oil, range spool

1шт.

19

A12784

PLUG

- retainer, cut-off

1шт.

20

A16568

CUP ASSY.

CUP - cut-off plug

1шт.

21

A12666

O-RING,0.359" ID x 0.73"

"O" RING - cut-off plug

1шт.

22

A16569

PLUG

- cut-off valve

1шт.

23

A12649

GASKET

- retainer plug

1шт.

24

A12782

LOCK VALVE

VALVE - cut-off

1шт.

25

A12648

X

PIN - cut-off valve

1шт.

26

A12741

SPRING - cut-off valve

1шт.

30

A12818

VALVE ASSY. - control, transmission (Order A16664), used prior to, Includes: Ref. 31 - 60, Start Serial: 18213

1шт.

31

NSS

NOT SOLD SEPARAT

BODY - control valve (Order A16664), used prior to transmission, Start Serial: 18213

1шт.

32

A16531

PLUG - selector spool, used prior to transmission, Start Serial: 18213

2шт.

33

A12669

WEIGHT

PIN - plug, selector, used prior to transmission, Start Serial: 18213

2шт.

34

A12650

GASKET - selector plug, used prior to transmission, Start Serial: 18213

2шт.

35

A12661

SPRING

- detent ball, used prior to transmission, Start Serial: 18213

4шт.

36

211-15

BALL,5/8" Dia

- detent, ., used prior to transmission 5/8" Dia, Start Serial: 18213

4шт.

37

221-1661

PLUG

- pipe, 1/8" hex. hd., used prior to transmission, Start Serial: 18213

2шт.

38

A12784

PLUG

- retainer, cut-off, used prior to transmission, Start Serial: 18213

1шт.

39

A16568

CUP ASSY.

CUP - plug, cut-off, used prior to transmission, Start Serial: 18213

1шт.

40

A12666

O-RING,0.359" ID x 0.73"

"O" RING - cut-off plug, used prior to transmission, Start Serial: 18213

1шт.

41

A16569

PLUG

- cut-off valve, used prior to transmission, Start Serial: 18213

1шт.

42

A12649

GASKET

- cut-off plug, used prior to transmission, Start Serial: 18213

1шт.

43

A12782

LOCK VALVE

VALVE - cut-off, used prior to transmission, Start Serial: 18213

1шт.

44

A12648

X

PIN - cut-off valve, used prior to transmission, Start Serial: 18213

1шт.

45

A12741

SPRING - cut-off valve, used prior to transmission, Start Serial: 18213

1шт.

46

L34013

PLUG

- cover, forward & reverse spool, used prior to transmission, Start Serial: 18213

1шт.

47

A13228

SLEEVE - frwd. range (Trans. S.N. 5909 to 18213), used prior to, Start Serial: 18213

1шт.

48

A12742

SLEEVE - frwd. range (Prior trans. S.N. 5909), used prior to, Start Serial: 18213

1шт.

49

A12667

RING

- snap, forward & reverse spool, used prior to transmission, Start Serial: 18213

2шт.

50

A12744

PISTON - forward & reverse spool, used prior to transmission, Start Serial: 18213

1шт.

51

A12743

SPOOL ASSY. - forward & reverse selector, used prior to transmission, Start Serial: 18213

1шт.

52

A13517

BUSHING - selector spool end, used prior to transmission, Start Serial: 18213

1шт.

53

A13227

SLEEVE - reverse range (Trans. S.N. 5909 to 18213), used prior to, Start Serial: 18213

1шт.

54

A12745

SLEEVE - reverse range (Prior trans. S.N. 5909), used prior to, Start Serial: 18213

1шт.

55

A12747

OIL RESERVOIR

SEAL - oil, forward & reverse spool, used prior to transmission, Start Serial: 18213

1шт.

56

A12699

PLUG - range spool end, used prior to transmission, Start Serial: 18213

1шт.

57

A12746

SPOOL ASSY. - range selector, used prior to transmission, Includes: Ref. 58, Start Serial: 18213

1шт.

58

A13517

BUSHING - selector spool end, used prior to transmission, Start Serial: 18213

1шт.

59

A12660

SEAL

- oil, range selector spool, used prior to transmission, Start Serial: 18213

1шт.

60

138-220

LOCK PIN,3/8" x 3/4", Slotted

PIN, , Used prior to transmission 3/8" x 3/4", Slotted, Start Serial: 18213

2шт.
