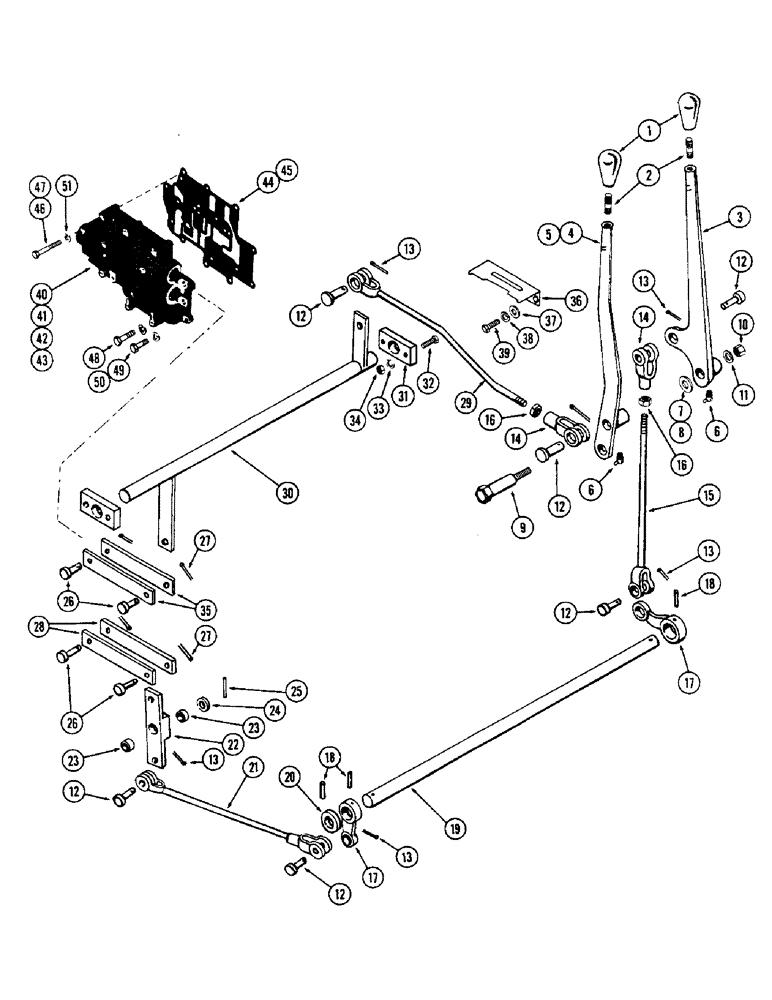

Запчасти Case W10 (078) - TRANSMISSION SHIFT CONTROL LINKAGE (06) - POWER TRAIN

1

A14051

GRIP

KNOB - hand lever

2шт.

2

A16775

STUD

- lever knob (Replaces A26788)

2шт.

3

A14033

BODY

LEVER - forward & reverse shift

1шт.

4

A16378

LEVER - range shift (Late production) (Cast)

1шт.

5

A14039

LEVER - range shift (Early production) (Welded)

1шт.

6

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

7

A15783

SPACER

WASHER - spacer, use w/A1678 lever

1шт.

8

195-41

WASHER,5/8"

(Use w/A14039 lever) 5/8"

1шт.

9

A14044

PIN - pivot, hand lever

1шт.

10

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - hex. jam, 5/8" N.F.

1шт.

11

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

12

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis, 1/2" dia.

6шт.

13

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

6шт.

14

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - end, adjustable 1/2" light

2шт.

15

A14485

ROD - upper forward & reverse control

1шт.

16

25-118

NUT,1/2"-20, G5

- hex., 1/2" N.F.

2шт.

17

A12115

LEVER - forward & reverse cross shaft

2шт.

18

135-134

PIN - groove, 1/4" x 1-3/4"

3шт.

19

A12114

SHAFT - forward & reverse cross

1шт.

20

A12116

COLLAR - end, forward & reverse cross shaft

1шт.

21

A12117

LINK - forward & reverse lower control

1шт.

22

A16774

LEVER ASSY. - forward & reverse valve strap, Includes: Ref. 23

1шт.

23

A28042

BUSHING

- lever

2шт.

24

195-41

WASHER,5/8"

1шт.

25

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN, 3/16" x 1 1/2", Slotted

1шт.

26

A12122

PIN - connecting, valve strap

4шт.

27

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

4шт.

28

A12121

STRAP - forward & reverse valve connecting

2шт.

29

A15178

ROD - range shift control

1шт.

30

A14482

SHAFT - range shift cross

1шт.

31

A14049

BEARING - range shift shaft

2шт.

32

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

- hex. hd., 3/8 x 1-1/2" N.F.

4шт.

33

92-6

LOCK WASHER,3/8"

4шт.

34

25-116

NUT,Hex, 3/8"-24, G5

- hex., 3/8" N.F.

4шт.

35

A12123

LINK - range shift to valve connecting

2шт.

36

A14484

GUIDE - hand lever

1шт.

37

195-20

WASHER

- plain, 5/16" SAE

2шт.

38

92-5

LOCK WASHER,5/16"

2шт.

40

L30311

VALVE ASSY. - control (Trans. S.N. 39647 & after) (Repairs Figure 81A)

1шт.

41

A16988

VALVE ASSY. - control (Trans. S.N. 23080 to S.N. 39647) (Repairs, Figure 81A) Order L30311

1шт.

42

A16664

LOCK VALVE

VALVE ASSY. - control (Trans. S.N. 18213 to S.N. 23080) (Repairs Figure 80)

1шт.

43

A12818

VALVE ASSY. - control (Prior transmission S.N.)

1шт.

45

A12804

GASKET

- valve mounting (Use w/ref 42 & 43)

1шт.

(18213) (Repairs, page 80) Order A16664

1шт.

44

A16987

GASKET

- valve mounting (Use w/ref. 40 & 41)

1шт.

46

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex. hd., 3/8" x 3" N.C. (Use w/ref. 42 & 43)

5шт.

47

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex. hd., 3/8" x 3-1/2" N.C. (Use w/ref. 40 & 41)

3шт.

48

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex. hd., 3/8" x 2-1/2" N.C. (Use w/ref. 40 & 41)

6шт.

49

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(Use w/ref. 40 & 41) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

50

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(Use w/ref. 42 & 43) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

51

92-6

LOCK WASHER,3/8"

1шт.
