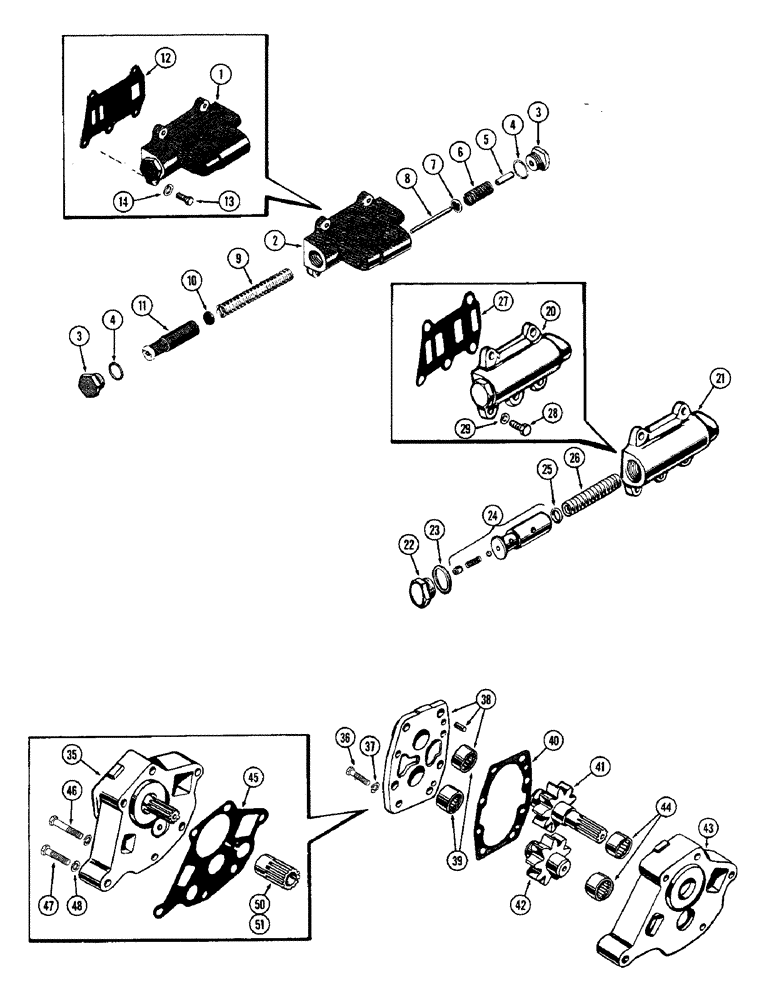

Запчасти Case W10 (074) - PRESSURE REGULATOR VALVE, 1ST USED TRANS. SER. NO. 21354 (06) - POWER TRAIN

1

A16780

VALVE ASSY. - pressure regulator, Includes: Ref. 2 - 11

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve (Order A16780)

1шт.

3

A12701

PLUG

- main, valve

2шт.

4

A12651

GASKET - plug

2шт.

5

A16986

TUBE - spring guide

1шт.

6

A16985

VALVE SPRING

SPRING - pressure relief

1шт.

7

A16984

LOCK VALVE

VALVE - pressure relief

1шт.

8

A16983

PIN - valve guide

1шт.

9

A16622

SPRING - pressure regulating

1шт.

10

A15152

SHIM

- main valve

1шт.

11

A16778

VALVE

- main pressure regulating

1шт.

12

A12720

GASKET

- valve mounting

1шт.

13

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

5шт.

14

92-6

LOCK WASHER,3/8"

5шт.

20

A12817

VALVE ASSY. - pressure regulator (Order A16780), used prior to transmission, Includes: Ref. 21 - 26, Start Serial: 21354

1шт.

21

NSS

NOT SOLD SEPARAT

BODY - valve (Order A16780), pressure regulator used prior to transmission, Start Serial: 21354

1шт.

22

A12701

PLUG

- valve, pressure regulator used prior to transmission, Start Serial: 21354

1шт.

23

A12651

GASKET - plug, pressure regulator valve used prior to transmission, Start Serial: 21354

1шт.

24

A15969

VALVE

ASSY. - pressure relief, regulator used prior to transmission, Start Serial: 21354

1шт.

25

A15152

SHIM

- pressure adjusting, regulator valve used prior to transmission, Start Serial: 21354

1шт.

26

A16622

SPRING - pressure regulating, used prior to transmission, Start Serial: 21354

1шт.

27

A12720

GASKET

- valve mounting, pressure regulator used prior to transmission, Start Serial: 21354

1шт.

28

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Pressure regulator valve used prior to transmission Hex, 3/8"-16 x 1 1/4", G5, Full Thd, Start Serial: 21354

5шт.

29

92-6

LOCK WASHER,3/8"

pressure regulator valve used prior to transmission 3/8", Start Serial: 21354

5шт.

35

A12713

PUMP

ASSY. - oil charging, Includes: Ref. 36 - 45

1шт.

36

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Oil charging pump Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

37

92-6

LOCK WASHER,3/8"

oil charging pump 3/8"

4шт.

38

A12706

COVER ASSY. - pump, oil charging, Includes: Ref. 39

1шт.

39

A12652

NEEDLE BEARING,1" ID x 1.251" OD x 0.75"

BEARING - shaft (Torrington B1612), oil charging pump

2шт.

40

A12752

RIGID TUBE

GASKET - pump cover, oil charging

1шт.

41

A12711

GEAR - pump drive, oil charging

1шт.

42

A12710

GEAR - pump driven, oil charging

1шт.

43

A12751

TYRE/TIRE

BODY ASSY. - pump, oil charging, Includes: Ref. 44

1шт.

44

A12652

NEEDLE BEARING,1" ID x 1.251" OD x 0.75"

BEARING - shaft (Torrington B1612), oil charging pump

2шт.

45

A12696

GASKET

- pump mounting, oil charging

1шт.

46

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex. hd., 3/8 x 2-3/4" N.C., oil charging pump

4шт.

47

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

Oil charging pump Hex, 3/8"-16 x 2 1/4", G5

2шт.

48

92-6

LOCK WASHER,3/8"

oil charging pump 3/8"

6шт.

50

L30304

COUPLING

- pump drive (Trans. S.N. 39647 and after), oil charging

1шт.

51

A12697

COUPLING

- pump drive (Prior trans. S.N. 39647), oil charging

1шт.
