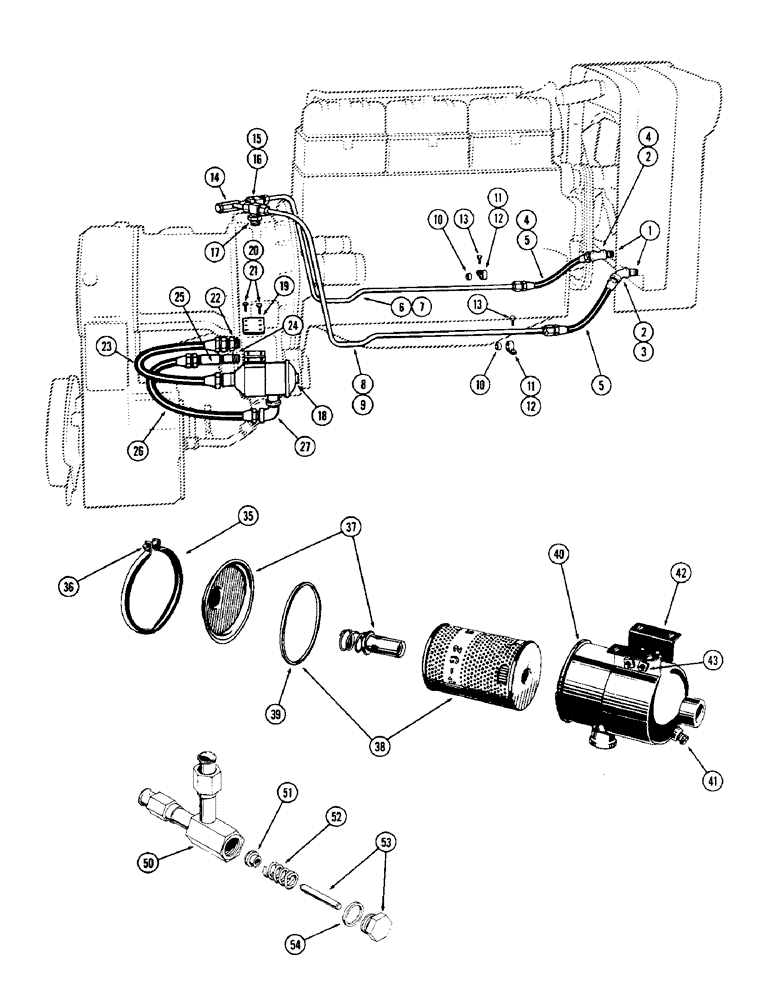

Запчасти Case W10 (066) - TRANSMISSION OIL HOSES AND TUBES (06) - POWER TRAIN

1

221-1185

FITTING

NIPPLE - 1/2 P.T. x 1-1/8" (Late production)

1шт.

2

221-414

FITTING,90 Degree, 1/2"-14, NPT

ELBOW - 1/2" P.T. 90 degrees (Early production)

2шт.

3

221-1368

ELBOW,45 Degree, 1/2" NPT

- 1/2" P.T. 90 degrees (R.H. side late production)

1шт.

4

221-1377

ELBOW,90 Degree, 1/2" NPT

- 1/2" P.T. 45 degrees (L.H. side late production)

1шт.

5

A14463

HOSE - oil cooler (w/5/8" tube on early production)

2шт.

5

A16704

HOSE - oil cooler (w/3/4" tube on late production)

2шт.

6

A16748

TUBE - oil cooler R.H. (3/4" O.D. on late production)

1шт.

7

A14486

TUBE - oil cooler R.H. (5/8" O.D. on early production)

1шт.

8

A16749

TUBE - oil cooler L.H. (3/4" O.D. on late production)

1шт.

9

A14487

TUBE - oil cooler L.H. (5/8" O.D. on early production)

1шт.

10

T25073

BUSHING

SPACER - cooler tube clip

2шт.

11

A26696

NO LONGER SERVICED

CLIP - (For 3/4" tube)

2шт.

12

A12497

CLIP - (For 5/8" tube)

2шт.

13

14-632

BOLT,Hex, 3/8" - 24 x 2", Gr 5

- 3/8 x 2" N.F. hex. hd.

2шт.

14

A16384

VALVE

ASSY. - by-pass (Repairs below)

1шт.

15

A16699

TEE - outlet (Use w/3/4" tube)

2шт.

16

218-555

TEE,7/8"-14, 37 Degree x 1/2"-14, NPTF Br

- outlet (Use w/5/8" tube)

2шт.

17

221-60

TUBE

BUSHING - reducer, 3/4 x 1/2" P.T.

1шт.

18

A12615

FILTER ASSY. - converter oil (Repairs below)

1шт.

19

A12614

BRACKET - filter mounting

1шт.

20

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- filter to brkt., 3/8 x 1" N.F. hex.

4шт.

21

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

- bracket to frame, 3/8 x 1-1/2" N.F. hex.

2шт.

22

221-1065

BUSHING

- reducer, 1 x 3/4" P.T.

1шт.

23

A12613

HOSE - outlet, Serial Range: filter-converter

1шт.

24

221-241

X

NIPPLE - pipe, 1" P.T. x 3"

1шт.

25

221-354

COUPLING - reducer, 1 x 3/4" P.T.

1шт.

26

A12612

HOSE ASSY.

HOSE - inlet, Serial Range: trans.-filter

1шт.

27

221-1415

ELBOW,90 Degree, 3/4"-14, NPT

- street, 3/4" P.T. x 90 degrees

1шт.

A12615

FILTER ASSY. - transmission oil filter, Includes: Ref. 35 - 43

1шт.

35

A15989

RING

CLAMP ASSY. - cover (2 halves), transmission oil filter, Includes: Ref. 36

1шт.

36

71-414

BOLT (MACHINE),M12 x 1.75 x 45mm, Cl 10.9

SCREW - mach., 1/4 x 7/8" slotted hd., transmission oil filter

2шт.

37

A15991

COVER

ASSY. - (Includes relief valve), transmission oil filter

1шт.

38

A13211

FILTER, ENGINE OIL

ELEMENT KIT - filter, transmission oil, Includes: Ref. 39

1шт.

39

A13208

GASKET

GASKET - cover to body, transmission oil filter

1шт.

40

NSS

NOT SOLD SEPARAT

BODY - filter (Order A12615), transmission oil

1шт.

41

221-662

PLUG,Hex Hd, 1/4"-18

- 1/4" P.T. hex. hd., transmission oil filter

1шт.

42

A13210

BRACKET - mounting, filter, transmission oil, Includes: Ref. 43

1шт.

43

72-540

SCREW - mach., 5/16 x 2-1/2" N.C. slotted hd., transmission oil filter

2шт.

A16384

VALVE

ASSY. - by-pass, transmission oil filter, Includes: Ref. 50 - 54

1шт.

50

NSS

NOT SOLD SEPARAT

BODY - valve, transmission oil, by-pass

1шт.

51

A16388

POPPET - valve, by-pass

1шт.

52

A27351

SPRING

- poppet, by-pass valve

1шт.

53

A16385

CAP ASSY. - valve, by-pass

1шт.

54

A27927

OIL PAN GASKET SET

- valve cap, by-pass

1шт.
