Запчасти Case W10 (140) - POWER STEERING CYLINDER (05) - STEERING

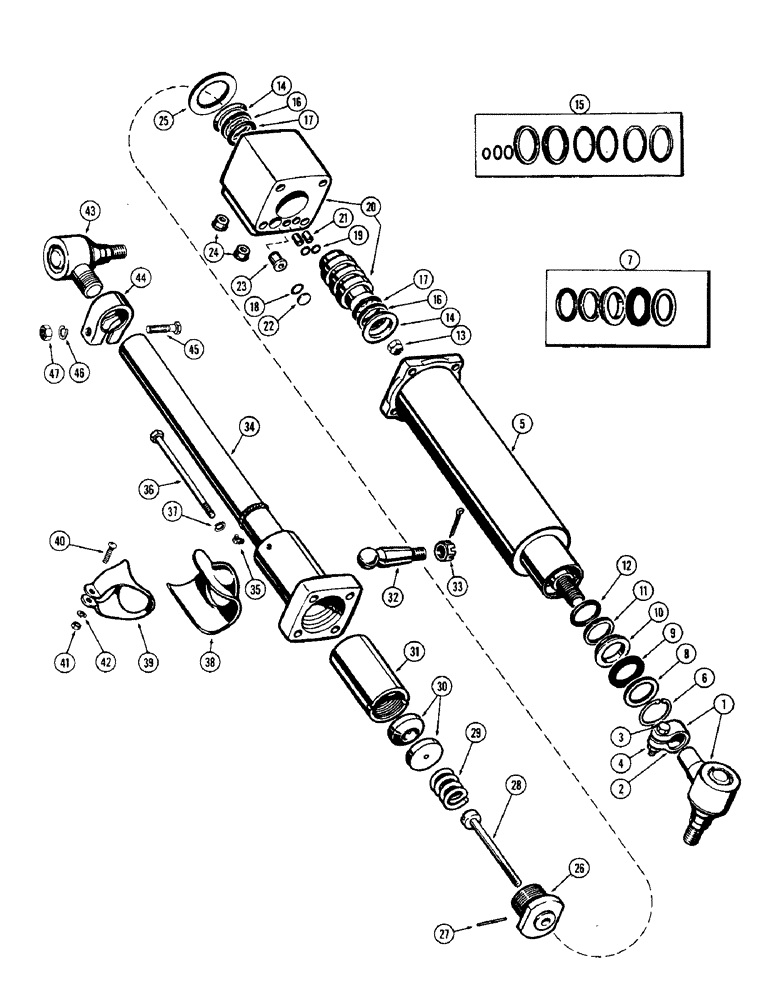

Схема запчастей Case W10 - (140) - POWER STEERING CYLINDER (05) - STEERING

Артикул

Название

Примечание

Количество

A14408

CYLINDER ASSY. - (Bendix #610505. Order A16766), Includes: Ref. 1 - 47

1шт.

A16766

STEERING CYLINDER

CYLINDER ASSY. - (Bendix #610780), Includes: Ref. 1 - 47

1шт.

1

A15215

END

ASSY. - front, Includes: Ref. 2 - 4

1шт.

2

A15216

CLAMP

ASSY. - end, Includes: Ref. 3 and 4

1шт.

3

14-736

BOLT,Hex, 7/16" - 20 x 2-1/4", Gr 5

- 7/16 x 2-1/4" N.F hex.

1шт.

4

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex.

1шт.

5

A16787

CYLINDER

ASSY. - piston, Includes: Ref. 6 - 12

1шт.

6

A15894

X

RING - snap, piston rod

1шт.

7

A15231

KIT

SEAL KIT - piston rod, Includes: Ref. 8 - 12

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER - scraper

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - dust

1шт.

10

NSS

NOT SOLD SEPARAT

BUSHING - piston

1шт.

11

NSS

NOT SOLD SEPARAT

RING - back-up

1шт.

12

NSS

NOT SOLD SEPARAT

"O" RING - piston rod

1шт.

13

131-528

LOCK NUT,3/8"-24

NUT - lock, 3/8" N.F. hex. (Valve spool)

1шт.

14

A15234

BUSHING - relief valve (For A14408)

1шт.

14

A16753

BUSHING

- relief valve (For A16766)

1шт.

15

A16969

KIT

SEAL KIT - cylinder valve, Includes: Ref. 16 - 19

1шт.

16

NSS

NOT SOLD SEPARAT

RING - back-up

2шт.

17

NSS

NOT SOLD SEPARAT

"O" RING - relief valve

2шт.

18

NSS

NOT SOLD SEPARAT

"O" RING - relief valve

2шт.

19

NSS

NOT SOLD SEPARAT

"O" RING - relief valve

2шт.

19

NSS

NOT SOLD SEPARAT

"O" RING - relief valve

1шт.

20

A16786

HOUSING

ASSY. - valve (w/matched spool)

1шт.

21

A15235

INSERT

- oil passage

2шт.

22

G46121

PLUG

- check valve

1шт.

23

G45075

LOCK VALVE

VALVE ASSY. - check

1шт.

24

A15233

SEAT

-, Serial Range: tube-valve

2шт.

25

A15229

PLATE

-, Serial Range: housing-flange

1шт.

26

A15228

SCREW

- stop

1шт.

27

A15224

AXLE PIN

PIN - lock, stop screw

1шт.

28

A15222

BOLT (SPREADER)

BOLT - valve spool

1шт.

29

A15227

SPRING

- seat pressure

1шт.

30

A15226

SEAT

- ball stud

2шт.

31

A15230

SLEEVE

- extension tube

1шт.

32

A15225

STUD

- ball, valve actuating

1шт.

33

25-2412

NUT - castle, 3/4" N.C. hex.

1шт.

34

A15219

TUBE - outer extension

1шт.

35

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

36

16-676

BOLT (SPREADER)

BOLT - 3/8 x 4-3/4" N.F. hex. hd.

4шт.

37

92-6

LOCK WASHER,3/8"

4шт.

38

A15223

COVER

- dust, extension tube

1шт.

39

A15220

CLAMP

- dust cover

1шт.

40

173-99

SCREW,Sl Rnd Hd, #10 - 24 x 5/8"

- mach., #10-24 x 5/8" N.C. rd. hd.

1шт.

41

129-7

NUT,Hex, #10 - 24

- hex. #10-24

1шт.

42

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

43

A15217

END

ASSY. - front

1шт.

44

A15218

CLAMP

- end to tube, Includes: Ref. 45 - 47

1шт.

45

14-1048

BOLT,Hex, 5/8" - 18 x 3", Gr 5

- 5/8 x 3" N.F. hex.

1шт.

46

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

47

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex.

1шт.

Выбрано товаров: 51
