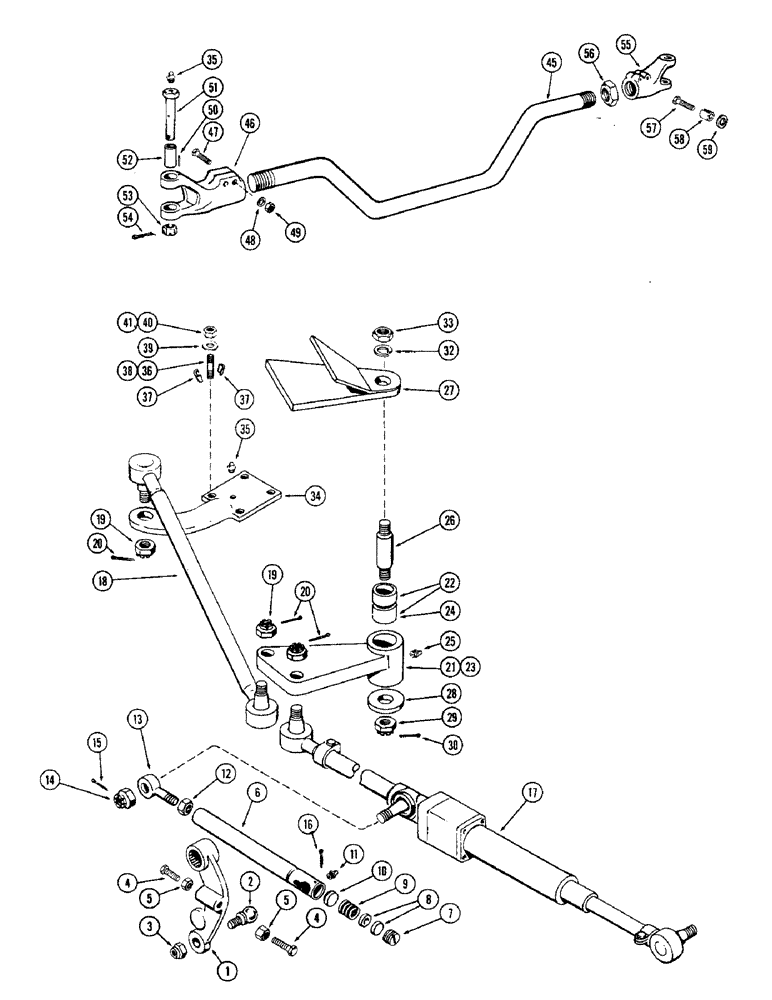

Запчасти Case W10 (138) - STEERING ARMS - CYLINDER AND DRAGLINK (05) - STEERING

1

A14007

ARM ASSY. - drop, steering gear, Includes: Ref. 2

1шт.

2

A14009

PIN

BALL - pivot, drop arm

1шт.

3

25-148

JAM NUT,Jam, 1/2"-13, G5

- jam, 1/2" NC, hex

2шт.

4

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

5

131-301

LOCK NUT

NUT - lock, 5/8" N.F. hex.

1шт.

6

A14010

LINK ASSY. - drop arm to cylinder, Includes: Ref. 7 - 13

1шт.

7

A26628

ADJUSTMENT SCREW,5/16" - 18 x 3/4"

SCREW - adjusting

1шт.

8

A26629

BEARING

- drop arm ball

2шт.

9

A26630

VALVE SPRING

SPRING - bearing pressure

1шт.

10

A26767

SEAT

- pressure spring

1шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" str.

1шт.

12

25-1514

JAM NUT,Jam, 7/8"-14, G5

- jam, 7/8" N.F. hex.

1шт.

13

A14014

END -, Serial Range: link-cylinder

1шт.

14

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

NUT - castle, 3/4" N.F. (Comes with cylinder)

1шт.

17

A16766

STEERING CYLINDER

CYLINDER ASSY. - power steering (Repairs Figure 140)

1шт.

18

A14447

LINK - drag, rear axle

1шт.

19

425-1914

SLOTTED NUT,7/8"-14, G5, Thk

NUT, SLOTTED, , Castle 7/8"-14, G5, Thk

4шт.

21

A14410

LEVER - intermediate (Early production with welded pivot pin. Order A15852), Includes: Ref. 22

1шт.

22

A12014

BUSHING

- pivot

2шт.

A15852

KIT

- intermediate steering arm (Order only to replace A14410 on early production), Includes: Ref. 23 - 33

1шт.

23

A15766

LEVER

- intermediate (Late production), Includes: Ref. 24

1шт.

24

A17611

BUSHING

- pivot

1шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" str.

1шт.

26

A15762

PIN

- pivot

1шт.

27

A15768

PLATE

- brace (To be, Serial Range: welded-chassis)

1шт.

28

A15763

WASHER

- pivot pin

1шт.

29

25-1316

NUT,1"-14, G5

NUT, SLOTTED, 1"-14, G5

1шт.

30

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

1шт.

32

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

33

25-1516

NUT,Jam, 1"-14, G5

- jam, 1" N.F. hex.

1шт.

34

A15083

ARM - rear axle steering

1шт.

35

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" str.

2шт.

15

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

36

A15077

STUD

- long, steering arm

2шт.

20

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

4шт.

37

A13105

BUSHING

- dowel, split (Long stud)

4шт.

38

A15076

STUD

- short, steering arm

2шт.

39

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

40

25-1110

NUT,5/8"-18, G5

- short stud, 5/8" N.F. hex.

2шт.

41

A15080

NUT

- long stud (Special)

2шт.

45

A15082

TIE-ROD

ROD - tie, steering axle

1шт.

46

A13005

YOKE

- L.H. end, tie rod

1шт.

47

25282R1

BOLT,Hex, 1/2" - 20 x 2 3/4", Gr 8

- L.H. & R.H. yoke, 1/2 x 2-3/4" N.F. hex.

4шт.

48

92-8

LOCK WASHER,1/2"

4шт.

49

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

4шт.

50

A13111

AXLE PIN

PIN - lock, L.H. & R.H. yoke

2шт.

51

A13107

BOLT

- yoke, tie, Serial Range: rod-axle

2шт.

52

A15081

BUSHING,22.28mm ID x 28.66mm OD x 56.36mm L

- yoke bolt

2шт.

53

A13110

NUT

- yoke bolt

2шт.

54

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

55

A13004

YOKE

- R.H. end, tie rod

1шт.

56

A13115

LOCK NUT

NUT - lock, R.H. yoke

1шт.

57

A15078

SCREW - stop, steering axle

2шт.

58

A15037

SPACER

- stop screw

2шт.

59

A15043

SHIM

- stop screw (.010")

1шт.

16

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

1шт.
