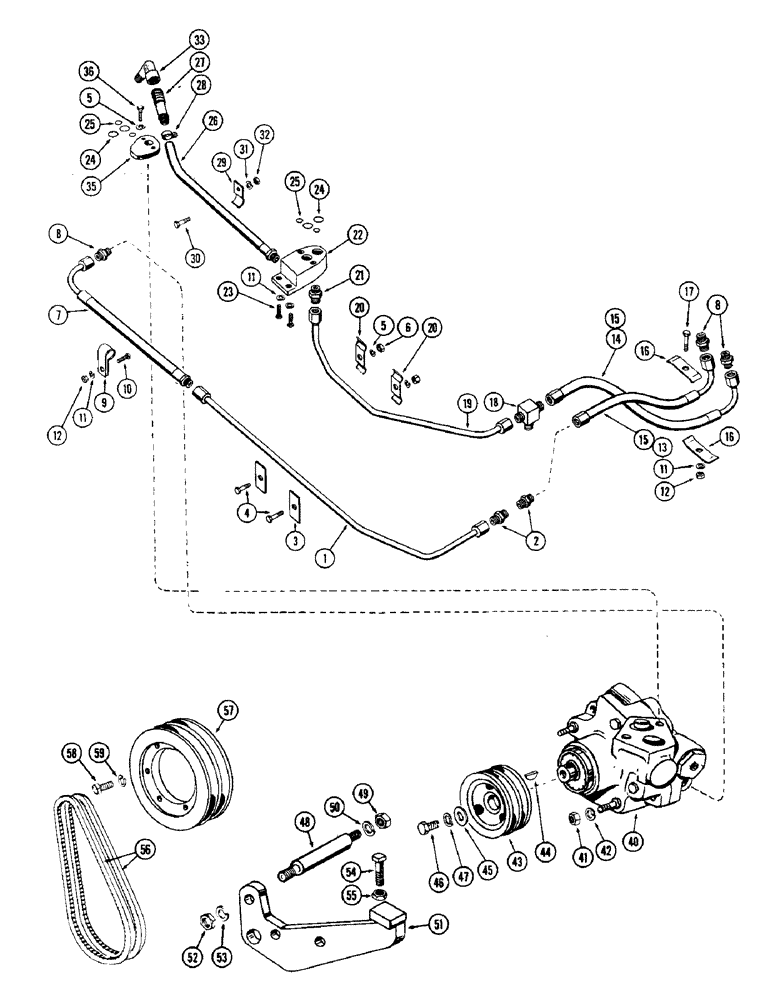

Запчасти Case W10 (134) - POWER STEERING HOSES AND TUBES, POWER PUMP AND MOUNTING (05) - STEERING

1

A14074

TUBE - pressure, pump to brake valve

1шт.

2

A14075

X

ADAPTER - brake valve

2шт.

3

A14081

SPACER - tube clamp

3шт.

4

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

2шт.

5

92-5

LOCK WASHER,5/16"

2шт.

6

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

2шт.

7

A14073

HOSE ASSY.

- pump to pressure tube

1шт.

8

A14072

ADAPTER

- hose to pump & cyl. valve

3шт.

9

A14434

CLIP - pressure hose

1шт.

10

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.F. hex.

1шт.

11

92-6

LOCK WASHER,3/8"

4шт.

12

25-116

NUT,Hex, 3/8"-24, G5

- hex., 3/8" N.F.

2шт.

13

A14435

HOSE - brake valve to cyl. valve (See ref. 15)

1шт.

14

A14436

HOSE ASSY.

HOSE - return, cyl. valve (See ref. 15)

1шт.

15

A18511

HOSE - brake valve to cyl. valve (Use with hydrovac brakes)

2шт.

16

A14078

CLAMP

- steering cyl. hoses

2шт.

17

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

- 3/8 x 1-3/4" N.F. hex.

1шт.

18

218-555

TEE,7/8"-14, 37 Degree x 1/2"-14, NPTF Br

- brake valve return (5/8" tube x 1/2" P.T.)

1шт.

19

A14437

TUBE - return, Serial Range: valve-reservoir

1шт.

20

A12032

CLAMP

- return tube

2шт.

21

A14080

X

ADAPTER -, Serial Range: tube-adapter

1шт.

22

A14064

ADAPTER - pump reservoir

1шт.

23

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

24

A11026

GASKET

"O" RING - oil port, adapter

4шт.

25

A11027

GASKET

"O" RING - plate bolts, reservoir

4шт.

26

A14433

HOSE - suction, Serial Range: reservoir-pump

1шт.

27

A14432

NIPPLE - suction hose

1шт.

28

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose to nipple

1шт.

29

A14183

CLAMP - hose

1шт.

30

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

- 1/2 x 1-1/2" N.F. hex.

1шт.

31

92-8

LOCK WASHER,1/2"

1шт.

32

25-118

NUT,1/2"-20, G5

- 1/2" hex.

1шт.

33

221-1411

ELBOW,90 Degree, 1/8"-27, NPT

- pump, 1/8" 90 degrees street

1шт.

35

A14429

ADAPTER - pump return tube

1шт.

36

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16 x 1-1/4" N.C. hex. hd.

2шт.

40

A14056

PUMP

- power steering (Repairs Figure 136)

1шт.

41

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

3шт.

42

92-6

LOCK WASHER,3/8"

3шт.

43

A14504

PULLEY

- pump drive

1шт.

44

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

Pulley to pump #3, 1/8" x 1/2"

1шт.

45

A27343

BUSHING

WASHER - retaining, Serial Range: pulley-pump

1шт.

46

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

47

92-5

LOCK WASHER,5/16"

1шт.

48

A14062

VALVE, CHECK

STUD - pump mounting plate

1шт.

49

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - jam, 5/8" N.F. hex.

1шт.

50

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

51

A14428

PLATE - pump mounting

1шт.

52

25-1112

NUT,3/4"-16, G5

- 3/4" N.F. hex.

1шт.

53

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

54

181-685

SCREW - set, 1/2 x 3-1/2" N.C. sq. hd.

1шт.

55

25-148

JAM NUT,Jam, 1/2"-13, G5

- jam, 1/2" NC, hex

1шт.

56

A16759

SET OF BELTS

BELT, Pump drive (Set of 2)

1шт.

57

A14503

PULLEY - drive, crankshaft

1шт.

58

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex. hd.

6шт.

59

92-6

LOCK WASHER,3/8"

6шт.
