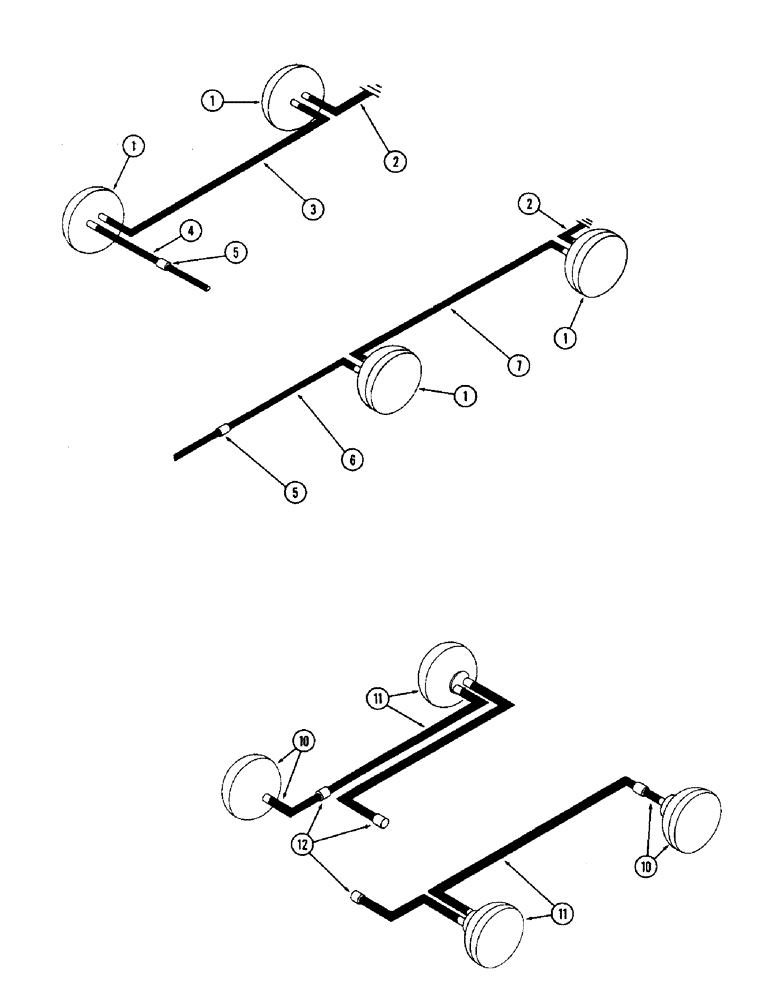

Запчасти Case W10 (062) - LIGHTING EQUIPMENT, RUBBER MOUNTED (04) - ELECTRICAL SYSTEMS

1

A15932

X

LAMP ASSY. - front & rear (Order from Figure 64)

4шт.

2

A15941

ELECTRICAL WIRE

WIRE - lamp ground

2шт.

3

A16365

WIRE - connecting, front lamp

1шт.

4

A16366

WIRE - L.H. front, Serial Range: lamp-connector

1шт.

5

A27213

CONNECTOR - lamp to harness wire

2шт.

6

A15948

ELECTRICAL WIRE

WIRE - L.H. rear, Serial Range: lamp-connector

1шт.

7

A16367

ELECTRICAL WIRE

WIRE - connecting, rear lamp

1шт.

10

A10701

LAMP ASSY. - L.H. front & R.H. rear (Includes lead in wires) (Order from A14758)

2шт.

11

A14758

LAMP ASSY. - R.H. front & L.H. rear (Includes lead in wires) (Order from Figure 64)

2шт.

12

A27213

CONNECTOR - wire

3шт.
