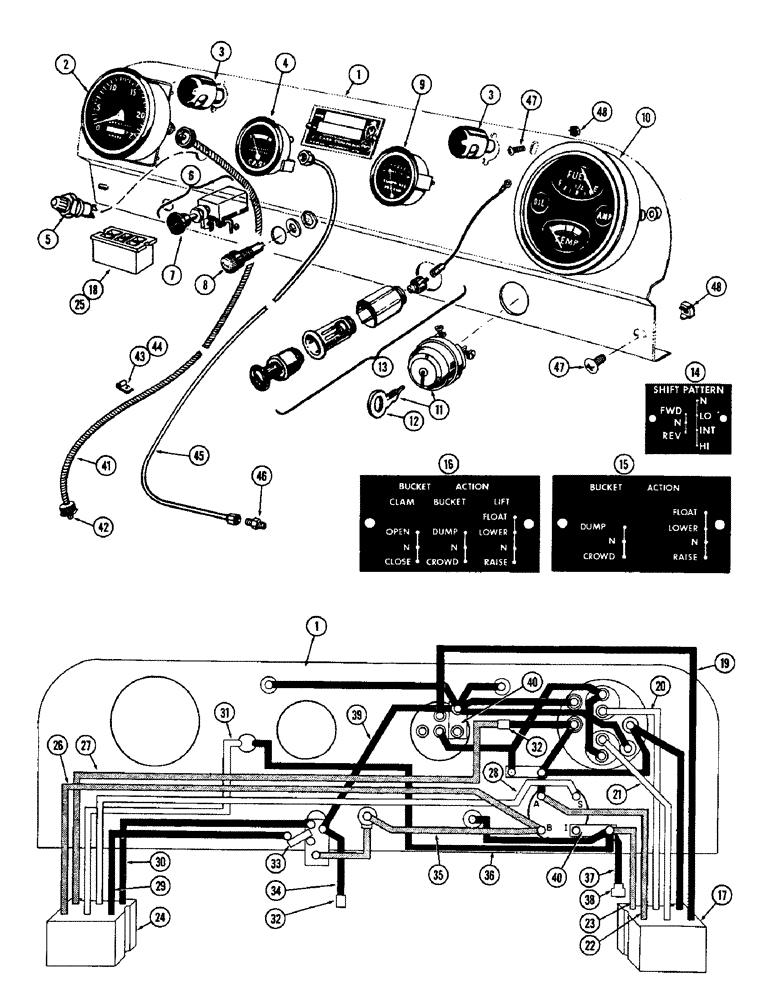

Запчасти Case W10 (058) - INSTRUMENT PANEL AND INSTRUMENTS (04) - ELECTRICAL SYSTEMS

1

A14729

PANEL - instrument mounting

1шт.

2

A11190

TACHOMETER

- engine

1шт.

3

A14737

LAMP

- dash (Repairs Figure 59A)

2шт.

4

A56447

ELECTRICAL GAUGE

GAUGE - conv. oil press. (Replaces A18504)

1шт.

5

A14736

LAMP - warning, air cleaner (Repairs Figure 59A)

1шт.

6

A20201

SWITCH

- light, Includes: Ref. 7

1шт.

7

A7817

KNOB

- light switch

1шт.

8

A8006

NOZZLE HOLDER

HOLDER - fuse (Repairs Figure 59A)

1шт.

9

A13756

GAUGE

- converter oil temp.

1шт.

10

A14730

INSTRUMENT CLUSTER

CLUSTER ASSY. - instrument (Repairs Figure 59A)

1шт.

11

A11373

SWITCH

- ignition & starter Includes: Ref. 12

1шт.

12

A20346

KEY

- starting switch

1шт.

13

G44915

X

LIGHTER - cigarette (Mchy. item) See Figure 59A

1шт.

14

A18405

PLATE - shift pattern

1шт.

15

A19277

PLATE ASSY.

PLATE - bucket action (w/2 spool valve)

1шт.

16

A18406

PLATE ASSY.

PLATE - bucket action (w/3 spool valve)

1шт.

17

A14901

PLUG ASSY. - R.H., panel wiring, Includes: Ref. 18 - 23

1шт.

18

A13742

BLOCK - wiring assy.

1шт.

19

A13746

WIRE - conv. temp. gauge (Black 12-1/4")

1шт.

20

A13745

WIRE - fuel gauge term. (White 7")

1шт.

21

A13744

WIRE - eng. temp. term (White 5-1/4")

1шт.

22

A13743

WIRE - start. switch "A" term. (Red 7")

1шт.

23

A13743

WIRE - start. switch ign. term. (Red 7")

1шт.

24

A14731

PLUG ASSY. - L.H., panel wiring, Includes: Ref. 25 - 31

1шт.

25

A13742

BLOCK - wiring assy.

1шт.

26

A13748

WIRE - start switch "B" term. (Red 23-1/2")

1шт.

27

A13747

WIRE - cluster connector (Red 14")

1шт.

28

A13749

WIRE - start. switch "S" term. (White 24")

1шт.

29

A13750

WIRE - light sw. resistor (Black 12")

1шт.

30

A13750

WIRE - light switch term. (Black 12")

1шт.

31

A14732

WIRE - warning light (White 11")

1шт.

32

A27213

CONNECTOR - 2 wire

2шт.

33

A14900

RESISTOR

- light wire

1шт.

34

A13753

WIRE - light sw. to front conn. (Black 3")

1шт.

35

A13752

WIRE - fuse to start switch "B" term. (Red 13")

1шт.

36

A14735

WIRE - warning lt. to st. switch (Black 17")

1шт.

37

A13753

WIRE - horn & wiper conn. (Black 3")

1шт.

38

A8210

CONNECTOR, ELEC

CONNECTOR - 3 wire

1шт.

39

A13754

ELECTRICAL WIRE

WIRE - light sw. to conv. temp. ga. (Black 9")

1шт.

40

A9348

BLOCK - wire terminal

2шт.

41

A12430

HOUSING

DRIVE ASSY. - tachometer

1шт.

42

A13200

CABLE

- drive

1шт.

43

A26696

NO LONGER SERVICED

CLIP - tachometer drive

1шт.

44

A27033

CLIP - tachometer drive

2шт.

45

A8216

TUBE

- converter oil pressure

1шт.

46

222-20

CONNECTOR, ELEC,3/8"-24 x 1/8" NPTF

CONNECTOR - press. tube, 1/8" tube x 1/8" P.T.

1шт.

47

175-428

SCREW,Phil Truss Hd, 1/4" - 20 x 5/8"

- mach., 1/4 x 5/8" N.C. Philips hd.

4шт.

48

131-118

NUT - cage, 1/4" N.C.

4шт.
