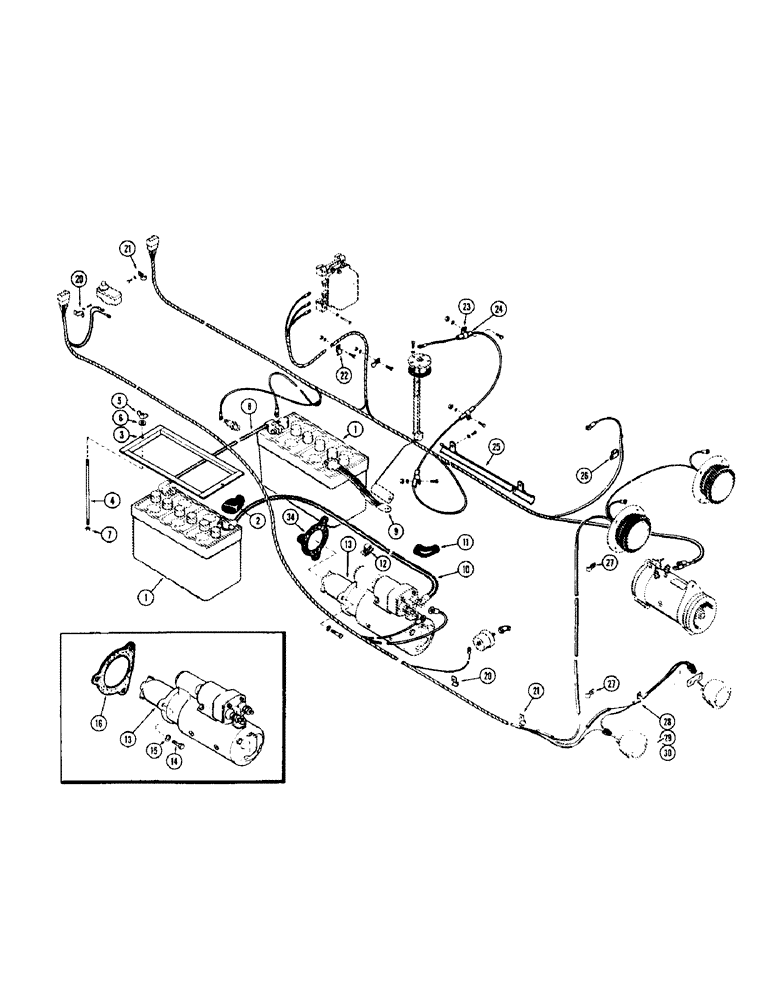

Запчасти Case W10 (056) - BATTERY AND STARTING MOTOR (04) - ELECTRICAL SYSTEMS

1

A14759

X

BATTERY - (Auto-Lite #14H-90)

2шт.

2

A27072

COVER

- battery terminal

2шт.

3

A14764

FRAME - battery hold-down

2шт.

4

A12357

STUD

BOLT - battery frame

4шт.

5

129-410

WING NUT,3/8"-16

NUT - wing, 3/8" N.C.

2шт.

6

A16769

WASHER

- hold-down bolt

4шт.

7

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

4шт.

8

A7440

CABLE

- jumper, battery

1шт.

9

A27069

CABLE

-, Serial Range: battery-ground

1шт.

10

A15514

CABLE - battery to starter solenoid

1шт.

11

A21753

CAP

NIPPLE - battery, Serial Range: cable-solenoid

1шт.

12

A26696

NO LONGER SERVICED

CLIP - battery cable

2шт.

13

A15485

STARTING MOTOR

- (Repairs Figure 54)

1шт.

14

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

14

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2 x 2-1/2" N.C. hex. hd.

1шт.

15

92-8

LOCK WASHER,1/2"

3шт.

16

A27933

GASKET

- starter mounting

1шт.

20

A10852

CLIP - L.H. rear harness, electrical system hardware

2шт.

21

A10852

CLIP - R.H. rear harness, electrical system hardware

3шт.

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- 5/16 x 5/8" N.C. hex. hd., electrical system hardware

5шт.

22

A7922

CLIP

- wire, voltage regulator, electrical system hardware

2шт.

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

Electrical system hardware Hex, 1/4"-20 x 5/8", G5, Full Thd

2шт.

23

A26649

CLIP - wire, fuel gauge sender, electrical system hardware

3шт.

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

Electrical system hardware Hex, 1/4"-20 x 5/8", G5, Full Thd

3шт.

24

A12458

SLEEVE

LOOM - wire to clip, electrical system hardware

3шт.

25

A28674

CONDUIT - wire harness to engine, electrical system hardware

1шт.

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

Electrical system hardware Hex, 5/16"-18 x 1/2", G5, Full Thd

2шт.

26

A26814

CLIP - wire, engine temp. sender, electrical system hardware

1шт.

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

Electrical system hardware Hex, 1/4"-20 x 5/8", G5, Full Thd

1шт.

27

A28019

CLIP - wire, rear & tail lamp, electrical system hardware

2шт.

14-416

SCREW,Hex, 1/4" - 28 x 1", Gr 5

BOLT, Hex, 1/4"-28 x 1, G5, Full Thd, Electrical system hardware

2шт.

28

A27814

X

CLIP - wire, stop & tail light (To frame), electrical system hardware

1шт.

29

A7922

CLIP

- wire, stop & tail light (To baffle), electrical system hardware

1шт.

30

A12548

HOSE

LOOM - wire clip, electrical system hardware

2шт.
