Запчасти Case W10 (054) - STARTING MOTOR (04) - ELECTRICAL SYSTEMS

A15485

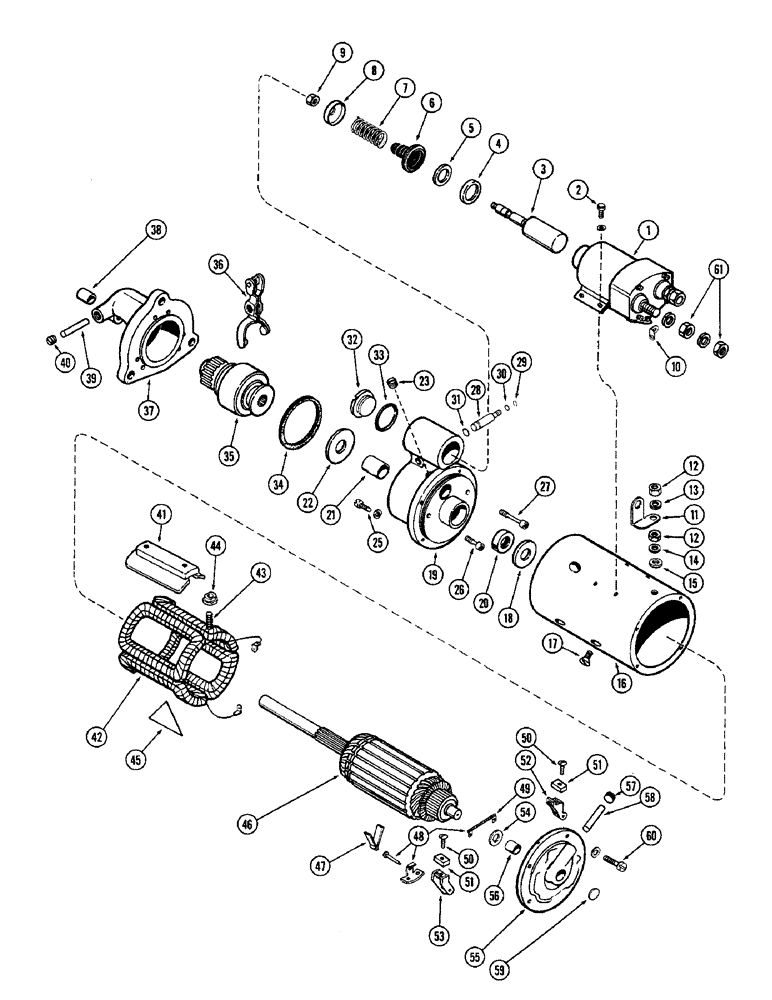

STARTING MOTOR

MOTOR ASSY. - starting, Includes: Ref. 1 - 61

1шт.

104213A1R

REMAN-STARTER

Remanufactured Starter

1шт.

104213A1C

CORE-STARTER

Return Number, Starter

1шт.

1

A15358

SOLENOID

SWITCH ASSY. - solenoid

1шт.

2

R15139

WASHER

SPARE PART BOLT - solenoid mounting

4шт.

3

R21568

PLUNGER

PLUNGER - solenoid

1шт.

4

R21572

RETAINER

RETAINER - plunger spring

1шт.

5

A42063

WASHER - retainer

1шт.

6

A21576

HOSE,1.25" ID x 25.00"

BOOT - plunger

1шт.

7

R21569

X

SPRING - plunger

1шт.

8

R21571

RETAINER

RETAINER - spring

1шт.

9

131-31

LOCK NUT,5/16"-24, G8

NUT - adjusting, 5/16" N.F. hex.

1шт.

10

R15161

CONNECTOR, ELEC

CONNECTOR CONNECTOR - ground solenoid

1шт.

11

D32480

SPARE PART CONNECTOR -, Serial Range: terminal-solenoid

1шт.

12

R15014

NUT

NUT - terminal

2шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

14

R15013

WASHER

WASHER - terminal, plain

1шт.

15

A42010

WASHER

WASHER - insulatinng

1шт.

16

NSS

NOT SOLD SEPARAT

HOUSING - armature & coil (Order A15485)

1шт.

17

74-610

SCREW,3/8" - 24 x 5/8"

SCREW - pole shoe, 3/8 x 5/8" N.F flat hd.

8шт.

18

R21583

WASHER

WASHER - spacer, armature

1шт.

19

R21579

HOUSING

HOUSING ASSY. - shift lever, Includes: Ref. 20 - 23

1шт.

20

A21582

RING, SET

SEAL - oil, lever housing

1шт.

21

R21580

BUSHING

BUSHING - lever housing

1шт.

22

R15145

DISC

WASHER - brake

1шт.

23

221-1041

PLUG

PLUG - pipe, 1/8" P.T. slotted

1шт.

25

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

BOLT, , Lever housing Hex, 1/4"-28 x 1", G5

4шт.

26

D32488

HEX SOC SCREW,5/16" - 18 x 1.50"

BOLT - drive end (Short)

1шт.

27

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - drive end (Long)

5шт.

28

R21564

X

STUD - shift lever

1шт.

29

G46146

SNAP RING,#37, Ext

Ring, Snap, , lever stud #37, Ext

1шт.

30

R21574

O-RING,0.244" ID x 0.391" OD x 0.073"

"O" RING - small, lever stud

1шт.

31

R21573

O-RING,0.369" ID x 0.515" OD x 0.073"

"O" RING - large, shift stud

1шт.

32

R21587

PLUG

PLUG - lever housing

1шт.

33

A41924

GASKET

GASKET - plug

1шт.

34

R21562

GASKET

GASKET - lever housing to drive housing

1шт.

35

R21589

DRIVE

DRIVE ASSY. - starter (Bendix)

1шт.

36

D32547

LEVER

LEVER - shift (Replaces R21563)

1шт.

37

A40283

HOUSING

HOUSING ASSY. - drive end, Includes: Ref. 38 - 40

1шт.

38

A40893

BUSHING

BUSHING - drive housing

1шт.

39

R15023

WICK

WICK - oil

1шт.

40

221-1041

PLUG

PLUG - pipe, 1/8" P.T. slotted

1шт.

41

R15115

SHOE

SHOE - pole

4шт.

42

R21557

COIL ASSY.

COIL ASSY. - field

1шт.

43

R15017

STUD

STUD - terminal

1шт.

44

R15010

BUSHING

BUSHING - insulator, terminal stud

1шт.

45

A41977

RUBBER INSULATOR

INSULATOR - field coil

1шт.

46

A40909

ARMATURE

ARMATURE ASSY.

1шт.

47

R15025

SPRING

SPRING - brush

2шт.

48

R15029

BRUSH

REPAIR KIT - brush holder, Includes: Ref. 49

1шт.

49

R15030

ELECTRICAL WIRE

WIRE LEAD - ground

1шт.

50

D32481

SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW

SCREW - brush attaching

4шт.

51

R15024

BRUSH, COMMUTATOR

BRUSH BRUSH - armature

4шт.

52

R15027

HOLDER

HOLDER - brush, insulated

2шт.

53

A40217

HOLDER

HOLDER - brush, ground

2шт.

54

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

WASHER - spacer, comm. end

1шт.

55

R21559

FRAME

END ASSY. - commutator, Includes: Ref. 56 - 59

1шт.

56

R15020

BUSHING

BUSHING - commutator end

1шт.

57

221-1041

PLUG

PLUG - pipe, 1/8" P.T. slotted

1шт.

58

R15023

WICK

WICK - oil

1шт.

59

R15021

PLUG

PLUG - expansion

1шт.

60

R21578

SCREW

SCREW - end plate

4шт.

61

129-292

X,1/2"-13, G5, Hvy

NUT - 1/2" N.C. hex. (Plated)

4шт.
