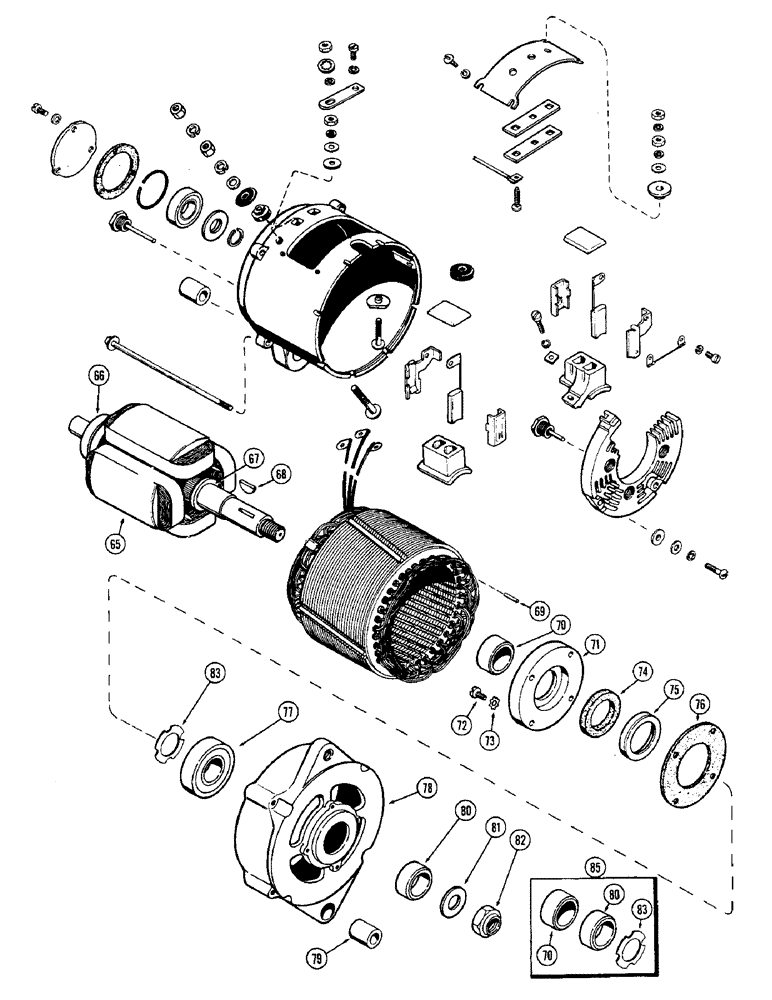

Запчасти Case W10 (053A) - ALTERNATOR (04) - ELECTRICAL SYSTEMS

A18417

ALTERNATOR ASSY. Includes: Ref. 65 - 83 and Ref. 1 - 62 on figure 52

1шт.

65

A25508

ROTOR ASSY., Includes: Ref. 66 and 67

1шт.

66

A25981

RING - slip, rotor

1шт.

67

NSS

NOT SOLD SEPARAT

RING - retainer

1шт.

68

128-115

KEY - rotorshaft (Woodruff #8)

1шт.

69

R15095

PIN - dowel, stator assy.

1шт.

70

A42111

COLLAR - inner spacer (See ref. 85)

1шт.

71

A25517

PLATE - retainer, drive end bearing

1шт.

72

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- #10-32 x 7/16" rd. hd.

4шт.

73

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

4шт.

74

A42099

WASHER - felt, drive bearing

1шт.

75

A25475

RETAINER - felt washer

1шт.

76

A25492

GASKET - bearing retainer

1шт.

77

A25477

BEARING, BALL

BEARING - ball, drive end

1шт.

78

A25507

FRAME ASSY. - drive end, Includes: Ref. 79

1шт.

79

A42108

BUSHING - hinge

1шт.

80

A42112

COLLAR - outer space (See ref. 85)

1шт.

81

A42103

WASHER - shaft nut

1шт.

82

A25995

NUT

- rotor shaft

1шт.

83

A42120

SLINGER - oil (See ref. 85)

1шт.

85

A42122

KIT - repair, alternator (Incl. ref. 70, 80, & 83)

1шт.
