Запчасти Case W10 (052) - ALTERNATOR (04) - ELECTRICAL SYSTEMS

A18417

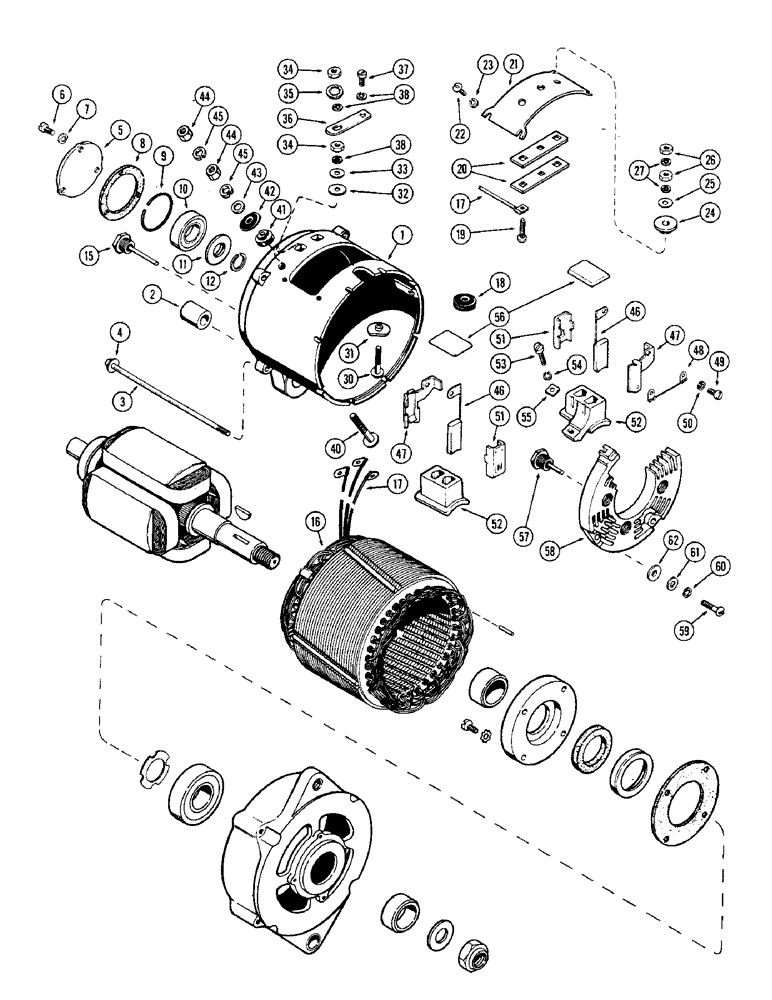

ALTERNATOR ASSY. - (Delco-Remy #117096), Includes: Ref. 1 - 62 and Ref. 65 - 83 on figure 53A

1шт.

1

A25509

FRAME ASSY. - slip ring end, Includes: Ref. 2

1шт.

2

A42109

BUSHING - mounting hinge

1шт.

3

A25513

BOLT - thru, end frame

4шт.

4

A42113

DAMPENER - thru bolt

4шт.

5

A25515

COVER - end frame

1шт.

6

173-226

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

- #8-32 x 3/8" rd. hd.

3шт.

7

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

3шт.

8

A42114

GASKET - end cover

1шт.

9

A42110

CLMAP - bearing retainer

1шт.

10

A25476

BEARING

- ball, slip ring end

1шт.

11

A41030

SKELETON ENGINE

COLLAR - bearing spacer

1шт.

12

A25501

RING - snap, slip end roller

1шт.

15

A25499

DIODE

- negative

1шт.

16

A25518

STATOR ASSY., Includes: Ref. 17 and 18

1шт.

17

A25505

LEAD ASSY. - stator terminal

1шт.

18

A42115

GROMMET - stator lead

1шт.

19

A25512

STUD - stator terminal

3шт.

20

A42117

INSULATOR - terminal plate, stator

2шт.

21

A42119

PLATE - cover, stator terminal

1шт.

22

173-210

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

- #10-24 x 3/8" rd. hd.

4шт.

23

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

24

A42104

BUSHING - insulator, stator term.

3шт.

25

A42102

WASHER - plain, stator terminal

3шт.

26

129-661

NUT

- brass, #10-32 hex.

6шт.

27

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

6шт.

30

A25486

STUD - battery terminal

1шт.

31

A42105

BUSHING - anti-turn, batt. term.

1шт.

32

A42106

BUSHING - insulator, batt. term.

1шт.

33

A42100

WASHER

- plain, battery terminal

1шт.

34

129-121

NUT,1/4"-28, G5

2шт.

35

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER - lock, 5/16" int. Shakeproof

1шт.

36

A25487

CONNECTOR - battery ground

1шт.

37

173-201

SCREW,Rnd Hd, 1/4" - 20 x 1/2"

- 1/4 x 1/2" N.C. rd. hd.

1шт.

38

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

40

A40702

STUD

- field terminal

2шт.

41

NSS

NOT SOLD SEPARAT

BUSHING - insulating, field term.

2шт.

42

R16148

WASHER

- insulating, field term.

2шт.

43

A41927

WASHER

- plain, field terminal

2шт.

44

129-670

NUT - jam, #12-24 hex.

4шт.

45

192-17

LOCK WASHER,#12

Washer, Lock, #12

4шт.

46

A40734

BRUSH - contact

4шт.

47

A25504

HOLDER - spring, brush

4шт.

48

A42118

LEAD ASSY. - brush connector

2шт.

49

173-224

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- #8-32 x 1/4" rd. hd.

4шт.

50

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

4шт.

51

A42116

INSERT - brush holder

4шт.

52

A25502

HOLDER - brush

2шт.

53

173-202

SCREW,Rnd Hd, 1/4" - 20 x 3/4"

- 1/4 x 3/4" N.C. rd. hd.

2шт.

54

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

55

A42101

WASHER - square, brush holder

2шт.

56

A25503

COVER - brush holder

2шт.

57

A25498

DIODE - positive

1шт.

58

A25510

SINK - heat

1шт.

59

174-218

SCREW - #10-32 x 7/8" rd. hd.

2шт.

60

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

61

A42102

WASHER - plain, sink mounting

2шт.

62

A42107

BUSHING - insulating, sink mounting

4шт.
