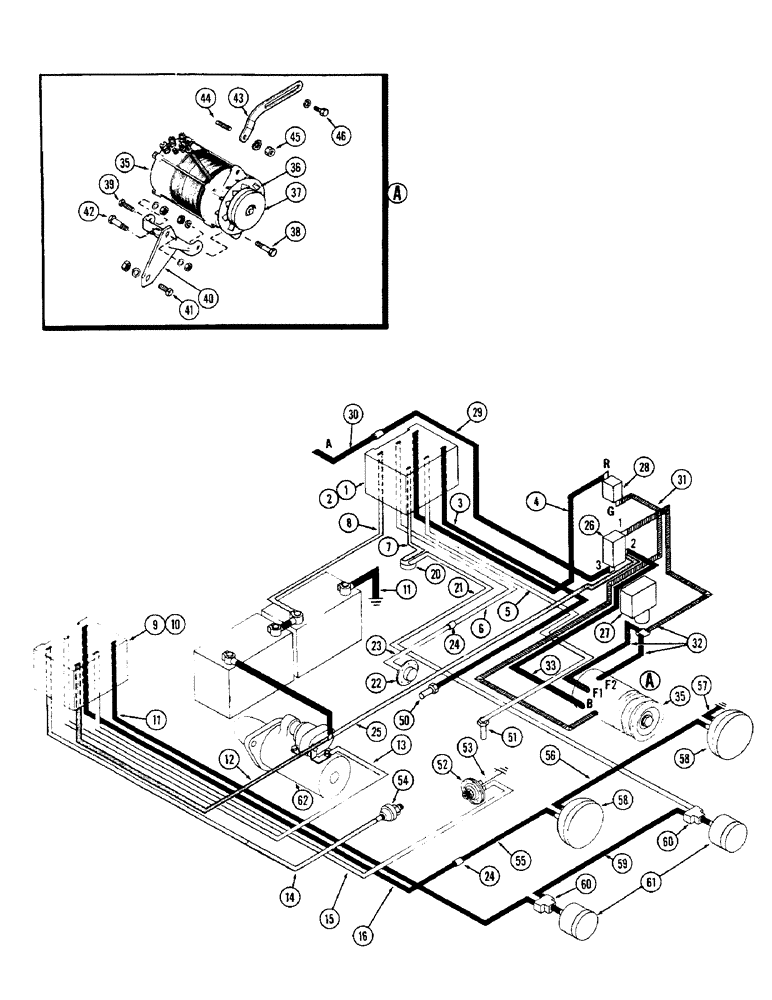

Запчасти Case W10 (050) - ALTERNATOR ELECTRICAL SYSTEM (04) - ELECTRICAL SYSTEMS

1

A18428

WIRE HARNESS ASSY. - R.H. rear, Includes: Ref. 2 - 8

1шт.

2

A13777

PLUG - connector

1шт.

3

NSS

NOT SOLD SEPARAT

WIRE - convertor temp. sender (Black 65")

1шт.

4

NSS

NOT SOLD SEPARAT

WIRE - relay "R" term. (Black 91")

1шт.

5

NSS

NOT SOLD SEPARAT

WIRE - engine temp. sender (White 133")

1шт.

6

NSS

NOT SOLD SEPARAT

WIRE - fuel gauge sender (White 80")

1шт.

7

NSS

NOT SOLD SEPARAT

WIRE - stop light switch (Red 43")

1шт.

8

NSS

NOT SOLD SEPARAT

WIRE - battery positive term. (Red 47")

1шт.

9

A14741

WIRE HARNESS ASSY. - L.H. rear, Includes: Ref. 10 - 16

1шт.

10

A13777

PLUG - connector

1шт.

11

NSS

NOT SOLD SEPARAT

WIRE - tail light (Black 122")

1шт.

12

NSS

NOT SOLD SEPARAT

WIRE - starter solenoid "B" term. (Red 85")

1шт.

13

NSS

NOT SOLD SEPARAT

WIRE - starter solenoid "S" term. (White 86")

1шт.

14

NSS

NOT SOLD SEPARAT

WIRE - engine oil press. sender (Red 82")

1шт.

15

NSS

NOT SOLD SEPARAT

WIRE - air clener switch (White 128")

1шт.

16

NSS

NOT SOLD SEPARAT

WIRE - rear lamp connector (Black 140")

1шт.

20

A12491

SWITCH

ASSY - brake, stop light

1шт.

21

A14754

WIRE - switch to stop light (White 111")

1шт.

22

A14353

SENDER - fuel gauge

1шт.

23

A13793

WIRE - fuel gauge sender to conn. (White 10")

1шт.

24

A27213

CONNECTOR - 2 wire

2шт.

25

A18427

WIRE - starter solenoid to relay (Red 39")

1шт.

26

L11509

RELAY

- field (Replaces A18431)

1шт.

27

A55703

REGULATOR

- voltage (Replaces A18430)

1шт.

28

A18432

RELAY - indicator

1шт.

29

A8212

WIRE - relay to conn. plug (Black 80-1/2")

1шт.

30

A11945

WIRE - relay wire to st. switch (Black 12")

1шт.

31

A18434

WIRE - indicator relay to alternator (Red 62")

1шт.

32

A56185

PLUG ASSY. - regulator wires

1шт.

33

A18429

WIRE - field relay to alternator (Red 50")

1шт.

35

A18417

ALTERNATOR - generator (Repairs Figure 52)

1шт.

36

A18424

FAN - alternator

1шт.

37

A18423

PULLEY - drive, alternator

1шт.

38

14-720

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5, Full Thd

- 7/16 x 1-1/4" N.F. hex. hd.

1шт.

39

14-728

BOLT,Hex, 7/16" - 20 x 1-3/4", Gr 5

- 7/16 x 1-3/4" N.F. hex. hd.

1шт.

40

A18418

BRACKET

- altenator mounting

1шт.

41

14-1236

BOLT,Hex, 3/4" - 16 x 2-1/4", Gr 5, Full Thd

- 3/4 x 2-1/2" N.F. hex.

1шт.

42

A7442

BOLT - shoulder, bracket mounting

1шт.

43

A18425

STRAP - adjusting, alternator drive belt

1шт.

44

A7391

STUD

- adjusting strap

1шт.

45

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

1шт.

46

193-520

BOLT - 3/8 x 7/8" N.C. hex. (Includes L.W.)

1шт.

50

A13795

SENDER UNIT

SENDER - converter temperature

1шт.

51

A21462

SENDER UNIT

SENDER - engine temperature

1шт.

52

A14739

SWITCH - air cleaner warning

1шт.

53

A26893

WIRE - switch ground (Black 6-1/2")

1шт.

54

A13794

TRANSMITTER

SENDER - engine oil pressure

1шт.

55

A15948

ELECTRICAL WIRE

WIRE - conn. to L.H. rear lamp (Black 46")

1шт.

56

A16367

ELECTRICAL WIRE

WIRE - cross, rear lamp (Black 20")

1шт.

57

A15941

ELECTRICAL WIRE

WIRE - ground (Black 5")

1шт.

58

A15932

X

LAMP ASSY. - (Order from figure 62)

4шт.

59

A13252

ELECTRICAL WIRE

WIRE - cross, stop & tail lamp (Black 18")

1шт.

60

A8210

CONNECTOR, ELEC

CONNECTOR - 3 wire

2шт.

61

L11000

INTERIOR LIGHT

LAMP - stop & tail (Order from Figure 64)

2шт.

62

A15485

STARTING MOTOR

STARTER ASSY. - (Order from Figure 56)

1шт.
