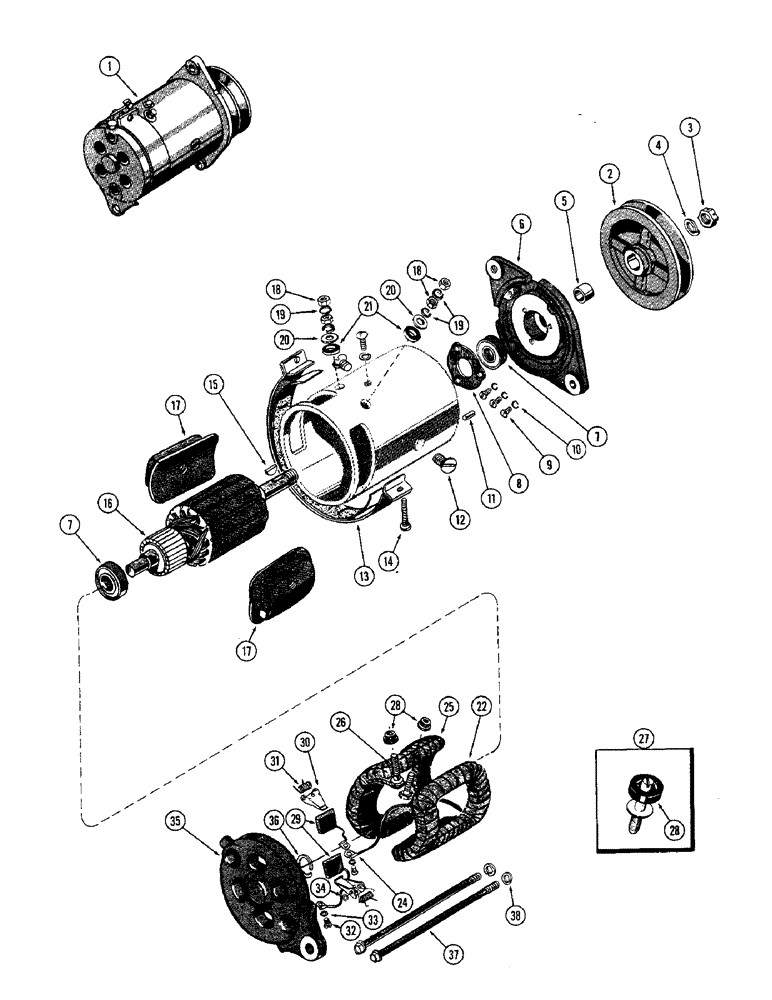

Запчасти Case W10 (048) - GENERATOR (04) - ELECTRICAL SYSTEMS

1

A22682

GENERATOR

- (Delco #1105220), Includes: Ref. 2 - 38

1шт.

1

A21125

X

GENERATOR - (Delco #1105207) Order A22682, Includes: Ref. 2 - 38

1шт.

2

A21126

PULLEY

- drive

1шт.

3

A25546

NUT

- pulley

1шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

5

R16166

BUSHING

COLLAR - drive end housing

1шт.

6

A25446

HOUSING - drive end (For A22682)

1шт.

6

R15098

HOUSING - drive end (For A21125)

1шт.

7

R18193

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - ball (For A22682)

1шт.

7

R15094

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - ball (For A21125)

1шт.

8

R15101

PLATE

- bearing retainer

1шт.

9

A41959

SCREW,#10 - 32 x 3/8"

- retainer plate

3шт.

10

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

11

R15095

PIN - dowel, housing locating

2шт.

12

74-612

SCREW,3/8" - 24 x 3/4"

- pole, 3/8 x 3/4" N.F. flat hd.

2шт.

13

R15096

BAND - body cover, Includes: Ref. 14

1шт.

14

173-270

SCREW - #10-24 x 1-1/4" rd. hd.

1шт.

15

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

Pulley #5, 1/8" x 5/8", HT

1шт.

16

A40628

ARMATURE - generator

1шт.

17

R15075

SHOE - pole

2шт.

18

129-18

NUT,#12-24

- term. stud, #12-N.C. hex.

4шт.

19

192-17

LOCK WASHER,#12

Washer, Lock, #12

4шт.

20

R15079

WASHER

- plain, term. stud

2шт.

21

R15078

WASHER - insulator, term. stud

2шт.

22

R15083

COIL

ASSY. - field, R.H., Includes: Ref. 24

1шт.

24

R15085

CLIP -, Serial Range: terminal-brush

1шт.

25

R15081

COIL ASSY. - field, L.H., Includes: Ref. 26

1шт.

26

NSS

NOT SOLD SEPARAT

STUD - terminal (Order A40702)

1шт.

27

A40702

STUD

ASSY. - field terminal, Includes: Ref. 28

2шт.

28

NSS

NOT SOLD SEPARAT

BUSHING - insulator (Order A40702)

1шт.

29

R4286

BRUSH, COMMUTATOR

BRUSH - main

2шт.

30

R15090

ARM

- main brush

2шт.

31

A41420

SPRING - brush arm (Replaces R15089)

2шт.

32

173-223

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

- brush wire, #6-32 x 1/4" rd. hd.

2шт.

33

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

2шт.

34

R15091

WASHER - spacer, brush arm

2шт.

35

R15086

FUNNEL

HOUSING - commutator end, Includes: Ref. 36

1шт.

36

R15087

CLAMP - bearing (Rubber)

1шт.

37

R15106

BOLT

- thru, end housing

2шт.

38

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.
