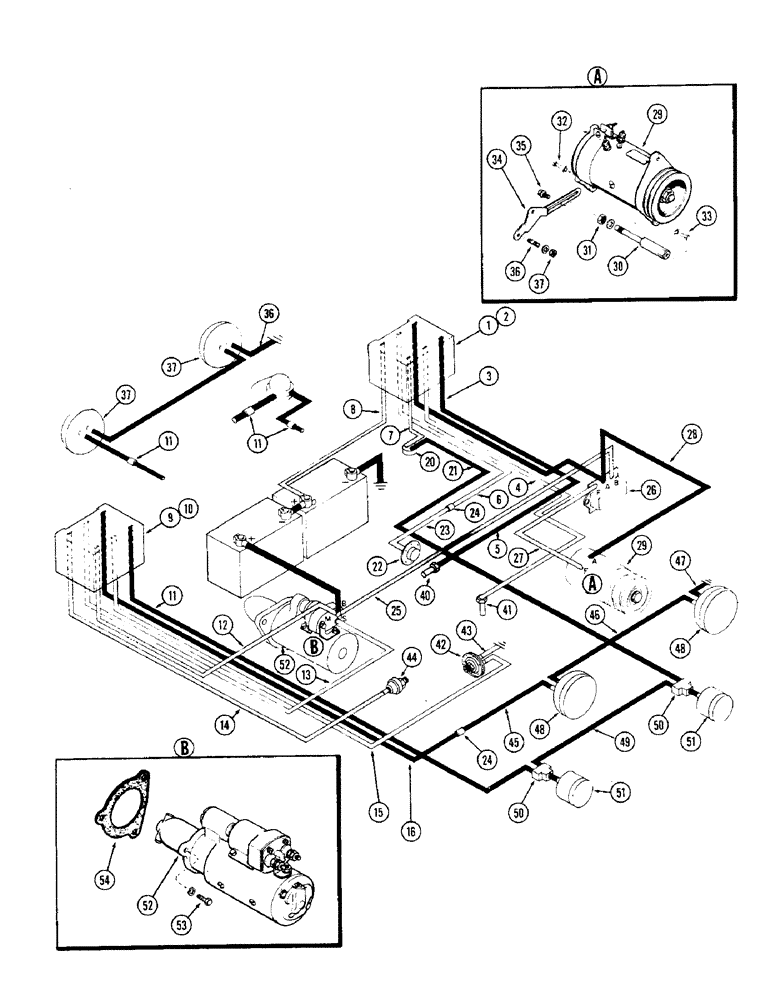

Запчасти Case W10 (046) - GENERATOR ELECTRICAL SYSTEM (04) - ELECTRICAL SYSTEMS

1

A14740

WIRE HARNESS ASSY. - R.H. rear, Includes: Ref. 2 - 8

1шт.

2

A13777

PLUG - connector

1шт.

3

NSS

NOT SOLD SEPARAT

WIRE - voltage regulator (Black 79")

1шт.

4

NSS

NOT SOLD SEPARAT

WIRE - eng. temp. sender (White 133")

1шт.

5

NSS

NOT SOLD SEPARAT

WIRE - conv. oil temp. sender (Black 65")

1шт.

6

NSS

NOT SOLD SEPARAT

WIRE - fuel gauge sender (White 67")

1шт.

7

NSS

NOT SOLD SEPARAT

WIRE - stop light switch (Red 43")

1шт.

8

NSS

NOT SOLD SEPARAT

WIRE - battery positive term. (Red 42")

1шт.

9

A14741

WIRE HARNESS ASSY. - L.H. rear, Includes: Ref. 10 - 16

1шт.

10

A13777

PLUG - connector

1шт.

11

NSS

NOT SOLD SEPARAT

WIRE - tail lamp (Black 122")

1шт.

12

NSS

NOT SOLD SEPARAT

WIRE - starter solenoid "B" term. (Red 85")

1шт.

13

NSS

NOT SOLD SEPARAT

WIRE - starter solenoid "S" term. (White 86")

1шт.

14

NSS

NOT SOLD SEPARAT

WIRE - eng. oil press. sender (Red 82")

1шт.

15

NSS

NOT SOLD SEPARAT

WIRE - air cleaner switch (White 128")

1шт.

16

NSS

NOT SOLD SEPARAT

WIRE - rear lamp (Black 140")

1шт.

20

A12491

SWITCH

ASSY - brake, stop light

1шт.

21

A14754

WIRE - switch to stop light (White 111")

1шт.

22

A14353

SENDER - fuel gauge

1шт.

23

A13793

WIRE - fuel gauge sender to conn. (White 10")

1шт.

24

A27213

CONNECTOR - 2 wire

2шт.

25

A14781

WIRE - solenoid to regulator "B" term. (Red 45")

1шт.

26

A14760

X

REGULATOR - voltage (Order A40780 regulator and D32596 rubber mounting)

1шт.

26

A40780

REGULATOR

- voltage (Minus rubber mtg.)

1шт.

D32956

MOUNTING - rubber (Not shown)

1шт.

A14761

PLATE - regulator mounting (Not shown)

1шт.

27

A14763

WIRE - reg. to generator "F" term. (Red 52")

1шт.

28

A14762

WIRE - reg. to generator "A" term. (Black 55")

1шт.

29

A21125

X

GENERATOR - (Delco #1105207) (Order A22682)

1шт.

29

A22682

GENERATOR

- (Delco #1105220) Repairs Figure 48

1шт.

30

A21101

CARRIER - A21125 generator

1шт.

30

A22683

CARRIER

- A22682 generator

1шт.

31

25-1112

NUT,3/4"-16, G5

- 3/4" N.F. hex.

1шт.

32

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8 x 1-1/4" N.F. hex. (1 w/A22683)

2шт.

33

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

- 1/2 x 1-1/2" N.F. hex. (w/A22683 only)

1шт.

34

A20750

STRAP - generator adjusting

1шт.

35

193-520

BOLT - 3/8 x 7/8" N.C. hex. (Incl. l.w.)

1шт.

36

A7391

STUD

- adj. strap

1шт.

37

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

1шт.

40

A13795

SENDER UNIT

SENDER - convertor temperature

1шт.

41

A21462

SENDER UNIT

SENDER - engine temperature

1шт.

42

A14739

SWITCH - air cleaner warning

1шт.

43

A26893

WIRE - switch ground (Black 6-1/2")

1шт.

44

A13794

TRANSMITTER

SENDER - engine oil pressure

1шт.

45

A15948

ELECTRICAL WIRE

WIRE - conn. to L.H. rear lamp (Black 46")

1шт.

46

A16367

ELECTRICAL WIRE

WIRE - cross, rear lamp (Black 20")

1шт.

47

A15941

ELECTRICAL WIRE

WIRE - ground (Black 5")

1шт.

48

A15932

X

LAMP ASSY. - (Order from Figure 62)

4шт.

49

A13252

ELECTRICAL WIRE

WIRE - cross, stop & tail lamp (Black 18")

1шт.

50

A8210

CONNECTOR, ELEC

CONNECTOR - 3 wire

2шт.

51

L11000

INTERIOR LIGHT

LAMP - stop & tail (Order from Figure 64)

2шт.

52

A15485

STARTING MOTOR

STARTER ASSY. - (Order from Figure 56)

1шт.

53

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

53

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2 x 2-1/2" N.C. hex.

1шт.

54

A27933

GASKET

- starter mounting

1шт.
