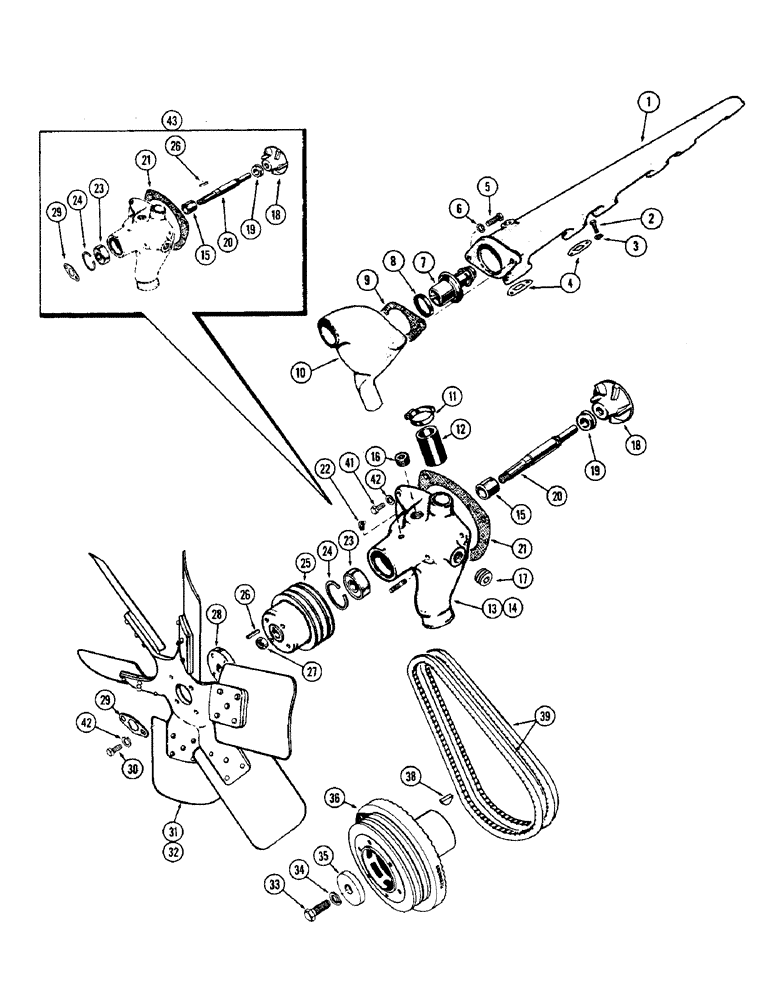

Запчасти Case W10 (042) - WATER PUMP AND MANIFOLD (02) - ENGINE

1

A11419

HOSE ASSY.

MANIFOLD - water

1шт.

2

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

12шт.

3

92-5

LOCK WASHER,5/16"

12шт.

4

A27905

GASKET

- water manifold

6шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

6

92-6

LOCK WASHER,3/8"

2шт.

7

A7634

THERMOSTAT

- (180 degrees to 195 degrees F)

1шт.

8

A11423

SEAL

- thermostat

1шт.

9

A11421

GASKET

- thermostat housing

1шт.

10

A11420

HOUSING - thermostat

1шт.

11

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

12

A11887

HOSE,1.50" ID x 2.75", SAE 20R2

- Water by-pass 1.50" ID x 2.75", SAE 20R2

1шт.

13

A24809

PUMP

ASSY. - water, complete, Includes: Ref. 14 - 24

1шт.

14

A24992

THRUST WASHER

BODY ASSY. - pump, Includes: Ref. 15 - 17

1шт.

15

A27900

BUSHING

- pump shaft

1шт.

16

221-1843

PLUG

FITTING - 3/8" P.T. socket hd.

1шт.

17

221-1845

DRAIN PLUG,Hex Soc, 3/4"-14, NPTF

PLUG - 3/4" P.T. socket hd.

1шт.

18

A26299

IMPELLER

- pump

1шт.

19

A24995

SEAL

- pump shaft

1шт.

20

A23636

SHAFT

- drive (Has 1-1/4" lg. keyway)

1шт.

20

A21458

X

SHAFT - drive (Has 2" lg. keyway) Order A23636 shaft & A21075 key

1шт.

21

A27889

GASKET - pump mounting

1шт.

22

219-54

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. 67-1/2 degrees

1шт.

23

A27152

BALL BEARING,19.99mm ID x 52mm OD x 19mm W

BEARING - pump shaft

1шт.

24

A27150

RING

- snap, Serial Range: bearing-body

1шт.

25

A21454

PULLEY - fan & pump drive

1шт.

26

A21075

KEY

- pulley (3/16 x 5/8" lg.) See ref. 20

1шт.

26

A27001

KEY

- pulley (3/16 x 1-3/8") See ref. 20

1шт.

27

A15488

NUT -, Serial Range: pulley-shaft

1шт.

28

A15505

SPACER - fan, suction type

1шт.

28

A15608

SPACER - fan, pusher type

1шт.

29

A26707

LOCK

- fan bolt

1шт.

30

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

Suction fan Hex, 3/8"-16 x 2 1/4", G5

4шт.

30

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Pusher fan Hex, 3/8"-16 x 1 3/4", G5

4шт.

31

A23106

HALF BLADE

FAN - suction type

1шт.

32

A15520

FAN

- pusher type

1шт.

33

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

Lower pulley to crankshaft Hex, 5/8"-18 x 1 1/2", G5

1шт.

34

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

35

A23229

WASHER

- lower pulley

1шт.

36

A15486

PULLEY

- lower, fan & pump drive

1шт.

38

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Pulley to crankshaft #C, 5/16" x 1 1/8", HT

1шт.

39

A21647

BELT,51.00" L

(Set of 2), w/generator 51.00" L

1шт.

40

A18426

SET OF BELTS,53.00" L

SET OF 2 BELTS , w/alternator 53.00" L

1шт.

41

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Pump mounting Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

42

92-6

LOCK WASHER,3/8"

3шт.

43

A24180

KIT

REPAIR KIT - water pump (Includes ref. 15, 18, 19, 20, 21, 23, 24, 26, & 29)

1шт.
