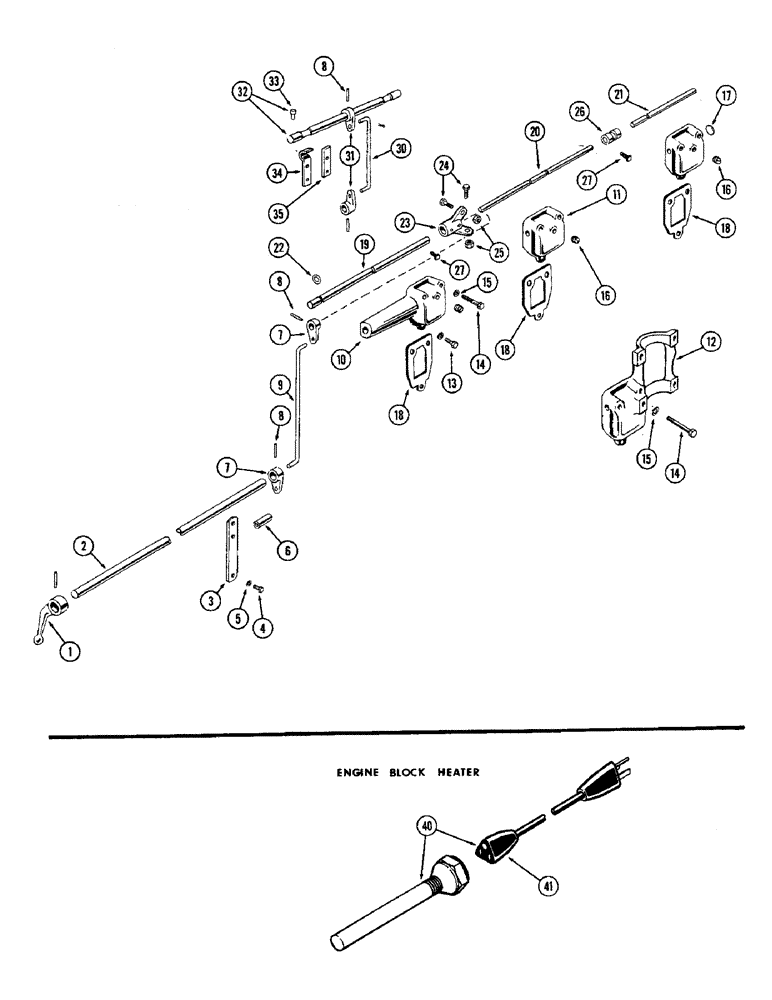

Запчасти Case W10 (040) - DECOMPRESSOR (02) - ENGINE

1

A7542

LEVER - hand, decompressor control

1шт.

2

A14478

SHAFT - hand lever

1шт.

3

A12461

BRACKET - support, level shaft

1шт.

4

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

5

92-6

LOCK WASHER,3/8"

2шт.

6

A14479

SPACER - lever shaft

1шт.

7

A7541

LEVER - control link

2шт.

8

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

8шт.

9

A14480

LINK - control lever

1шт.

10

A20680

HOUSING - front, control lever

1шт.

11

A26296

HOUSING - control lever (Only 1 used after loader SN 8162900)

2шт.

12

A22183

HOUSING & BRACKET - rear, control lever (1st used loader SN 8162900)

1шт.

13

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

14

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- 5/16 x 1-3/4" N.C. hex. hd.

6шт.

15

92-5

LOCK WASHER,5/16"

9шт.

16

221-1041

PLUG

- 1/8" P.T. slotted

3шт.

17

41-12

PLUG,Exp, 3/4"

- expansion (3/4" dia.) (Prior to SN 8162900 only)

1шт.

18

A22939

GASKET

- housing

3шт.

19

A20679

SHAFT - control, front

1шт.

20

A27890

SHAFT - control, intermediate

1шт.

21

A27889

SHAFT - control, rear

1шт.

22

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O" RING - control shaft

5шт.

23

A26309

COUPLING - stop, control shaft

1шт.

24

181-420

SCREW - set, 1/4 x 1" N.C. sq. hd. oval pt.

2шт.

25

25-104

NUT,1/4"-20, G5

2шт.

26

A27893

COUPLING - control shaft

1шт.

27

A27892

SET SCREW,1/4" - 20 x 7/8"

- set, Serial Range: coupling-shaft

2шт.

30

A27890

LINK - control, upper shaft

1шт.

31

A26326

LEVER - decompressor control

6шт.

32

A23096

SHAFT ASSY. - upper, Includes: Ref. 33

3шт.

33

A23095

AXLE PIN

PIN - trip

2шт.

34

A27886

BRACKET

- top, upper shaft

6шт.

35

A27887

BRACKET - bottom, upper shaft

6шт.

40

A40476

HEATER

ASSY. - engine block, Includes: Ref. 41

1шт.

41

A40477

ELECTRICAL WIRE

CARD ASSY. - heater (7 ft.), block

1шт.
