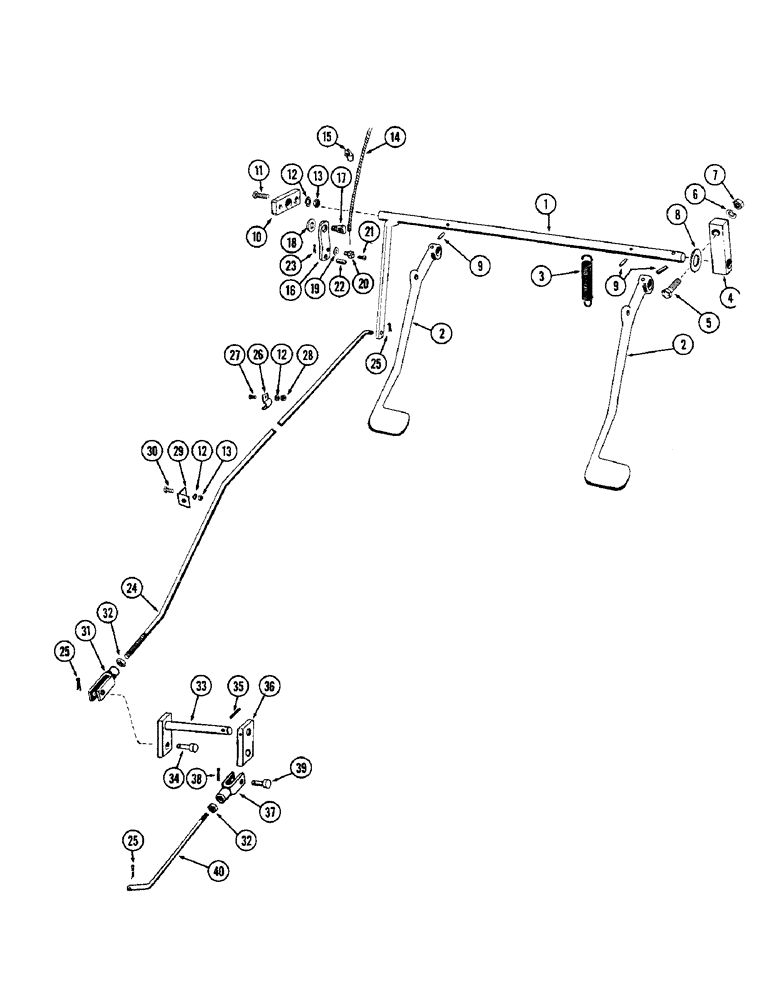

Запчасти Case W10 (038) - THROTTLE LINKAGE (02) - ENGINE

1

A14253

SHAFT - cross, foot pedal

1шт.

2

A12405

PEDAL - foot throttle

2шт.

3

A27688

VALVE SPRING

SPRING - pedal return

1шт.

4

A12409

SUPPORT - cross-shaft R.H.

1шт.

5

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

- hex. hd., 1/2" x 2" N.F.

1шт.

6

92-8

LOCK WASHER,1/2"

1шт.

7

25-118

NUT,1/2"-20, G5

- hex. 1/2" N.F.

1шт.

8

195-41

WASHER,5/8"

1шт.

9

135-133

GROOVED PIN,3/16" x 1", Type A, Hardened

PIN, GROOVED, 3/16" x 1", Type A, Hardened

3шт.

10

A12410

BEARING - end, cross-shaft L.H.

1шт.

11

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

2шт.

12

92-5

LOCK WASHER,5/16"

4шт.

13

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

3шт.

14

A12427

CONTROL BLOCK

CABLE - fuel shutoff, flexible

1шт.

15

A27033

CLIP - retainer, shut-off cable

1шт.

16

A12421

LEVER

- stop control

1шт.

17

A8018

STEP BOLT

STUD - dowel, stop lever

1шт.

18

A26584

WASHER

- spacer, stud

1шт.

19

195-15

WASHER,#12

- plain, 1/4" SAE

1шт.

20

A8281

SWIVEL - pin, cable

1шт.

21

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- mach., #8 x 1/4"

1шт.

22

138-130

LOCK PIN,1/4" x 3/4", Slotted

PIN, 1/4" x 3/4", Slotted

1шт.

23

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) 1/16" x 5/8"

1шт.

24

A14896

ROD - intermediate throttle control

1шт.

25

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

3шт.

26

A27128

CLAMP - interm. throttle rod

1шт.

27

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

1шт.

28

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

29

A15357

GUIDE - interm. throttle rod

1шт.

30

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- hex. hd., 5/16" x 1" N.F.

1шт.

31

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - adjustable, 5/16" light

1шт.

32

25-155

JAM NUT,Jam, 5/16"-24, G5

- jam., 5/16" N.F. hex.

2шт.

33

A14893

SHAFT - cross, throttle rear

1шт.

34

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

35

135-332

GROOVED PIN,5/32" x 3/4", Type F

PIN, Grooved, 5/32" x 3/4", Type F

1шт.

36

A14898

LEVER - throttle control

1шт.

37

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

YOKE - adjustable, 1/4" light

1шт.

38

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

39

141-2

CLEVIS PIN,1/4" x .770"

PIN - clevis, 1/4"

1шт.

40

A14897

ROD - throttle rear

1шт.
