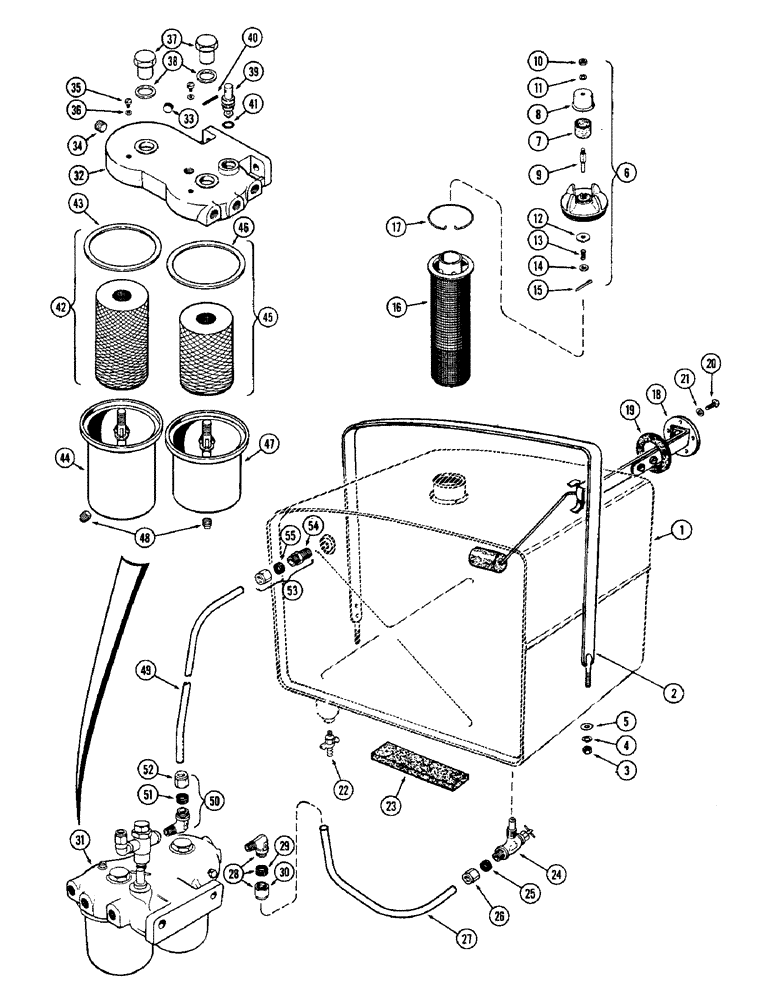

Запчасти Case W10 (036) - FUEL TANK AND FILTER (02) - ENGINE

1

A14349

X

TANK - fuel

1шт.

2

A14294

STRAP - hold-down, tank

2шт.

3

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

4шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

195-25

WASHER,3/8"

- plain, SAE 3/8"

4шт.

6

A28673

CAP

ASSY. - fuel tank, Includes: Ref. 7 - 15

1шт.

7

A27961

ELEMENT

- breather

1шт.

8

A27964

COVER

- breather

1шт.

9

A27962

STUD

- breather cover

1шт.

10

129-37

NUT,#10-32

1шт.

11

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

12

A27963

BAFFLE

- breather

1шт.

13

A27815

SPRING

- baffle

1шт.

14

A26854

GASKET

WASHER - spring retaining

1шт.

15

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

16

A7306

STRAINER - fuel

1шт.

17

A27960

RING - retainer, fuel strainer

1шт.

18

A14353

SENDER - fuel gauge

1шт.

19

A11822

GASKET

- sender

1шт.

20

177-131

BOLT (MACHINE),Sl Fil Hd, #10 - 32 x 1/2"

SCREW - #10-32 x 1/2" filister hd. (Pltd.)

5шт.

21

A15693

WASHER - sealing, sender screw

5шт.

22

217-81

VALVE

- drain, water trap

1шт.

23

A7390

PAD - tank mounting

4шт.

24

A27955

VALVE

ASSY. - needle, Includes: Ref. 25 and 26

1шт.

25

222-104

SLEEVE,3/8" Tube

- 3/8" Tube

1шт.

26

222-114

NUT,5/8"-24

NUT - 3/8" tube

1шт.

27

A14355

TUBE -, Serial Range: tank-filter

1шт.

28

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

- tube to filter, 3/8" tube x 1/4" P.T., Includes: Ref. 29 and 30

1шт.

29

222-104

SLEEVE,3/8" Tube

- 3/8" Tube

1шт.

30

222-114

NUT,5/8"-24

NUT - 3/8" tube

1шт.

31

A21133

FILTER

ASSY. - primary, Includes: Ref. 32 - 48

1шт.

32

A21077

FILTER HEAD

HEAD - filter assembly

1шт.

33

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - 1/8" P.T. sq. hd.

1шт.

34

221-1012

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe, 1/4" sq. hd.

1шт.

35

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed

2шт.

36

A20662

GASKET

- bleed screw

2шт.

37

A21131

NUT

- filter body

2шт.

38

A28055

GASKET

-, Serial Range: nut-head

2шт.

39

A21097

VALVE - by-pass

1шт.

40

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

41

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

"O" RING - by-pass valve

1шт.

42

A21141

FILTER, ELEMENT

ELEMENT KIT - 1st stage filter

1шт.

43

A28056

GASKET

-, Serial Range: body-head

1шт.

44

A21129

BODY

- 1st stage filter

1шт.

45

A7627

FILTER, ELEMENT

ELEMENT KIT - 2nd stage filter

1шт.

46

A28056

GASKET

-, Serial Range: body-head

1шт.

47

A21132

BODY

- 2nd stage filter

1шт.

48

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - 1/8" P.T. sq. hd.

2шт.

49

A14354

TUBE - leak-off, filter, Serial Range: valve-tank

1шт.

50

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

- tube to valve, 5/16" tube x 1/4" P.T., Includes: Ref. 51 and 52

1шт.

51

222-103

SLEEVE,5/16" Tube

1шт.

52

222-113

TUBE NUT,9/16"-24

NUT - 5/16" tube

1шт.

53

222-25

HYD CONNECTOR,9/16"-24 x 1/4" NPTF w/Nut

CONNECTOR - tube to tank, 5/16" tube x 1/4" P.T., Includes: Ref. 54 and 55

1шт.

54

222-103

SLEEVE,5/16" Tube

1шт.

55

222-113

TUBE NUT,9/16"-24

NUT - 5/16" tube

1шт.
