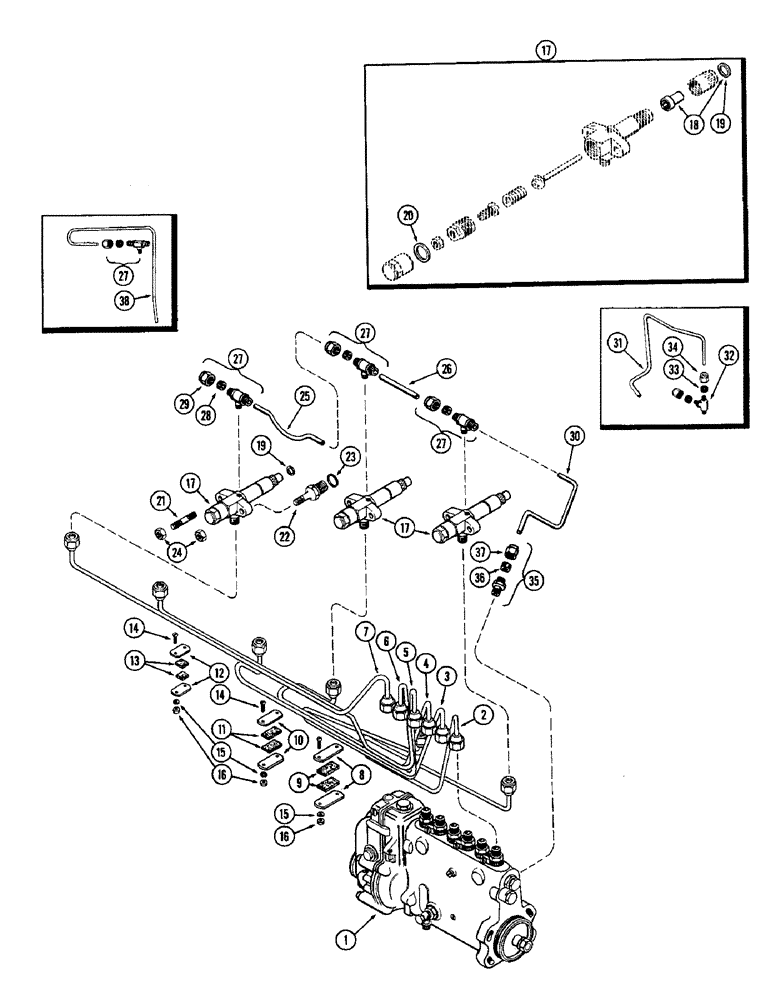

Запчасти Case W10 (034) - FUEL INJECTION SYSTEM (02) - ENGINE

1

A22638

PUMP - injection (Order from Figure 32)

1шт.

2

A20501

TUBE

- fuel injection, #1 cyl.

1шт.

3

A20502

TUBE

- fuel injection, #2 cyl.

1шт.

4

A20503

TUBE

- fuel injection, #3 cyl.

1шт.

5

A20504

TUBE

- fuel injection, #4 cyl.

1шт.

6

A20505

TUBE

- fuel injection, #5 cyl.

1шт.

7

A20506

TUBE

- fuel injection, #6 cyl.

1шт.

8

A27978

CLAMP

- tube (5 tubes)

2шт.

9

A27980

CUSHION

- tube to clamp (5 tubes)

2шт.

10

A27977

CLAMP

- tube (3 tubes)

2шт.

11

A27979

CUSHION

- tube to clamp (3 tubes)

2шт.

12

A20508

CLAMP

- tube (2 tubes)

2шт.

13

A20509

CUSHION

-, Serial Range: tube-clamp

2шт.

14

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- clamp, #10-24 x 1" rd. hd.

6шт.

15

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

6шт.

16

129-7

NUT,Hex, #10 - 24

- hex. #10-24

6шт.

17

A8013

NOZZLE INJECTION

INJECTOR ASSY. - fuel, Includes: Ref. 18 - 20

6шт.

18

A31159

NOZZLE INJECTION

NOZZLE ASSY. - injector, Includes: Ref. 19

1шт.

19

A27928

WASHER,14.22mm ID x 19.18mm OD x 2.06mm Thk

GASKET - nozzle seat

1шт.

20

A31062

GASKET

- adjusting cap

1шт.

21

A27929

STUD

- injector (Short)

6шт.

22

A10678

STUD

- injectot (Long)

6шт.

23

A10679

GASKET

- long stud

6шт.

24

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

12шт.

25

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

TUBE - lower, injector leak-off

3шт.

26

A20162

TUBE

- upper, injector leak-off

2шт.

27

222-72

TEE,1/4" Flex Tube Run x 1/8" NPTF Br

- leak-off, 1/4" tube x 1/8" P.T., Includes: Ref. 28 and 29

6шт.

28

222-102

SLEEVE,1/4" Tube

2шт.

29

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube

2шт.

30

A22186

TUBE

- leak-off to pump (1st used loader SN 8162900)

1шт.

31

A20534

TUBE - leak-off to pump (Use prior to loader SN 8162900)

1шт.

32

222-62

TEE,1/2"-24 Fem Run x 1/2"-24 Male x 1/8" NPT Br

- 1/4" tube x 1/8" P.T. (w/A20534 only), Includes: Ref. 33 and 34

1шт.

33

222-102

SLEEVE,1/4" Tube

2шт.

34

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube

2шт.

35

A28098

VALVE

- check, leak-off at pump, Includes: Ref. 36 and 37

1шт.

36

222-102

SLEEVE,1/4" Tube

1шт.

37

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube

1шт.

38

A20691

TUBE -, Serial Range: leak-off-filter

1шт.
