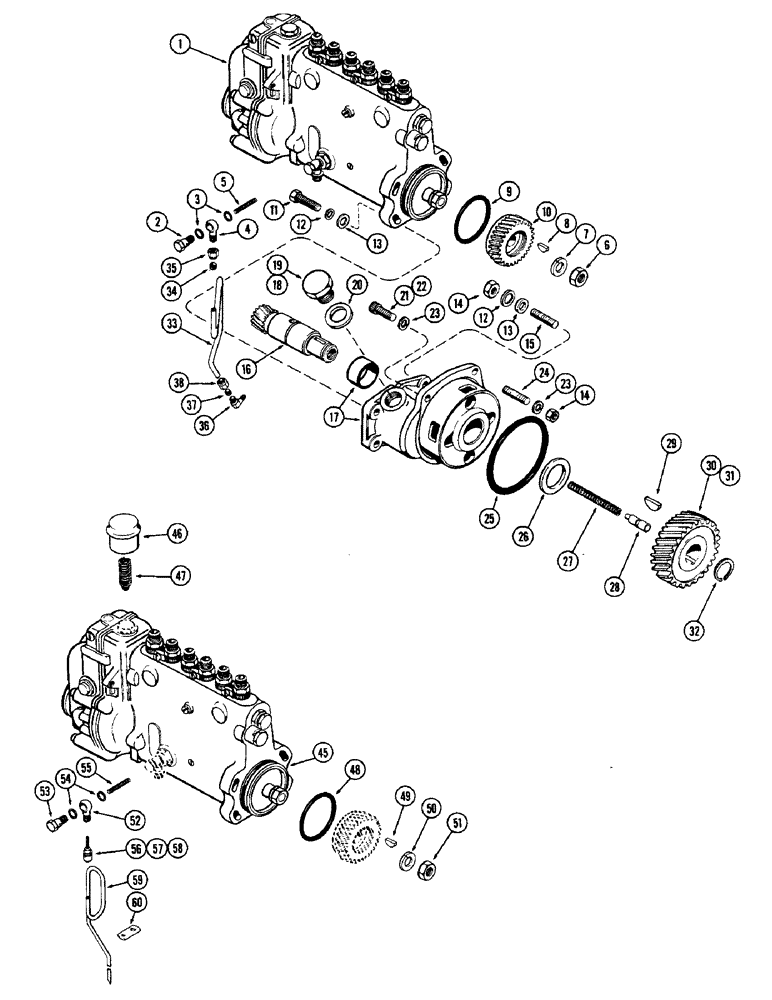

Запчасти Case W10 (032) - FUEL INJECTION PUMP AND DRIVE (02) - ENGINE

1

A22638

PUMP ASSY. - fuel injection, Robert Bosch #PES6A80CA421S52054, Includes: Ref. 2 - 9

1шт.

2

A25192

BANJO BOLT

BOLT - banjo fitting

1шт.

3

A22381

WASHER

- copper

2шт.

4

A25191

FITTING

- banjo, lube tube

1шт.

5

A25190

SPRING

- plunger, fitting

1шт.

6

A25189

NUT - pump shaft

1шт.

7

A25188

WASHER

- lock, shaft nut

1шт.

8

A20933

KEY

-, Serial Range: gear-pump

1шт.

9

A20529

O-RING,2.598" ID x 2.834" OD

"O" RING - pump to housing

1шт.

10

A21139

GEAR

- drive, pump

1шт.

11

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/4" N.C. hex. hd.

2шт.

12

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

13

195-25

WASHER,3/8"

- plain, SAE 3/8"

4шт.

14

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

3шт.

15

A20664

STUD - pump mounting

2шт.

16

A20622

GEAR

SHAFT - pinion, pump drive

1шт.

17

A21136

HOUSING ASSY. - pump drive (Includes bushing)

1шт.

18

A21140

PLUG

- timing window (See A18550)

1шт.

19

A18550

PLUG

- timing window (w/hydrovac brakes)

1шт.

20

A27947

X

GASKET - plug

1шт.

21

61-620

HEX SOC SCREW,3/8"-16 x 1 1/4"

BOLT - 3/8 x 1-1/4" N.C. hex. socket hd.

1шт.

22

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

23

92-6

LOCK WASHER,3/8"

3шт.

24

A26554

STUD - housing

1шт.

25

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - housing seal

1шт.

26

A27864

WASHER

- thrust, pinion shaft

1шт.

27

CASA27853

SPRING

- thrust plunger

1шт.

28

A27852

PLUNGER

- thrust, pinion shaft, Includes: Ref. 29

1шт.

29

126-66

WOODRUFF KEY

KEY - drive gear (#41 Woodruff)

1шт.

30

A20899

GEAR WHEEL

GEAR - drive (Use w/A22638 pump)

1шт.

31

A28026

X

GEAR - drive (Use w/A20686 pump)

1шт.

32

A27576

SNAP RING,#98, Ext

Ring, Snap, , gear to shaft #98, Ext

1шт.

33

A22640

TUBE

- pump lubrication (For A22638 pump)

1шт.

34

222-102

SLEEVE,1/4" Tube

Tube to pump 1/4" Tube

1шт.

35

87017024

TUBE NUT,1/2"-24

NUT - tube to pump, 1/4" tube

1шт.

36

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

- tube to block, 1/4" tube x 1/8" P.T., Includes: Ref. 37 and 38

1шт.

37

222-102

SLEEVE,1/4" Tube

1шт.

38

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube

1шт.

45

A20686

PUMP ASSY. - fuel injection, Robert Bosch #PES6A80B 420 LS 402/11 (Order A22638 plus ref. 33, 34, 35 & 36), Includes: Ref. 46 - 55

1шт.

46

NSS

NOT SOLD SEPARAT

CAP - oil filler & breather

1шт.

47

A23043

BAFFLE - oil, spring type

1шт.

48

A42056

O-RING,2.598" ID x 2.834" OD x 0.118"

"O" RING - pump mounting (Replaces A20529)

1шт.

49

A20933

KEY

-, Serial Range: gear-pump

1шт.

50

A25188

WASHER

- lock, shaft nut

1шт.

51

A25189

NUT - pump shaft

1шт.

52

A25191

FITTING

- banjo, over-flow tube

1шт.

53

A25192

BANJO BOLT

BOLT -, Serial Range: fitting-pump

1шт.

54

A22381

WASHER

- bolt & fitting

2шт.

55

A25190

SPRING

- plunger, fitting

1шт.

56

A20604

FITTING - over-flow tube, Includes: Ref. 57 and 58

1шт.

57

222-102

SLEEVE,1/4" Tube

1шт.

58

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube

1шт.

59

A23042

TUBE - overflow, pump

1шт.

60

A23278

CLIP - over-flow tube

1шт.
