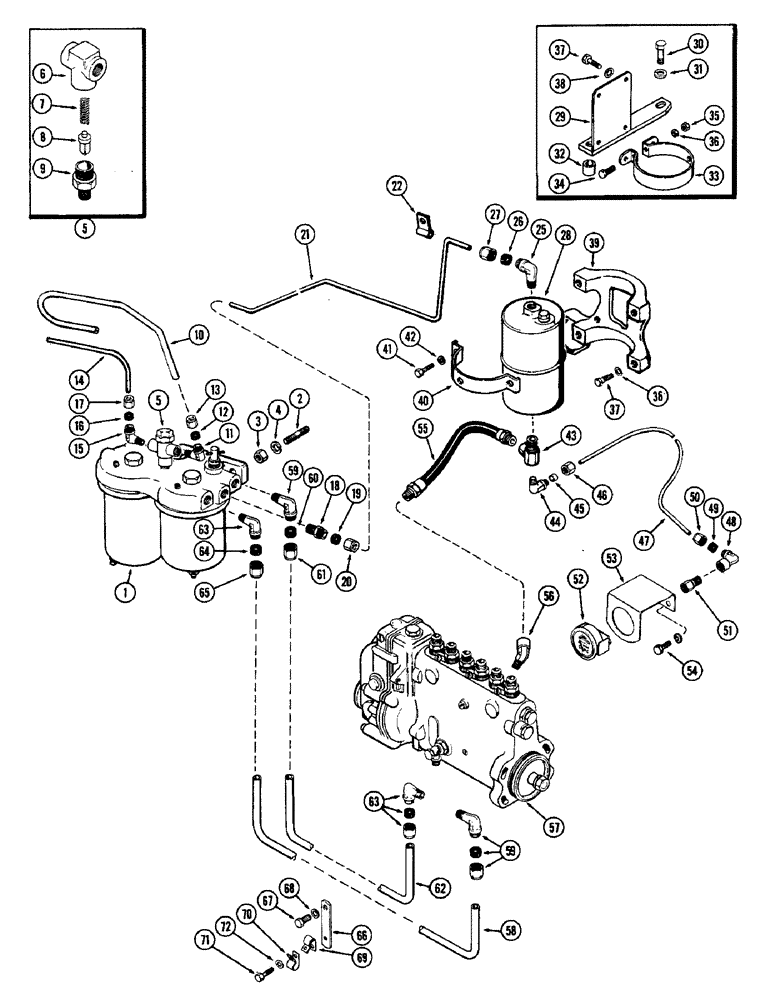

Запчасти Case W10 (030) - FUEL INJECTION FILTER SYSTEM (02) - ENGINE

1

A21133

FILTER

ASSY. - primary (Repairs figure 32)

1шт.

2

A26554

STUD - filter mounting

2шт.

3

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

4

92-6

LOCK WASHER,3/8"

2шт.

5

A20637

LOCK VALVE

VALVE ASSY. - fuel leak-off, Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - (Order A20637)

1шт.

7

A41003

SPRING - overflow valve

1шт.

8

A41321

INSULATOR

VALVE - overflow

1шт.

9

NSS

NOT SOLD SEPARAT

ADAPTER - (Order A20637)

1шт.

10

A20691

TUBE - leak-off, Serial Range: injector-valve

1шт.

11

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

- A20691 tube, 1/4" tube x 1/8" P.T., Includes: Ref. 12 and 13

1шт.

12

222-102

SLEEVE,1/4" Tube

1шт.

13

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube

1шт.

14

A14354

TUBE - leak-off, Serial Range: valve-tank

1шт.

15

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

- tube, 5/16" tube x 1/4" P.T., Includes: Ref. 16 and 17

1шт.

16

222-103

SLEEVE,5/16" Tube

1шт.

17

222-113

TUBE NUT,9/16"-24

NUT - 5-16" tube

1шт.

18

222-25

HYD CONNECTOR,9/16"-24 x 1/4" NPTF w/Nut

CONNECTOR - final filter tube, 5/16" tube x 1/4" P.T., Includes: Ref. 19 and 20

1шт.

19

222-103

SLEEVE,5/16" Tube

1шт.

20

222-113

TUBE NUT,9/16"-24

NUT - 5/16" tube

1шт.

21

A20533

TUBE

- final filter (Prior to loader SN 8162900)

1шт.

21

A22184

TUBE

- final filter (1st used loader SN 8162900)

1шт.

22

A7922

CLIP

- filter tube

2шт.

25

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

- tube, 5/16" tube x 1/4" P.T., Includes: Ref. 26 and 27

1шт.

26

222-103

SLEEVE,5/16" Tube

1шт.

27

222-113

TUBE NUT,9/16"-24

SLEEVE - 5/16" tube

1шт.

28

A57228

FILTER

- final stage

1шт.

29

A20723

BRACKET - final filter (Prior to loader SN 8162900)

1шт.

30

13-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

2шт.

31

92-7

LOCK WASHER,7/16"

2шт.

32

A28048

SPACER - bracket (Prior to loader SN 8162900)

2шт.

33

A27984

CLAMP - final filter (Prior to loader SN 8162900)

2шт.

34

75-424

SCREW

- mach., 1/4 x 1-1/2" N.C. rd. hd.

2шт.

35

25-104

NUT,1/4"-20, G5

2шт.

36

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

37

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

37

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

38

193-45

WASHER,Ext-Int Tooth, 5/16"

- lock, 5/16" ext.-int. Shakeproof

4шт.

39

A22183

BRACKET - final filter (1st used loader SN 8162900)

1шт.

40

A21144

CLAMP

- final filter (1st used loader SN 8162900)

2шт.

41

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

42

92-5

LOCK WASHER,5/16"

4шт.

43

A20539

FITTING

UNION - adapter, final filter

1шт.

44

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

- pressure tube, 1/8" tube x 1/8" male P.T., Includes: Ref. 45 and 46

1шт.

45

222-100

TUBE NUT,1/8" Tube

SLEEVE - 1/8" Tube

1шт.

46

222-110

TUBE NUT,3/8"-24

NUT - 1/8" tube

1шт.

47

A9364

TUBE

- fuel pressure gauge

1шт.

48

222-53

ELBOW,3/8"-24 x 1/8 NPTF

- tube to gauge, 1/8" tube x 1/8" female P.T., Includes: Ref. 49 and 50

1шт.

49

222-100

TUBE NUT,1/8" Tube

SLEEVE - 1/8" Tube

1шт.

50

222-110

TUBE NUT,3/8"-24

NUT - 1/8" tube

1шт.

51

A28061

FITTING

SNUBBER - pressure gauge

1шт.

52

A11471

X

GAUGE - fuel pressure

1шт.

53

A14498

X

SUPPORT - pressure gauge

1шт.

54

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

55

A20538

FUEL HOSE,0.38" ID x 8.50"

Final filter to pump 0.38" ID x 8.50"

1шт.

56

217-16

ELBOW,45 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- street, 1/4" P.T. 45 degrees (Brass)

1шт.

57

A22638

PUMP ASSY. - fuel injection (Order from Figure 32)

1шт.

58

A20693

TUBE

- 1st stage, Serial Range: filter-pump

1шт.

59

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

- A20695 tube, 3/8" tube x 1/4" P.T., Includes: Ref. 60 and 61

2шт.

60

222-104

SLEEVE,3/8" Tube

- 3/8" Tube

1шт.

61

222-114

NUT,5/8"-24

NUT - 3/8" tube

1шт.

62

A20531

TUBE

- pump to 2nd stage filter

1шт.

63

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

- A20531 tube, 5/16" tube x 1/4" P.T., Includes: Ref. 64 and 65

2шт.

64

222-103

SLEEVE,5/16" Tube

1шт.

65

222-113

TUBE NUT,9/16"-24

NUT - 5/16" tube

1шт.

66

A20537

SUPPORT - filter to pump tubes

1шт.

67

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

68

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

69

A20688

CLIP

- A20693 tube

1шт.

70

A27814

X

CLIP - A20531 tube

1шт.

71

72-46

SCREW - mach., 1/4 x 3/8" N.C. rd. hd.

1шт.

72

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER - lock, 1/4" int. Shakeproof

1шт.
