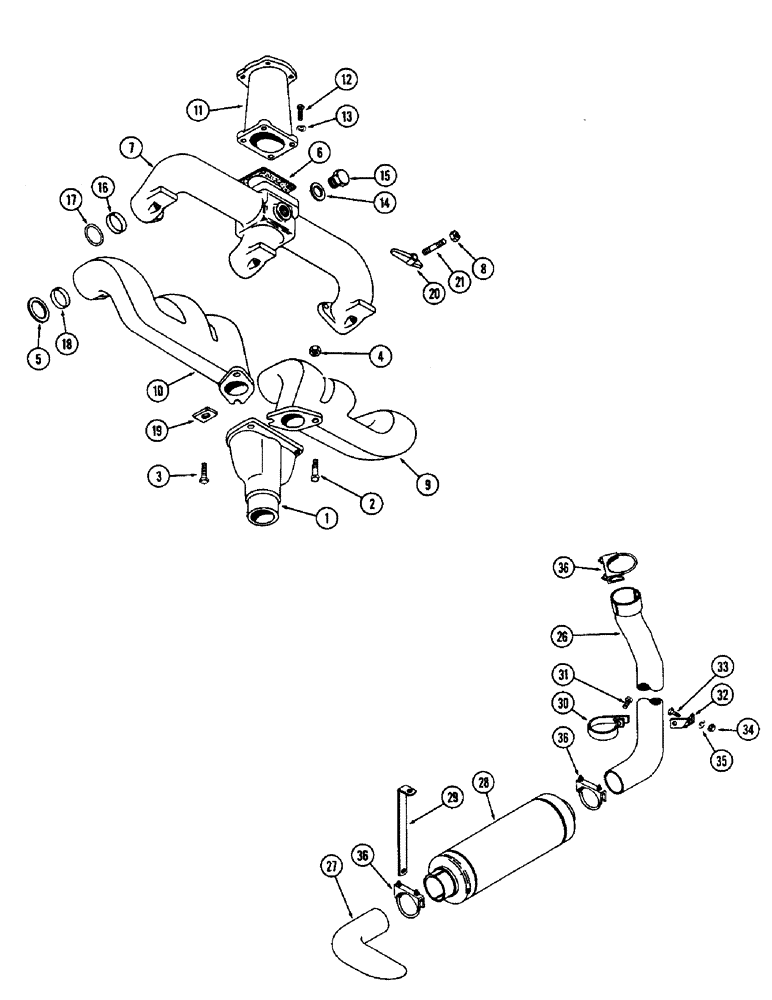

Запчасти Case W10 (028) - MANIFOLD AND MUFFLER (02) - ENGINE

1

A11372

ELBOW

STACK - exhaust outlet

1шт.

2

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

- 1/2 x 1-1/2" N.F. hex. hd.

2шт.

3

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

- 1/2 x 1-3/4" N.F. hex. hd.

2шт.

4

25-118

NUT,1/2"-20, G5

- 1/2" hex.

3шт.

5

A11889

GASKET

- exhaust manifold

6шт.

6

A20678

GASKET

- intake extension

1шт.

7

A20700

MANIFOLD - intake

1шт.

8

25-117

NUT,7/16"-20, G5

- clamp stud, 7/16" N.F. hex.

6шт.

9

A20698

X

MANIFOLD - exhaust, front (Order A20742 and 3-A21648 ferrule when exhausted)

1шт.

9

A20742

X

MANIFOLD - exhaust, front

1шт.

10

A20699

X

MANIFOLD - exhaust, rear (Order A20743 and 3-A21648 ferrule)

1шт.

10

A20743

MANIFOLD

- exhaust, rear

1шт.

11

A20677

EXTENSION - intake manifold

1шт.

12

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

13

92-6

LOCK WASHER,3/8"

4шт.

14

A20916

MANIFOLD GASKET

GASKET - heater opening plug

1шт.

15

A20917

PLUG

- heater opening, intake manifold

1шт.

16

A21383

CAP

FERRULE - intake manifold

3шт.

17

A11888

MANIFOLD GASKET

- intake manifold

3шт.

18

A11837

FERRULE

- exhaust manifold (Use w/A20698 and A20699)

6шт.

18

A21648

CAP

FERRULE - exhaust manifold (Use w/A20742 and A20743)

6шт.

19

A27868

CLAMP

- exhaust stack

1шт.

20

A27910

CLAMP

-, Serial Range: manifold-head

6шт.

21

A27911

STUD

- clamp

6шт.

26

A14475

PIPE - exhaust

1шт.

27

A14207

ELBOW - muffler

1шт.

28

A14208

MUFFLER - exhaust

1шт.

29

A14476

SUPPORT - muffler

1шт.

30

A14210

CLAMP - exhaust pipe

1шт.

31

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

32

A14211

SUPPORT - clamp

1шт.

33

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8 x 1-1/4" N.F. hex. hd.

2шт.

34

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

35

92-6

LOCK WASHER,3/8"

2шт.

36

A27115

CLAMP

- muffler & exhaust pipe

3шт.
