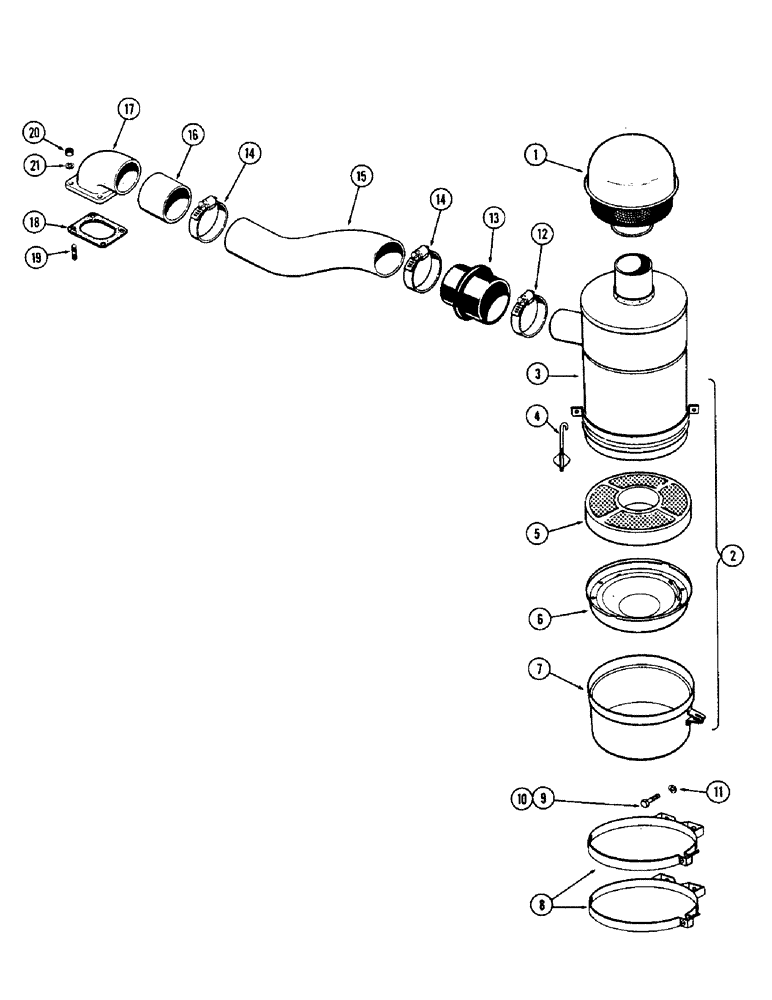

Запчасти Case W10 (027A) - AIR CLEANER, OIL BATH (02) - ENGINE

1

A16575

PRESCREENER

PRE-SCREENER ASSY.

1шт.

2

A56302

AIR CLEANER

ASSY., Includes: Ref. 3 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - (Order A56302)

1шт.

4

A55771

HARDWARE

BOLT - wing, oil cup

2шт.

5

A55768

SPARE PART

ELEMENT - air cleaner

1шт.

6

A55769

CUP

- oil, inner

1шт.

7

A55770

CUP - oil, outer

1шт.

8

A16574

BAND

- air cleaner mounting

2шт.

9

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

11

92-6

LOCK WASHER,3/8"

4шт.

12

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - adapter

1шт.

13

A56303

ADAPTER - air cleaner tube

1шт.

14

214-45

HOSE CLAMP

CLAMP - hose

2шт.

15

A16576

TUBE - air intake

1шт.

16

A16577

HOSE - elbow

1шт.

17

A16578

ELBOW - manifold

1шт.

18

A20678

GASKET

-, Serial Range: elbow-manifold

1шт.

19

A7597

STUD -, Serial Range: elbow-manifold

4шт.

20

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

4шт.

21

92-6

LOCK WASHER,3/8"

4шт.
