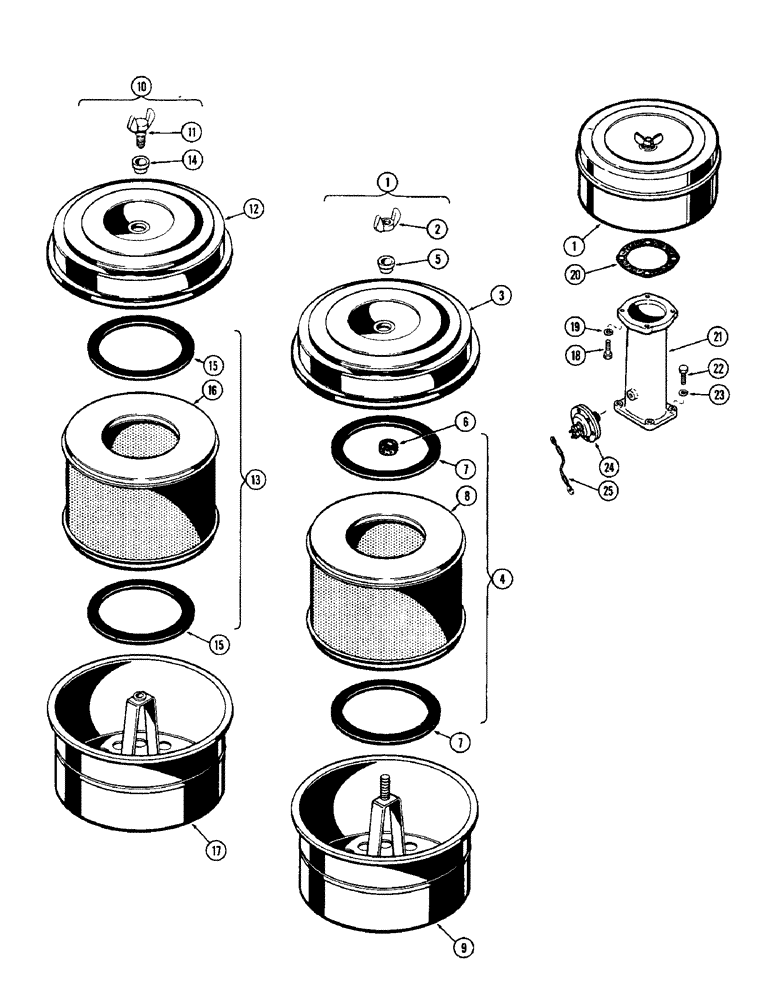

Запчасти Case W10 (026) - AIR CLEANER, DRY TYPE (02) - ENGINE

1

A14417

AIR CLEANER

CLEANER ASSY. - air (Early model), Includes: Ref. 2 - 9

1шт.

2

129-410

WING NUT,3/8"-16

NUT - wing, 3/8" N.C.

1шт.

3

A15241

COVER - element

1шт.

4

A15903

ELEMENT

KIT, Includes: Ref. 5 - 8

1шт.

5

A15902

WASHER - seal, cover & wing nut

1шт.

6

A15243

SEAL - cover

1шт.

7

A15242

GASKET - element

2шт.

8

NSS

NOT SOLD SEPARAT

ELEMENT - (Order A15903)

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - air cleaner (Order A14417)

1шт.

10

A14417

AIR CLEANER

CLEANER ASSY. - air (Late model), Includes: Ref. 11 - 17

1шт.

11

A15873

BOLT - wing, cover

1шт.

12

A15899

COVER

1шт.

13

A15903

ELEMENT

KIT - air cleaner, Includes: Ref. 14 - 16

1шт.

14

A15901

SEAL - cover & wing bolt

1шт.

15

A15900

GASKET - element

2шт.

16

NSS

NOT SOLD SEPARAT

ELEMENT - (Order A15903)

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - air cleaner (Order A14417)

1шт.

18

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

19

92-6

LOCK WASHER,3/8"

4шт.

20

A15304

GASKET

- air cleaner

1шт.

21

A20677

EXTENSION - air, Serial Range: cleaner-manifold

1шт.

22

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

23

92-6

LOCK WASHER,3/8"

4шт.

24

A14739

SWITCH - warning light

1шт.

25

A26893

WIRE -, Serial Range: switch-ground

1шт.

321-153

DECAL

- "CAUTION" (Not shown)

1шт.
