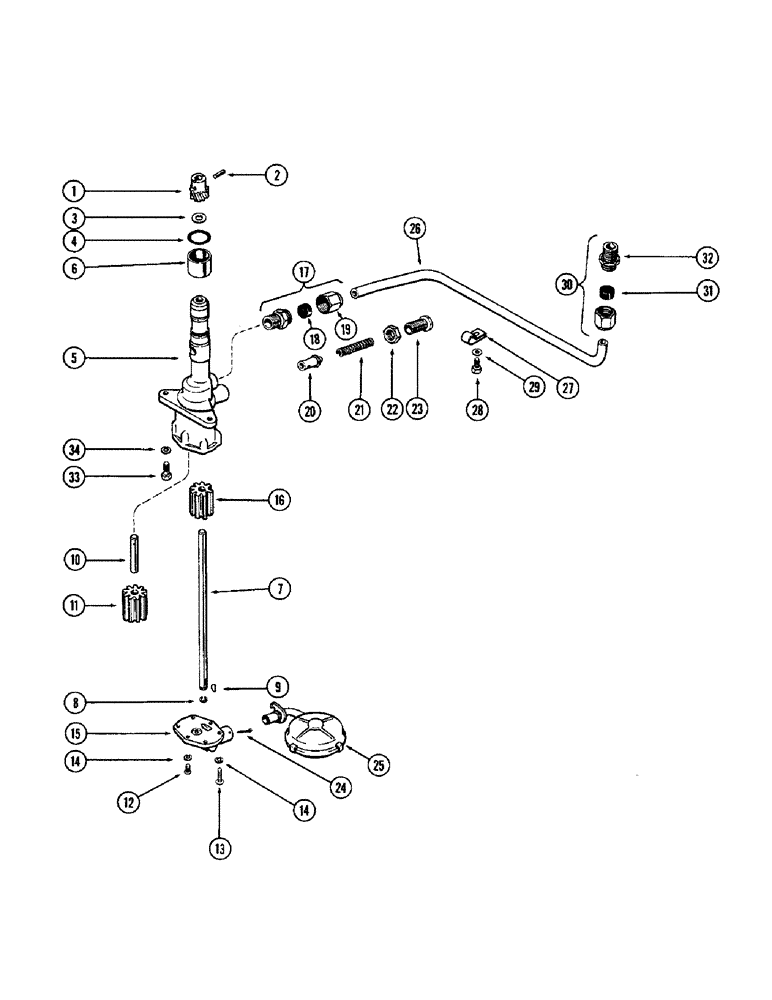

Запчасти Case W10 (022) - OIL PUMP (02) - ENGINE

A33878

PUMP

ASSY. - oil (Has steel drive gear. Must be used w/A33839 camshaft), Includes: Ref. 1 - 23

1шт.

A33443

PUMP

ASSY. - oil (Replaces A20722) (Has cast iron drive gear. Must be used w/A30138, A21428, or A23513 camshaft), Includes: Ref. 1 - 23

1шт.

1

A33840

GEAR WHEEL

GEAR - drive (Steel on A33878 pump)

1шт.

1

A26329

GEAR

- pump (Cast on A33443 pump)

1шт.

2

135-133

GROOVED PIN,3/16" x 1", Type A, Hardened

PIN, GROOVED, 3/16" x 1", Type A, Hardened

1шт.

3

A27857

WASHER

- thrust drive gear

1шт.

4

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

"O" RING - pump body

1шт.

5

A21094

BODY

ASSY. - pump, Includes: Ref. 6

1шт.

6

A21079

SLEEVE

- pump body

1шт.

7

A21102

SHAFT

- drive

1шт.

8

A10916

RING, SNAP

RING - retainer

1шт.

9

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

Drive shaft #5, 1/8" x 5/8"

1шт.

10

A27854

SHAFT

- idler gear

1шт.

11

A27856

GEAR WHEEL

GEAR - idler (No keyway)

1шт.

12

75-424

SCREW

- mach., 1/4 x 1/2" N.C. rd. hd.

1шт.

13

75-412

SCREW,Rd, 1/4" x 3/4"

- mach., 1/4 x 3/4" N.C. rd. hd.

5шт.

14

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

15

A33442

COVER - oil pump (Replaces A26308)

1шт.

16

A27855

GEAR WHEEL

GEAR - drive shaft (Has keyway)

1шт.

17

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR - tube, 5/8" O.D. x 1/2" P.T., Includes: Ref. 18 and 19

1шт.

18

222-106

SLEEVE,5/8" Tube

- tube, 5/8" O.D.

1шт.

19

222-116

TUBE NUT,1"-18

NUT - tube, 5/8" O.D.

1шт.

20

A22566

PLUNGER

- relief (Replaces A8901)

1шт.

21

A23598

VALVE SPRING

SPRING - plunger

1шт.

22

A27858

NUT

- adj. screw

1шт.

23

A8902

ADJUSTMENT SCREW,7/8" x 1 5/8"

SCREW - adjusting, relief plunger

1шт.

24

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

1шт.

25

A27476

FILTER SCREEN

SCREEN ASSY. - intake, float type

1шт.

26

A20735

TUBE

- oil, Serial Range: pump-filter

1шт.

27

A10852

CLIP - tube

1шт.

28

A10072

BOLT,3/8" - 16 x 3/4"

- tube clip

1шт.

29

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

30

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR - tube to filter, 5/8" O.D. x 1/2" P.T., Includes: Ref. 31 and 32

1шт.

31

222-106

SLEEVE,5/8" Tube

- tube, 5/8" O.D.

1шт.

32

222-116

TUBE NUT,1"-18

NUT - tube, 5/8" O.D.

1шт.

33

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Pump Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

34

92-6

LOCK WASHER,3/8"

2шт.
