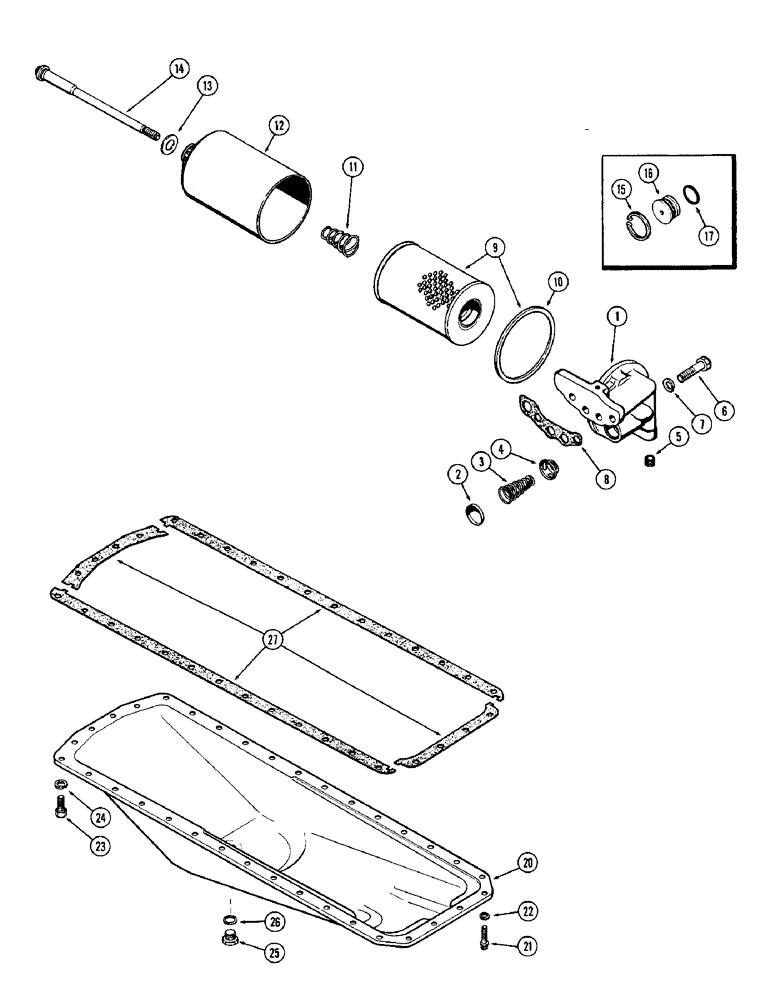

Запчасти Case W10 (020) - OIL FILTER (02) - ENGINE

1

A23475

BASE

ASSY. - oil filter (Replaces A20821 and A21815), Includes: Ref. 2 - 5

1шт.

2

41-1620

PLUG,Cup, 1 1/4", Stainless

- relief valve

1шт.

3

A21091

VALVE SPRING

SPRING - relief valve

1шт.

4

A21090

VALVE

- relief

1шт.

5

221-1843

PLUG

- 3/8" P.T. socket hd.

1шт.

6

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

8

A21084

GASKET

- base (1st used loader SN 8162900)

1шт.

8

A20823

GASKET

- base (Used prior to loader SN 8162900)

1шт.

9

A20822

ENGINE OIL FILTER

ELEMENT KIT - oil filter, Includes: Ref. 10

1шт.

10

A20429

GASKET

-, Serial Range: shell-base

1шт.

11

A20427

VALVE SPRING

SPRING - element

1шт.

12

A20824

SHELL

- filter element

1шт.

13

A20426

GASKET

- stand pipe

1шт.

14

A20825

PIPE

- stand

1шт.

15

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, relief valve (use with A20821 or A21815 base)

1шт.

16

A21092

PLUG - relief valve (Use w/A21815 base)

1шт.

17

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

"O" RING - relief valve (Use w/A21815 base)

1шт.

20

A23637

PAN - oil

1шт.

21

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Oil pan Hex, 3/8"-16 x 7/8", G5, Full Thd

34шт.

22

92-6

LOCK WASHER,3/8"

oil pan 3/8"

34шт.

23

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Oil pan Hex, 1/2"-13 x 1", G5, Full Thd

6шт.

24

92-8

LOCK WASHER,1/2"

., oil pan 1/2"

6шт.

25

A14280

PLUG

- drain, oil pan

1шт.

26

A27927

OIL PAN GASKET SET

- drain plug, oil pan

1шт.

27

A31142

GASKET

SET - oil, Serial Range: pan-block

1шт.
