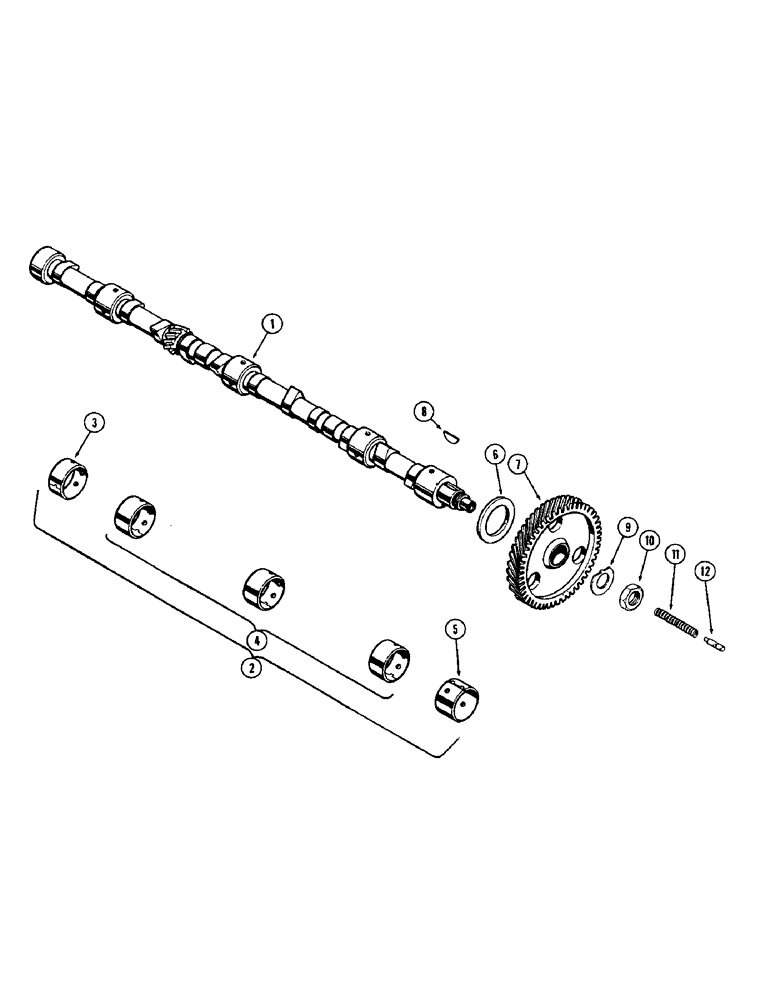

Запчасти Case W10 (016) - CAMSHAFT (02) - ENGINE

1

A30138

CAMSHAFT - (Prior to loader SN 8162900)

1шт.

1

A21428

X

CAMSHAFT - (1st used loader SN 8162900) Order A33839 camshaft & A33840 oil pump gear

1шт.

1

A33839

CAMSHAFT

- (Use with steel oil pump gear)

1шт.

1

A23513

CAMSHAFT

- (Use with cast oil pump gear) Can use A33839 and A33840

1шт.

2

A21660

BUSHING

SET - camshaft (Prior to loader SN 8162900), Includes: Ref. 3 - 5

1шт.

2

A23544

BUSHING

SET - camshaft (1st used loader SN 8162900), Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - rear (1st used loader SN 8162900)

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - intermediate (4 used prior to loader SN 8162900)

3шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - front

1шт.

6

A27849

WASHER - thrust (2-1/8" I.D. x 3-1/4" O.D. x 1/8) Used prior to loader SN 8162900

1шт.

6

A21017

WASHER

- thrust (2-1/4" I.D. x 3-1/4" O.D. x 1/8) 1st used loader SN 8162900

1шт.

7

A22604

GEAR

- camshaft

1шт.

8

126-28

WOODRUFF KEY,#18, 1/4" x 1 1/8"

Gear to camshaft #18, 1/4" x 1 1/8"

1шт.

9

A26444

LOCK WASHER

LOCK - camshaft nut

1шт.

10

A26445

NUT

- camshaft

1шт.

11

CASA27853

SPRING

- plunger, camshaft

1шт.

12

A27852

PLUNGER

- thrust, camshaft

1шт.
