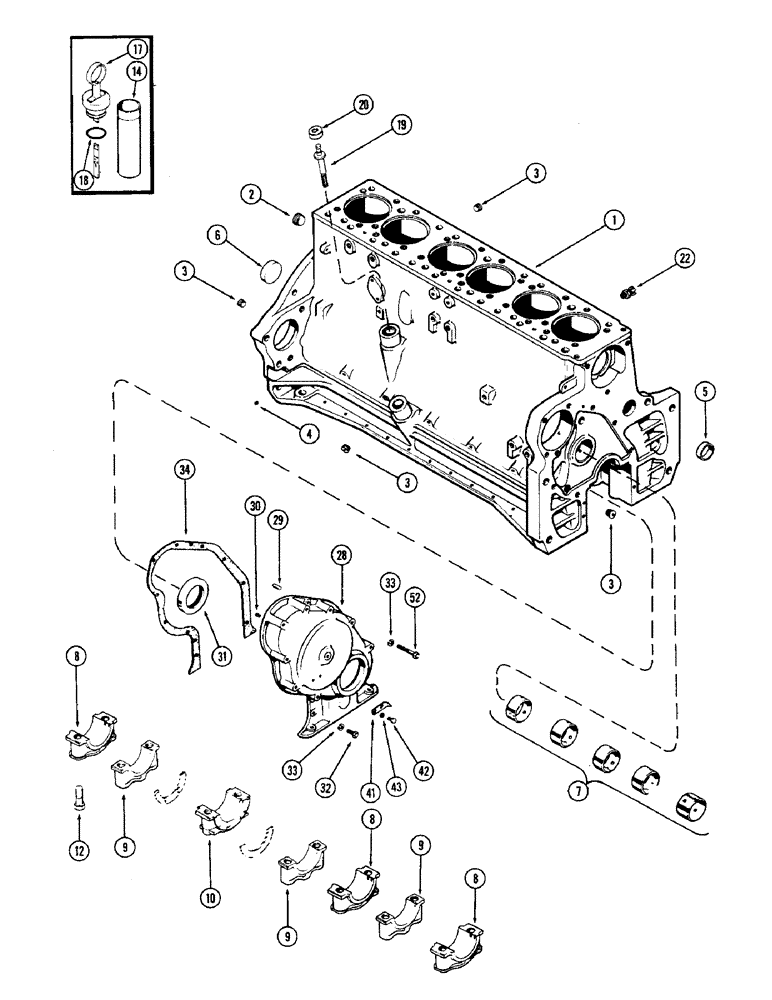

Запчасти Case W10 (014) - CYLINDER BLOCK ASSEMBLY, CASTING NO. A57071 (02) - ENGINE

A41236

(Inc. sleeves, pistons, crankshaft & gear, conn. rods, rear oil seal assy. & camshaft) (This block incl. A27830 crankshaft.1-A8198 plug (For oil hole) must also be ordered&inserted into the crankshaft prior to block installation)(See Fig.17A), Inc.1-12&14

1шт.

1

A41223

BLOCK ASSY. - stripped, Includes: Ref. 2 - 14

1шт.

2

221-26

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - rear, 1" P.T. socket hd.

1шт.

3

221-843

PLUG,Hex Soc, 3/8"-18

- 3/8" P.T. hex. socket hd.

6шт.

4

221-41

PLUG

- 1/8" slotted hd.

5шт.

5

41-1628

PLUG,Cup, 1 3/4", Stainless

- cup, front (1-3/4" dia.)

1шт.

6

A24361

PLUG

- cup, rear (2-3/8" dia.)

1шт.

7

A23544

BUSHING

SET - camshaft

1шт.

8

A24941

CAP

- wide crankshaft bearing

2шт.

9

A24942

CYLINDER END CAP

CAP - narrow crankshaft bearing

3шт.

10

A24943

CAP

- thrust bearing, crankshaft

1шт.

12

A27836

SPECIAL BOLT,5/8" - 11 x 3 1/4"

- bearing cap (5/8" N.C. x 3-1/4")

14шт.

14

A34540

TUBE

SOCKET - dipstick (w/bead)

1шт.

17

A34541

DIPSTICK

ASSY. - oil level, Includes: Ref. 18

1шт.

18

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - dipstick (1" O.D.)

2шт.

19

A24528

ADAPTER

- tachometer drive

1шт.

20

A11194

X

PLUG - tachometer drive adapter

1шт.

22

A23656

COCK, DRAIN

VALVE - drain, cylinder block

1шт.

28

A57416

COVER ASSY. - timing gear, Includes: Ref. 29 - 31

1шт.

29

A27840

PIN

- dowel, Serial Range: cover-block

2шт.

30

A27869

BUTTON - thrust

2шт.

31

A57342

SEAL

- oil, crankshaft front

1шт.

32

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

32

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- cover, 3/8 x 2-1/2" N.C. hex.

7шт.

33

92-6

LOCK WASHER,3/8"

9шт.

34

A33018

GASKET

- timing gear cover

1шт.

41

A28218

POINTER - timing

1шт.

42

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Pointer Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

43

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - lock, 1/4" ext.-int. Shakeproof

2шт.
