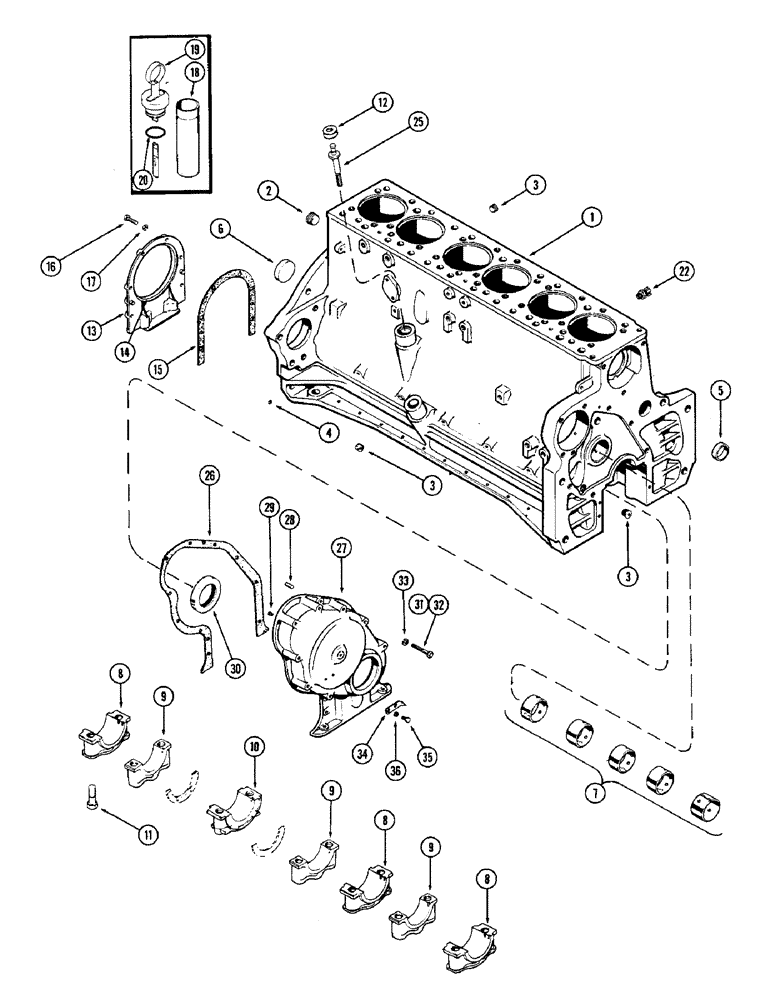

Запчасти Case W10 (012) - CYLINDER BLOCK ASSEMBLY, CASTING NO. A23461 (02) - ENGINE

A40527

SHORT BLOCK ASSY. - (Includes crankshaft, sleeves pistons, conn. rods, camshaft and gear, oil pump and lifters) Can use A41236 Figure 14., Includes: Ref. 1 - 18

1шт.

1

A23489

BLOCK ASSY. - stripped (Can use A41223 from Figure 14), Includes: Ref. 2 - 11

1шт.

2

221-26

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - rear, 1" P.T. socket hd.

1шт.

3

221-1843

PLUG

- 3/8" P.T. socket hd.

6шт.

4

221-41

PLUG

- 1/8" P.T. slotted

5шт.

5

41-1628

PLUG,Cup, 1 3/4", Stainless

- cup, front (1-3/4" dia.)

1шт.

6

A24361

PLUG

- cup, rear (2-3/8" dia.)

1шт.

7

A23544

BUSHING

SET - camshaft

1шт.

8

A24941

CAP

- wide crankshaft bearing

3шт.

9

A24942

CYLINDER END CAP

CAP - narrow crankshaft bearing

3шт.

10

A24943

CAP

- bearing, crankshaft thrust

1шт.

11

A27836

SPECIAL BOLT,5/8" - 11 x 3 1/4"

- bearing cap

14шт.

12

A11195

PLUG

- tachometer adapter

1шт.

13

A57457

RETAINER

ASSY. - rear oil seal, Includes: Ref. 14

1шт.

14

A23085

OIL SEAL

- oil, crankshaft rear

1шт.

15

A32830

GASKET

-, Serial Range: retainer-block

1шт.

16

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

17

92-6

LOCK WASHER,3/8"

6шт.

18

A34540

TUBE

SOCKET - dipstick

1шт.

19

A34541

DIPSTICK

- oil level, Includes: Ref. 20

1шт.

20

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - dipstick (1" O.D.)

2шт.

22

A23655

VALVE

- drain, cylinder block

1шт.

25

A24528

ADAPTER

- tachometer drive

1шт.

26

A33018

GASKET

- timing gear cover

1шт.

27

A57043

SEAL

COVER ASSY. - timing gear (Replaces A20718), Includes: Ref. 28 - 30

1шт.

28

A27840

PIN

- dowel, Serial Range: cover-block

2шт.

29

A27869

BUTTON - thrust

2шт.

30

A57342

SEAL

- oil, crankshaft front (Replaces A23433)

2шт.

31

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" N.C. hex.

2шт.

32

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

7шт.

33

92-6

LOCK WASHER,3/8"

9шт.

34

A21362

CLIP

POINTER - timing

1шт.

35

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

36

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - lock, 1/4" ext.-int. Shakeproof

2шт.
