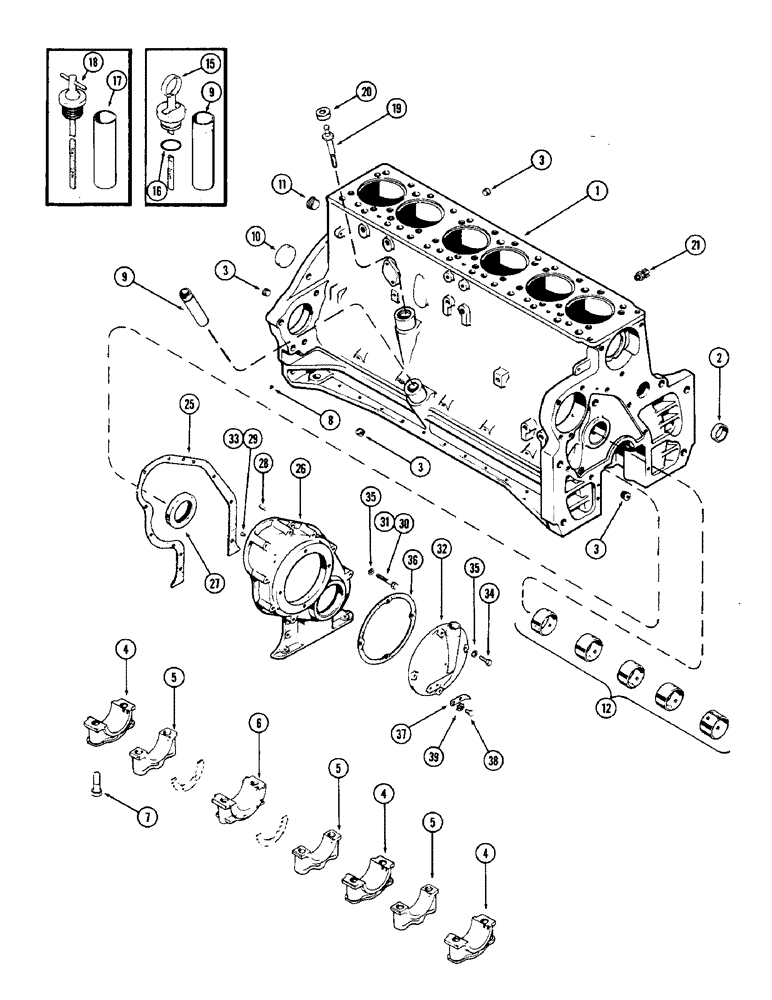

Запчасти Case W10 (008) - CYLINDER BLOCK ASSEMBLY, CASTING NO. A20675, USED PRIOR TO S/N 8162900 (02) - ENGINE

A22884

SHORT BLOCK ASSY. - (Includes stripped block, pistons, conn. rods and crankshaft) (Uses A11814 cyl. head and A24462 head gasket. See Figure 6.), Includes: Ref. 1 - 12

1шт.

1

A20704

BEARING

BLOCK ASSY. - stripped (Casting No. A20675), Includes: Ref. 2 - 12

1шт.

2

41-1628

PLUG,Cup, 1 3/4", Stainless

CUP - plug, front (1-3/4")

1шт.

3

221-1843

PLUG

- 3/8" P.T. socket hd.

5шт.

4

A24941

CAP

- wide crankshaft bearing

3шт.

5

A24942

CYLINDER END CAP

CAP - narrow crankshaft bearing

3шт.

6

A24943

CAP

- bearing, crankshaft thrust

1шт.

7

A27836

SPECIAL BOLT,5/8" - 11 x 3 1/4"

- bearing cap

14шт.

8

221-41

PLUG

- 1/8" P.T. slotted

5шт.

9

A34540

TUBE

SOCKET - dipstick (w/bead) See ref. 17

1шт.

10

41-38

PLUG

- rear (2-3/8" expansion type)

1шт.

11

221-26

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - rear, 1#P.T. socket hd.

1шт.

12

A23544

BUSHING

SET - camshaft (See Figure 16)

1шт.

15

A34541

DIPSTICK

ASSY. (Use w/ref. 9) See ref. 17 & 18, Includes: Ref. 16

1шт.

16

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - dipstick seal (1" O.D.)

2шт.

17

A20714

X

SOCKET - dipstick (Early production)

1шт.

18

A20739

GAUGE

DIPSTICK - oil level (Must use w/ref. 17)

1шт.

19

A11194

X

ADAPTER - tachometer drive

1шт.

20

A11195

PLUG

- adapter, tachometer drive

1шт.

21

A27862

COCK, DRAIN

VALVE - drain, cylinder block

1шт.

25

A27865

X

GASKET - timing gear cover

1шт.

26

A20703

COVER ASSY. - timing gear, Includes: Ref. 27 - 29

1шт.

27

A27838

OIL SEAL,66.67mm ID x 92.2mm OD x 11.89mm Thk

- oil, crankshaft front

1шт.

28

A27840

PIN

- dowel, Serial Range: cover-block

2шт.

29

A27869

BUTTON - thrust

1шт.

30

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

31

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/4" N.C. hex. hd.

8шт.

32

A7351

CAP ASSY. - timimg gear cover, Includes: Ref. 33

1шт.

33

A27869

BUTTON - thrust

1шт.

34

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

34

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

3шт.

35

92-6

LOCK WASHER,3/8"

14шт.

36

A27867

GASKET

- cover cap

1шт.

37

A28218

POINTER - timing

1шт.

38

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

39

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - lock, 1/4" ext.-int. Shakeproof

2шт.
