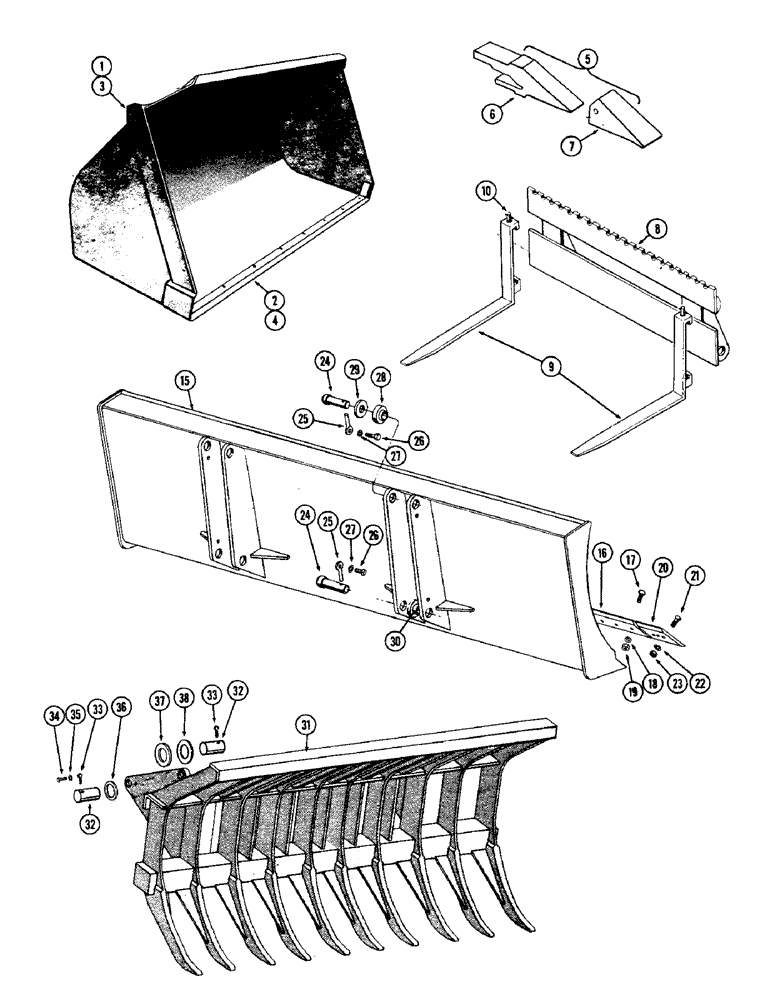

Запчасти Case W10 (186) - BUCKETS - REGULAR (09) - CHASSIS

1

A15283

BUCKET ASSY. - 1-1/4" cu. yd. (Heavy duty) (Machinery item), Includes: Ref. 2

1шт.

2

A12619

EDGE - cutting (76-5/8" wide)

1шт.

3

A13876

BUCKET ASSY. - 1-3/4" cu. yd. (Standard) (Machinery item), Includes: Ref. 4

1шт.

4

A16451

EDGE - cutting

1шт.

5

A12855

TOOTH ASSY. - bucket (Mchy. item) (8 used w/A15283 & 9 used w/A13876), Includes: Ref. 6 and 7

9шт.

6

A12853

BASE - tooth

1шт.

7

A12854

TOOTH

1шт.

8

A15721

MOUNTING - fork, lift

1шт.

9

A15731

FORK ASSY., lift, Includes: Ref. 10

2шт.

10

D38359

PIN,12.7mm OD x 95.25mm L

PIN - lock, fork lift

1шт.

15

R14478

BLADE ASSY. - dozer (Mchy. item), Includes: Ref. 16 - 23

1шт.

16

16792

EDGE, CUTTING

BLADE - cutting, center, dozer

1шт.

17

19-832

BOLT

- plow, 1/2 x 2" N.C. #3 hd., dozer blade

18шт.

18

92-8

LOCK WASHER,1/2"

dozer blade 1/2"

18шт.

19

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex., dozer blade

18шт.

20

70441

BLADE

- cutting, R.H. end, dozer

1шт.

20

70442

BLADE

- cutting, L.H. end, dozer blade

1шт.

21

19-1036

PLOW BOLT,5/8" - 11 x 2 1/4", Gr 5

BOLT - plow, 5/8 x 2-1/4" N.C. #3 hd., dozer blade

6шт.

22

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Dozer blade 5/8"

6шт.

23

25-1110

NUT,5/8"-18, G5

- 5/8" N.C. hex., dozer blade

6шт.

24

R13262

PIN - mounting pivot, dozer blade

4шт.

25

A10615

LOCK ASSY

PIN - lock, mounting pin, dozer blade

4шт.

26

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Dozer blade Hex, 1/2"-13 x 1", G5, Full Thd

4шт.

27

92-8

LOCK WASHER,1/2"

dozer blade 1/2"

4шт.

28

R13258

SPACER - pivot pin, upper inner, dozer blade

2шт.

29

R13257

SPACER - pivot pin, upper outer, dozer blade

2шт.

30

R13252

SPACER - pivot pin, lower, dozer blade

2шт.

31

R13541

RAKE - brush, trash rake

1шт.

32

R13262

PIN - pivot mounting, rake, trash rake

4шт.

33

A10615

LOCK ASSY

PIN - lock, mounting pin, trash rake

4шт.

34

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Trash rake Hex, 1/2"-13 x 1", G5, Full Thd

4шт.

35

92-8

LOCK WASHER,1/2"

trash rake 1/2"

4шт.

36

R13252

SPACER - pivot pin, lower, trash rake

2шт.

37

R13258

SPACER - pivot pin, upper inner, trash rake

2шт.

38

R13257

SPACER - pivot pin, upper outer, trash rake

2шт.
