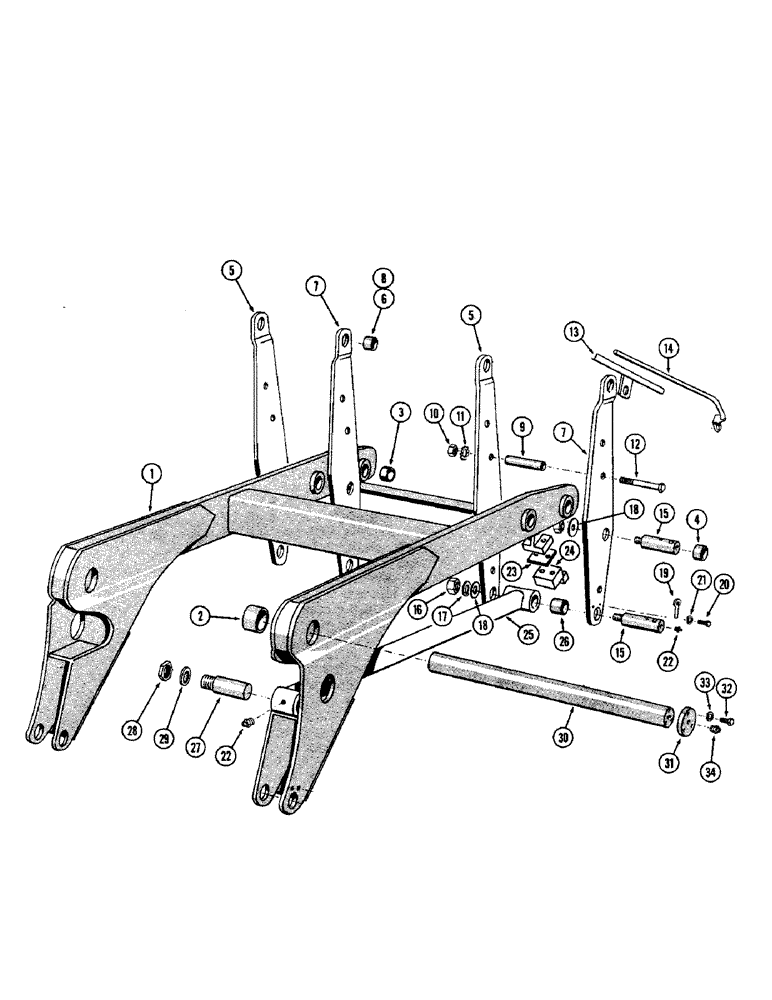

Запчасти Case W10 (184) - BUCKET LIFT ARMS (09) - CHASSIS

1

A16471

ARM ASSY. - lift (See A15086), Includes: Ref. 2 - 4

1шт.

1

A15086

ARM ASSY. - lift (Special high lift), Includes: Ref. 2 - 4

1шт.

2

A16761

BUSHING

- lift arm pivot

2шт.

3

A56184

BUSHING

- bucket pivot

2шт.

4

A12059

BUSHING

- bellcrank pivot

4шт.

5

A12067

SPARE PART

CRANK ASSY. - L.H. bell, lift arm, Includes: Ref. 6

2шт.

6

A12062

BUSHING

- bellcrank

1шт.

7

A12066

CRANK ASSY. - R.H. bell, lift arm, Includes: Ref. 8

2шт.

8

A12062

BUSHING

- bellcrank

1шт.

9

A12069

STRUT

SPACER - bellcrank

6шт.

10

25-1112

NUT,3/4"-16, G5

- 3/4" N.F. hex.

6шт.

11

193-15

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

6шт.

12

16-12104

BOLT - 3/4 x 6-1/2" N.F. hex.

6шт.

13

A12377

GAUGE ASSY. - level, bucket

1шт.

14

A12380

ROD - bucket gauge

1шт.

15

A12070

AXLE PIN

PIN - pivot, crank & level pin

4шт.

16

25-1520

NUT

- jam, 1-1/4" N.F. hex.

4шт.

17

193-19

WASHER,1 1/4"

- lock, 1-1/4" ext. Shakeproof

4шт.

18

A12071

WASHER

- pivot pin

4шт.

19

A10615

LOCK ASSY

LOCK - pivot pin

4шт.

20

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

21

92-8

LOCK WASHER,1/2"

4шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" str.

10шт.

23

A15833

SHIM - plate, bucket stop

1шт.

24

A16752

PLATE - stop, bucket

2шт.

25

A15808

PIPE ASSY. - level, Includes: Ref. 26

2шт.

26

A12062

BUSHING

- level pipe

4шт.

27

A12523

PIN

- pivot, level link rear

2шт.

28

25-1524

JAM NUT,Jam, 1 1/2"-12, G5

- jam, 1-1/2" N.F. hex.

2шт.

29

92-24

LOCK WASHER,1 1/2"

1-1/2"

2шт.

30

A15964

SHAFT

- pivot, lift arm (Has 1/2" N.F. tapped holes)

1шт.

30

A12506

X

SHAFT - pivot, lift arm (Has 3/8" N.F. tapped holes) Order A15964, (2) A15965 & (2) 14-824.

1шт.

31

A15965

PLATE

- lock, shaft end (For A15964)

2шт.

31

A12507

PLATE - lock, shaft end (For A12506)

2шт.

32

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

- 1/2 x 1-1/2" N.F. hex. (For A15965)

2шт.

32

14-618

SCREW,Hex, 3/8" - 24 x 1 1/8", Gr 5

BOLT - 3/8 x 1-1/8" N.F. hex. (For A12507)

2шт.

33

92-8

LOCK WASHER,1/2"

2шт.

33

92-6

LOCK WASHER,3/8"

2шт.

34

219-3

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/2" P.T. str. (For A15965)

2шт.

34

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" P.T. str. (For A12507)

2шт.
