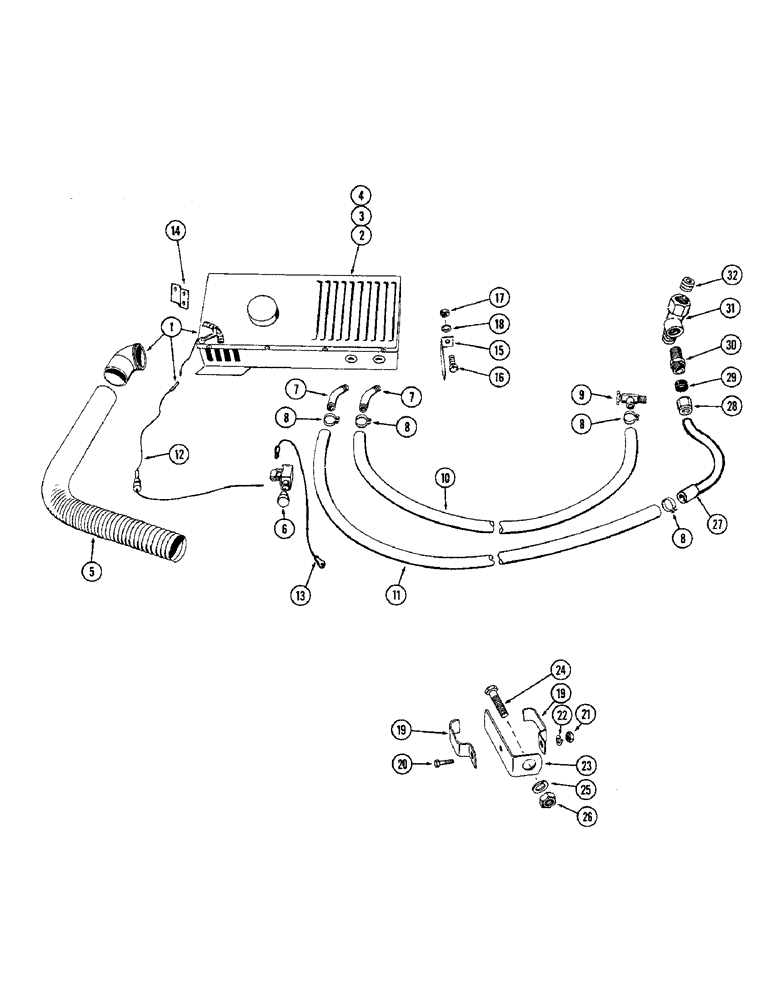

Запчасти Case W10 (154) - CAB HEATER AND DEFROSTER (09) - CHASSIS

A14804

ATTACHMENT - heater & defroster (Mchy. item), Includes: Ref. 1 - 32

1шт.

1

A14768

HEATER ASSY. - (w/defroster), Includes: Ref. 2 - 12

1шт.

2

A14771

HEATER ASSY., Includes: Ref. 3

1шт.

3

A18348

MOTOR - heater

1шт.

4

L30009

FAN

- heater

1шт.

5

A36110

HOSE - defroster (36", Serial Range: cut-24")

1шт.

6

A12898

SWITCH

- heater

1шт.

7

A16765

CONNECTOR - hose (3/8" P.T. x 1/2" 45 degrees)

2шт.

8

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

4шт.

9

A16764

VALVE

- shut-off

1шт.

10

A19942

HOSE

- heater to engine block (13')

1шт.

11

A19943

HOSE

- heater to water pump (12')

1шт.

12

A19937

WIRE - heater to switch (Includes 15 amp. fuse)

1шт.

13

A14733

ELECTRICAL WIRE

WIRE - heater switch to starter switch

1шт.

14

A14807

BRACKET - L.H., heater mounting

1шт.

15

A14806

BRACKET - R.H., heater mounting

1шт.

16

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8 x 7-1/4" N.F. hex. hd.

2шт.

17

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

18

92-6

LOCK WASHER,3/8"

2шт.

19

A13029

CLIP

- heater hose

2шт.

20

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

1шт.

21

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

22

92-5

LOCK WASHER,5/16"

1шт.

23

A13030

BRACKET - clip retainer

1шт.

24

14-1228

BOLT,Hex, 3/4" - 16 x 1-3/4", Gr 5

- 3/4 x 1-3/4" N.F. hex.

1шт.

25

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

26

25-1112

NUT,3/4"-16, G5

- 3/4" N.F. hex.

1шт.

27

A14770

TUBE - water pump outlet

1шт.

28

222-49

CONNECTOR - 1/2" tube x 3/8" P.T., Includes: Ref. 29 and 30

1шт.

29

222-105

SLEEVE,182" Tube

- 1/2" tube

1шт.

30

222-115

NUT,13/16"-18

- 1/2" tube

1шт.

31

221-1693

TEE,Street, 1/2" NPT

- street, 1/2" P.T.

1шт.

32

221-1843

PLUG

- 3/8" P.T. socket hd.

1шт.
