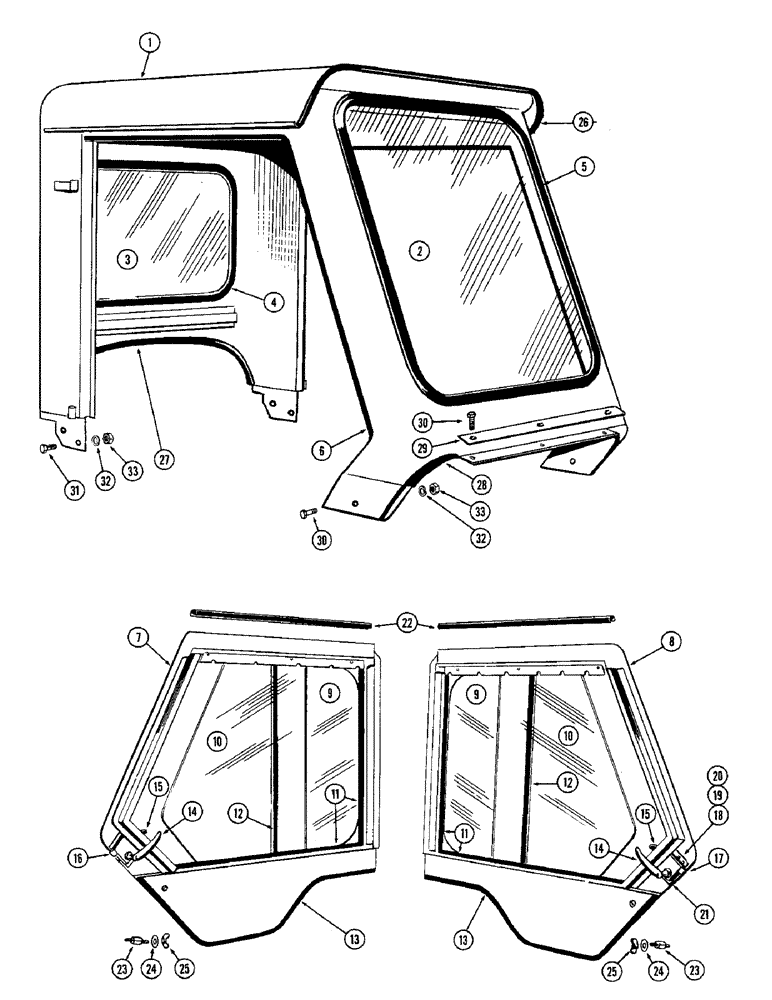

Запчасти Case W10 (150) - OPERATORS CAB (09) - CHASSIS

A12603

CAB ASSY. - operators, complete, Includes: Ref. 1 - 22

1шт.

1

A12573

CAB ASSY. - (Less doors), Includes: Ref. 2 - 6

1шт.

2

A12569

GLASS - windshield

1шт.

3

A12570

GLASS - rear panel

1шт.

4

A12572

MOULDING - rear panel

1шт.

5

A12571

MOULDING - windshield

1шт.

6

A12600

STRIPPING - weather, door upper

2шт.

7

A12596

DOOR ASSY. - R.H., Includes: Ref. 9 - 22

1шт.

8

A12597

DOOR ASSY. - L.H., Includes: Ref. 9 - 22

1шт.

9

A12595

GLASS - sliding, rear (w/pulls)

1шт.

10

A12594

GLASS - sliding, front (w/pulls)

1шт.

11

A12591

CHANNEL - sliding glass

1шт.

12

A12593

STRIPPING - weather, door glass

1шт.

13

A12601

STRIPPING - weather, door top

1шт.

14

A20598

HANDLE - inside, door

1шт.

15

A20602

HANDLE - outside, door

1шт.

16

A12598

LATCH - R.H. door

1шт.

17

A12599

LATCH - L.H. door

1шт.

18

179-277

SCREW - #8-32 x 1/2" oval hd.

4шт.

19

173-77

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

- #8-32 x 1/2" rd. hd.

2шт.

20

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

6шт.

21

A12602

SPACER - door latch

1шт.

22

A12592

CHANNEL - door top

1шт.

23

A13042

STUD - door hold

2шт.

24

95-6

WASHER,3/8"

- plain, SAE 3/8"

2шт.

25

129-410

WING NUT,3/8"-16

NUT - wing, 3/8" N.C.

2шт.

26

A13225

MOULDING - cab roof front edge

1шт.

27

A12604

MOULDING - lower rear (37" lg.)

1шт.

28

A12605

MOULDING - lower front) (6" long)

2шт.

29

A12606

STRAP - hold down, cab front

1шт.

30

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8 x 1" N.F. hex.

5шт.

31

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8 x 1-1/4" N.F. hex. hd.

2шт.

32

92-6

LOCK WASHER,3/8"

7шт.

33

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

7шт.
