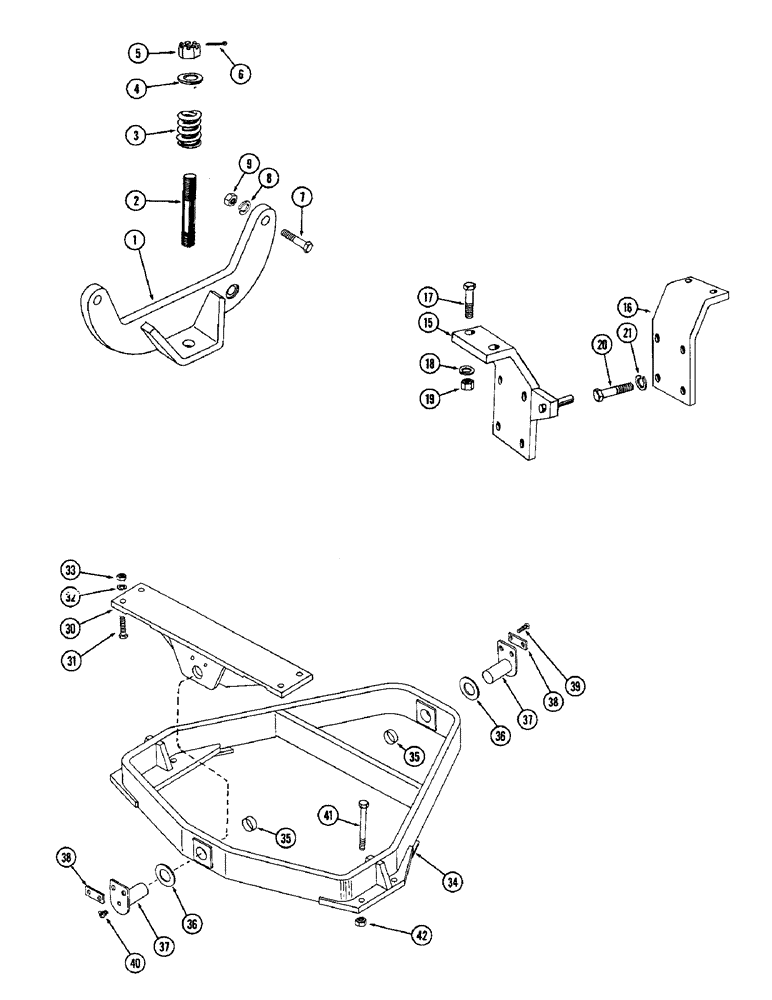

Запчасти Case W10 (148) - ENGINE MOUNTS (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
A14401
MOUNT - engine rear
1шт.
2
A12226
STUD - engine mount
1шт.
3
A12227
VALVE SPRING
SPRING - engine mount stud
1шт.
4
195-49
WASHER
- plain, 7/8" SAE
2шт.
5
25-1914
SLOTTED NUT,7/8"-14, G5, Thk
NUT - slotted, 7/8" N.F. hex.
1шт.
6
132-99
COTTER PIN,3/16" x 2"
Pin, Split (Cotter), 3/16" x 2"
1шт.
7
13-1244
BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5
2шт.
8
92-12
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
2шт.
9
25-1012
NUT,3/4"-10, G5
2шт.
15
A12220
BRACKET - R.H., transmission, mounts
1шт.
16
A14402
BRACKET - L.H., transmission, mounts
1шт.
17
14-1256
BOLT,Hex, 3/4" - 16 x 3-1/2", Gr 5
- 3/4 x 3-1/4" N.F. hex., transmission mounts
4шт.
18
92-12
LOCK WASHER,3/4"
WASHER, LOCK, , Transmission mounts 3/4"
4шт.
19
25-1112
NUT,3/4"-16, G5
- 3/4" N.F. hex., transmission mounts
4шт.
20
13-1028
BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd
Transmission mounts Hex, 5/8"-11 x 1 3/4", G5, Full Thd
8шт.
30
A12086
BRACKET
- rear axle pivot
1шт.
31
13-1036
BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5
Rear axle pivot Hex, 5/8"-11 x 2 1/4", G5
4шт.
33
25-1010
NUT,5/8"-11, G5
Rear axle pivot 5/8"-11, G5
4шт.
34
A13894
PIVOT ASSY. - rear axle, Includes: Ref. 35
1шт.
35
A7707
BUSHING
- pivot pin, rear axle
2шт.
36
A12089
WASHER,38.89mm ID x 76.2mm OD x 1.9mm Thk
- thrust, pivot pin, rear axle
2шт.
37
A15155
AXLE PIN
PIN - pivot, axle mounting, rear
2шт.
38
A15157
LOCK ASSY
LOCK - pivot pin, rear axle pivot
2шт.
39
13-816
BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd
Rear axle pivot Hex, 1/2"-13 x 1", G5, Full Thd
4шт.
40
219-55
LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF
NIPPLE, LUBE, , Rear axle pivot 90º, 1/8" NPT x .84" lg
2шт.
41
116-800
BOLT - 7/8 x 11" N.F. hex., rear axle pivot
8шт.
42
131-187
LOCK NUT,7/8"-14, GB
NUT - lock, 7/8" N.F., rear axle pivot
8шт.
Выбрано товаров: 29
